| Place of Origin: | China |
| Brand Name: | CHITIAN |
| Certification: | ISO/CCC |
| Model Number: | CT890 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 pieces per month |
| Drive Wheel: | 6X4 | Horsepower: | 251 - 350hp |
|---|---|---|---|
| Transmission Type: | Manual | Fuel Type: | Diesel |
| Wheel Base: | 3650+1580mm | Engine: | WP12G430E31 |
| Capacity (Load): | 51 - 60t | Emission Standard: | Euro 3 |
| Highlight: | heavy duty tipper trucks,construction dump truck |
||

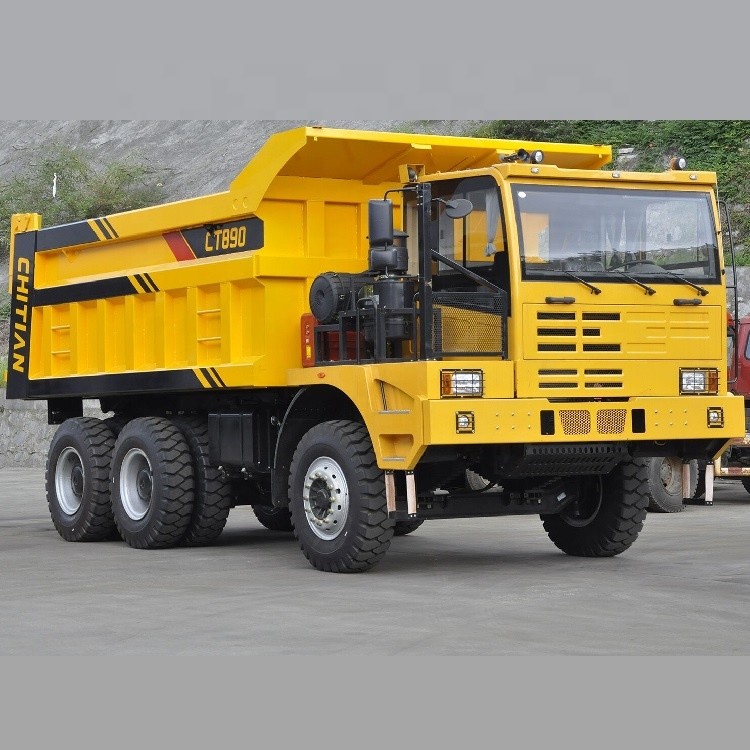

CT890 China Off-road Heavy Duty Mining Dump Truck 50 ton Euro 3
Product Description
- The Mining dump truck equipped with 500x240mm large brake shoes with the most reliable brake power, providing strong safety protection on complex industrial and mining construction sites.
- The bottom plate of the hopper adopts a reinforced five-span beam structure and angle steel is placed inside the hopper, the collision resistance is increased by more thanthree times.
- Standard wheeled deceleration cast steel double rear axle, large speed ratio, widened track, large speed ratio produces strong power, large track improves vehicle lateral stability, and adapts to various complicated and harsh road conditions.
- Fast gearbox and other internationally renowned transmission products are selected, which can show superior performance in complex construction sites.
- The reversible panoramic wide cab provides a spacious driving space, making driving more comfortable, a broader perspective.
- The reversible panoramic wide cab provides a spacious driving space, making driving more comfortable, a broader perspective.
- Increased strengthened brake air reservoir makes brake performance stronger and more flexible, higher safety.
- The reinforced thickened leaf spring provides a powerful guarantee for the vehicle's superior load capacity, reflecting the extraordinary stability.
- Exhaust gas heating device effectively prevents the freezing of cargo and hopper during the winter construction of the vehicle in the alpine region, which is convenient for dumping.
- Adopting special thicken steel rim and special tire for construction machinery.
- Scientific overall configuration greatly enhance the climbing ability of the vehicle. The gradeability up to 38% under fully loaded conditions.
- The standard configured Vehicles can have an attendance rate of up to 90% in the standard load condition.
Product Parameter
| Model | CT870 | CT890 | CT8100 |
| Drive Style | 6×4 | 6×4 | 6×4 |
| Curb Weight | 25200 | 27000 | 28000 |
| Rated loading capacity | 45000 | 53000 | 70000 |
| Rated Total Weight | 70000 | 80000 | 98000 |
| Length (mm) | 8680 | 8850 | 8800 |
| Width (mm) | 3150,3200 | 3350 | 3350 |
| Height (mm) | 3750 | 3800 | 4000 |
| Minimum ground clearance (mm) | 333 | 350 | 350 |
| Minimum turning radius (m) | 11.5 | 12 | 25 |
| Maximum climbing ability (%) | 36 | 35 | 36 |
| Approach angle / departure angle (°) | 27.5/45 | 27.5/45 | 27.5/45 |
| Wheelbase (mm) | 3560+1520 | 3650+1580 | 3650+1580 |
| Wheel distance (front/back) (mm) | 2550/2236 | 2731/2550 | 2727/2554 |
| Cab | Offset cab | Offset cab | Offset cab |
| Engine Model | WP12G430E31 | WP12G430E31 | WP12G430E31 |
| Displacement(L) | 11.596 | 11.596 | 11.596 |
| Rated power (kW/PS) | 316 | 316 | 316 |
| Maximum torque / speed (N.r / min) | 2060/(1000-1400) | 2060/(1000-1400) | 2060/(1000-1400) |
| Fuel tank / cylinder volume (L) | 450 | 350 | 350/420 |
| Tire Size | 13.00-25 | 14.00-25 | 14.00-25 |
Product Picture
Product Details
Production Process
