XCMG XE215C 21.5 ton Rc Hydraulic Crawler Excavator Machine Maximum Digging Depth 6655mm

XCMG XE215C 21.5 ton Rc Hydraulic Crawler Excavator Machine Maximum Digging Depth 6655mm

  • XCMG XE215C 21.5 ton Rc Hydraulic Crawler Excavator Machine Maximum Digging Depth 6655mm
  • XCMG XE215C 21.5 ton Rc Hydraulic Crawler Excavator Machine Maximum Digging Depth 6655mm
  • XCMG XE215C 21.5 ton Rc Hydraulic Crawler Excavator Machine Maximum Digging Depth 6655mm
  • XCMG XE215C 21.5 ton Rc Hydraulic Crawler Excavator Machine Maximum Digging Depth 6655mm
XCMG XE215C 21.5 ton Rc Hydraulic Crawler Excavator Machine Maximum Digging Depth 6655mm
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: XCMG
Certification: CE/ISO9001
Model Number: XE215C
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
Bucket Capacity: 0.8-1 Cubic Metres Rated Speed: 5.5/3.3 Km/h
Moving Type: Crawler Excavator Operating Weight: 21.5ton
Condition: New Maximum Digging Height: 9640mm
Maximum Digging Depth: 6655mm
High Light:

earth digging equipment

,

crawler hydraulic excavator

XCMG XE215C 21.5ton Chinese New Rc Hydraulic Crawler Excavator Machine



Product description



1,High-end configuration·Excellent performance

XE215C is suitable for earth and stone construction projects such as municipal construction, highway bridges, housing construction, road engineering, farmland water conservancy construction, port construction and so on, it has features of good flexibility and maneuverability, low fuel consumption, high construction efficiency, large digging force, comfortable driving environment and wide range of application.

2,New generation·Environmental·Energy-saving·Large power engine

New generation environmental engine is adopted in this machine, which has both excellent environmental performance and large power, matched with ow fuel consumption design, operating costs are significantly reduced, and fuel consumption is reduced by 10% or less compared to previous generation of machine.

With independently developed intelligent study-type control system in XE215C series, it can be matched efficiently and reasonably so that the resistance of hydraulic oil return system is greatly decreased, working efficiency reaches above 15% (compared with old model XE215C), which has the highest earthwork efficiency among similar models.

3,High quality·Enjoyable driving

(1) Driver’s cab

Brand new injection molding drive’s cab, advanced ergonomic design and sufficient provide the best working environment for operators.

(2) Precautions against vibration

Double glazing glass and liquid seal shock rubber are standard so that the noise is reduced to minimum (reduced by 6DB) and the fatigue of driver is effectively relieved.

(3) Air-conditioner

The air volume of new sir-conditioning system is increased by 23%, which brings better heating and cooling effect and more comfortable operation.

4,Firm and efficient·Durable

(1) Structural parts

With finite element analysis for structural parts and application of enhanced working devices, the reliability, durability, multi-mode adaptability are greatly improved. It has the bucket with largest capacity among the same type of models so that the efficiency of whole machine is greatly improved, meanwhile overall quality distribution is optimized with excellent stability.

(2) Carrier ang frame

The new butter pool structure strongly ensures lubrication environment of slewing mechanism so that its service life is greatly extended; oversize slewing bearing and carrier system bring the whole machine stronger adaptability in mine conditions and longer service life.

5,Convenient maintenance and service

Daily maintenance and repair points are at your fingertips, no matter fuel filter or oil filter, they all can be maintained directly standing on the ground, with easy operation, efficient maintenance operations can be realized effectively.

6,Optional

The adoption of advanced concepts such as unified design platform, it can quickly and easily switch multiple machines and tools to broaden application field of the machine.



Product parameter



  Model Parameters
Engine Model ISUZU CC-6BG1TRP
Equipped Electronic fuel injection
Four strokes
Water cooling
Turbo-charging
Air to air intercooler
No. of cylinders 6
Output power 128.5/2100 kW/rpm
Torque/speed 637/1800 N.m/rpm
Displacement 6.494 L
Operation Weight 21900 kg
Bucket Capacity 0.9—1.0 m ³
Main performance Travel speed(H/L) 5.5/3.3 km/h
Rotating speed 13.3 r/min
Gradeability ≤35°
Ground pressure 47.2 kPa
Bucket digging force 149 kN
Arm digging force 111 kN
Maximum traction 184 kN
Hydraulic system Main pump 2 plunger pumps
Rated flow of main pump 2×209 L/min
Pressure of prime valve 34.3/37.0 Mpa
Pressure of travel system 34.3 Mpa
Pressure of swing system 28 Mpa
Pressure of pilot system 3.9 Mpa
Oil capacity Fuel tank capacity 400 L
Hydraulic tank capacity 220 L
Engine oil capacity 25 L
Appearance size Overall dimensions(L*W*H) 9625×2990×3100 mm
Width of platform 2830 mm
Length of crawler 4225 mm
Overall width of chassis 2990 mm
Width of chassis 600 mm
Track length on ground 3462 mm
Crawler gauge 2390 mm
Clearance under counterweight 1050 mm
Min. ground clearance 485 mm
Min. tail swing radius 2890 mm
Working scope Max. digging height 9620 mm
Max. dumping height 6780 mm
Max. digging depth 6680 mm
Excavation depth of 8 feet level 6500 mm
Max. vertical wall digging depth 5715 mm
Max. digging reach 9940 mm
Min. swing radius 3530 mm
Standard Boom length 1680 mm
Arm length 2910 mm
Bucket Capacity 1.0 m ³
Optional Arm length 5680 mm
Bucket Capacity 1.0 Earth working bucket
0.9 Rock bucket

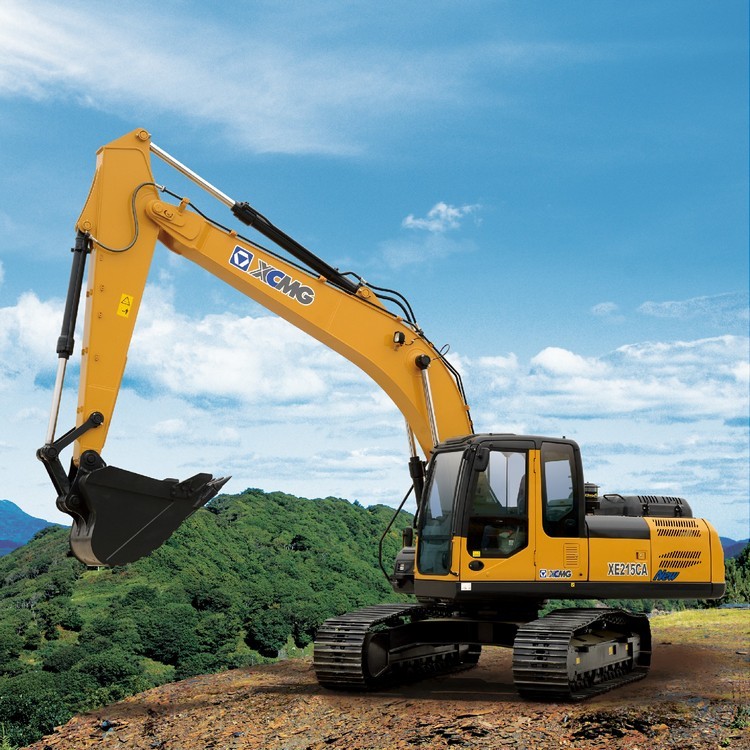

Product photo
