Euro 3 Emissions FAW J6P Lorry - Mounted Crane Truck CA5310JSQP63K1L6T4E5

Euro 3 Emissions FAW J6P Lorry - Mounted Crane Truck CA5310JSQP63K1L6T4E5

  • Euro 3 Emissions FAW J6P Lorry - Mounted Crane Truck CA5310JSQP63K1L6T4E5
  • Euro 3 Emissions FAW J6P Lorry - Mounted Crane Truck CA5310JSQP63K1L6T4E5
  • Euro 3 Emissions FAW J6P Lorry - Mounted Crane Truck CA5310JSQP63K1L6T4E5
Euro 3 Emissions FAW J6P Lorry - Mounted Crane Truck CA5310JSQP63K1L6T4E5
Product Details:
Place of Origin: China
Brand Name: FAW
Certification: ISO/CCC
Model Number: CA5310JSQP63K1L6T4E5
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Nagotiation
Packaging Details: Nude
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 500/piece/month
Contact Now
Detailed Product Description
Max. Lifting Height:: 28m Max. Lifting Load:: 5 Ton
Total Mass(kg):: 6600 Span:: 7.6m
Chassis:: CA5310JSQP63K1L6T4E5 Drive Type:: 4x2
High Light:

truck mounted hydraulic crane

,

telescopic boom truck mounted crane

CA5310JSQP63K1L6T4E5 Euro 3 Emissions FAW J6P Lorry-Mounted Crane Truck



Product Description:



Crane type SQ12SA3(12 tons four quarter straight arm)
Maximum lifting mass t 12
Maximum lifting moment T.M 30
Section form Pentagon Rotary mechanism Rotation speed r/min 2
Number of nodes 4 (stretch three knots) Gyration range 360(Arbitrarily)
Length m 5.4-15.6

Leg



Type H type leg
Maximum operating radius m 15.45 Span M 2.2-5.9
Extension speed m/s 0.19

Hydraulic system



System pressure Mpa 21
Range of variation (degree) 1-72 Fuel tank volume L 150
Arm angle velocity /s 3.2 Safety device Over coil alarm
Maximum lifting height M 17 Self weight kg 4000
Lifting speed of hook 8m/min Installation space 1250mm
Diameter of wire rope mm 12 Matching truck Trucks weighing 14 tons or more
Length of wire rope M 115
Lifting capacity comparison table
Working radius m 2.5 3 4.5 5.5 6 8.5 9 11.5 15.4
Rated load kg 12000 9890 6330 5130 4600 2660 2350 1420 700



Description:



Boom Truck Crane Constantly optimize the boom section, completely releasing the carrying capacity of the plates, which makes the lifting more reliable and safer.Compact boom head .Extend the jib length, which can extend the working radius to the most.Hydraulic pipeline.The pipeline adopts high-precision cold drawing steel pipe, matching with the cutting ferrule, which is good looking and easy to maintain.Operating cab.

Boom Truck Crane has large space and wide views. The control levers and instrument buttons are at hand.

Torque limiter



Packing:



1.The main machine nude, attached parts and tools put into standard export box
2.Within 20 days deliver the goods to main Port
3. Ro-Ro ship or bulk ship or according to customer requiring
4.We have professional forwarding partners



Advantages:



1. Supplying quick-wearing parts at the truck delivery.

2. Good quality parts produced by the truck manufacturing factory.

3. Only charge cost price for customer convenience.

4.Specialization ,standard and accurate meet your requirement.

5. The price is competitive.

6.Excellent and high-quality control

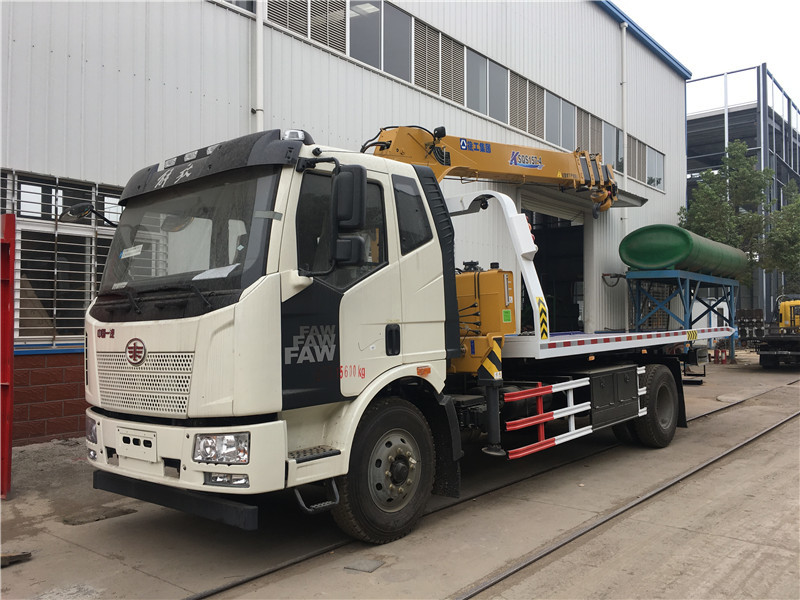

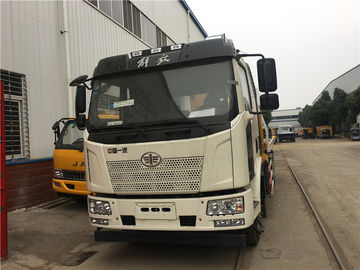

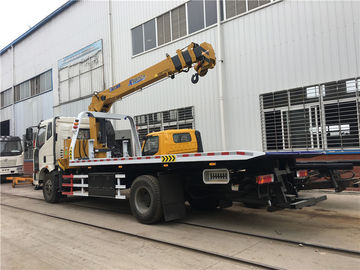

Product Pictures :



Euro 3 Emissions FAW J6P Lorry - Mounted Crane Truck CA5310JSQP63K1L6T4E5 0Euro 3 Emissions FAW J6P Lorry - Mounted Crane Truck CA5310JSQP63K1L6T4E5 1
