| Place of Origin: | China |
| Brand Name: | HBXG |
| Certification: | CE/CCC |
| Model Number: | SD7N |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 pieces per month |
| Machine Weight:: | 24300kg | Min. Ground Clearance:: | 404mm |
|---|---|---|---|
| Ground Pressure:: | 71.9Kpa | Dimension(Long * Breadth * High):: | 5982X3500X3402 |
| Engine Power:: | 230HP | Moving Type:: | Crawler Bulldozer |
| High Light: | earth digging equipment,crawler hydraulic excavator |
||
HBXG SD7N 230HP Engine Crawler Bulldozer With 404mm Min. Ground Clearance
Product Overview
1.The extended track ensures low ground pressure, high reliability and strong traction, contributing to precise operation;
2. The power shift transmission not only ensures smooth power shift, but also reaches target speeds and carries out directional transfers with a single control lever;
3. The wet steering clutch and brake can extend service life. They work interactively, ensuring quick and flexible steering operations;
4. The single control lever can control all blade actions;
5. The drift sealing in the drive wheel, track roller and carrier roller can prevent dust from entering the track system, as well as lubricant leakage, thereby ensuring a long service life;
6. The hexahedron cab features wide visibility, and the insulation materials in the cab can reduce noise and vibrations;
7. The spin type fuel filter and dust separator, the air filters and the other filtration devices can prolong work time and reduce service time;
8. The comfortable cab seat can adjust upward and downward, forward and backward, meeting any positional needs the operator may have;
9. Side engine operation and the combination of a drive/brake operation system and foot brake makes overall operation of the bulldozer more rapid and convenient.
FAQ
1.Why chose you?
Product paremeters
Dozer Tilt
(not including ripper) Operation weight (Kg) 24300
Ground pressure(KPa) 71.9
Track gauge(mm) 1980
Gradient 30°/25°
Min. ground clearance (mm) 404
Dozing capacity (m³) 8.4
Blade width (mm) 3500
Max. digging depth (mm) 498
Overall dimensions (mm) 5982×3500×3402
(Including ripper) 7616×3500×3402
Engine
Type CUMMINS NT855-C280S10
Rated revolution (rpm) 2100
Flywheel power (KW/HP) 169/230
Max. torque (N•m/rpm) 1097/1500
Rated fuel consumption(g/KW•h) ≤235
Undercarriage system
Type The track is triangle shape.
The sprocket is elevated elastic suspended.
Number of track rollers (each side) 7
Pitch (mm) 216
Width of shoe (mm) 560
Gear 1st 2nd 3rd
Forward (Km/h) 0-3.9 0-6.5 0-10.9
Backward (Km/h) 0-4.8 0-8.2 0-13.2
Implement hydraulic system
Max. system pressure (MPa) 18.6
Pump type High perssure gears pump
System output(L/min) 194

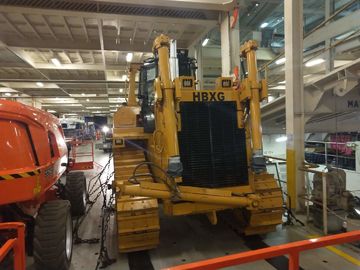

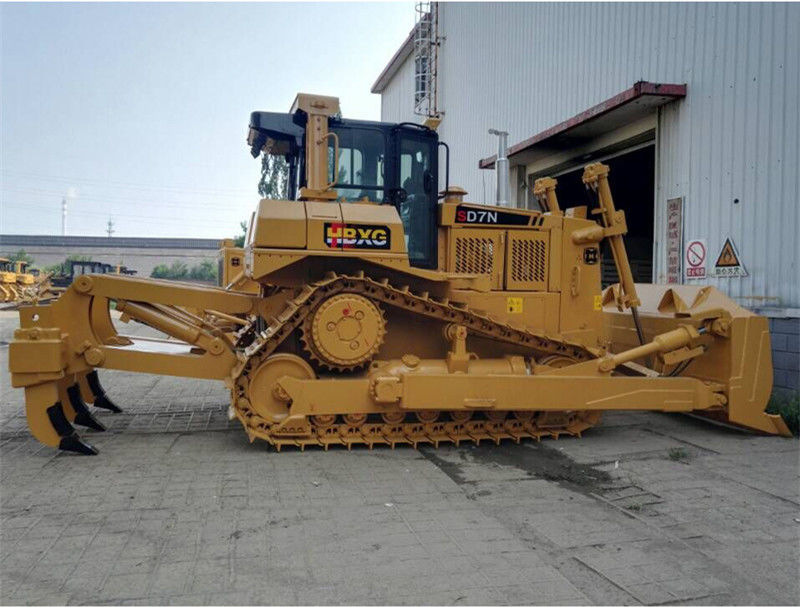

Product pictures
