| Place of Origin: | China |
| Brand Name: | XCMG |
| Certification: | CE/ISO |
| Model Number: | SQ5SK3Q |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 untis per month |
| Max. Lifting Height: | 12.5m | Feature: | Truck Crane |
|---|---|---|---|
| Rated Lifting Moment: | 12.5T.M | Span: | 5100mm |
| Condition: | New | Rated Loading Capacity: | 5000kg |
| Max. Lifting Load: | 5000kg | Model Number: | SQ5SK3Q |
| High Light: | truck mounted hydraulic crane,telescopic boom truck mounted crane,4×2 5 ton truck mounted crane |
||
XCMG SQ5SK3Q China Mobile Crane 5 Ton Truck Mounted Crane Telescoping Boom Crane
Product description
1. Throttle Control System
Changing the form of previous manipulation and throttle operation individually,Realization of the bilateral handle synchronous and driving throttle acceleration and deceleration automatically, due to the speed change steady,it can easily to carry out the lifting work.
2. End position automatic hook device
Maximum savings in preparation time before and after operation, to ensure that customer’s vehicle could be in a driving state in the shortest time, and prevent crane damage accident caused by hoist swing to enhance the safety of driving.
3. Hoisting overwinder device
If a user is negligent or unfamiliar with the operation of lifting hooks,the hoisting overwinder device will stop hook raise in time, to prevent the safety of personal and property caused by fracture of wire rope.
4. Slewing locking device
Slewing locking device can ensure that the lifting arm does not sway because of the centrifugal force during the driving and steering process of the vehicle,to avoid all kinds of accidents caused by swaying.
5. Torque limiter
It can select torque limit overload protection device to prevent users because of negligence or unfamiliar with the lifting operation principle of overload operation, thereby causing the vehicle rollover and crane damage accidents.
specification
| Chassis Information | |
| Vehicle Name | 5T Truck Mounted Crane |
| Chassis brand | Dongfeng |
| Chassis model | EQ5160GKJ1 |
| Drive type | 4×2 |
| Dimension Parameter | |
| Overall dimension (L*W*H) (mm) | 9000*2500*3700 |
| Cargo dimension (L*W*H) (mm) | 5300*2294*550 |
| Front / Rear suspension (mm) | 1205/2650 |
| Wheel base (mm) | 5100 |
| Wheel No. | 2 |
| Front / Rear track (mm) | 1940/1860 |
| Weight Parameter | |
| GVW (kg) | 16000 |
| Payload weight (kg) | 8000 |
| Kerb weight (kg) | 8000 |
| Front / Rear axle (T) | 5T / 10T |
| Engine Parameter | |
| Model | B190 33 |
| Manufacturer | Dongfeng Cummins |
| Horsepower (hp) | 190 |
| Displacement / power (ml/kw) | 5900/140 |
| Emission Standard | Euro III |
| Transmission | |
| Control type | manual |
| Gear Shift | 8 forward and 1 reverse speeds |
| Tyre | |
| Type | 10.00R20 |
| Tyre No. | 6+1 spare tyre |
| Cab | |
| Type | flat roof cab, blue color |
| 5T Telescoping Boom Crane Specification | |
| Crane Model:SQ5SK3Q | Max Lift Capacity: 5000kg |
| Max Lift Momment: 12.5T.M | Power Recommended: 18kw |
| Max Flow of Hydraulic System: 32L/Min | Rated Pressure of Hydraulic System:18MPA |
| Oil Tank Capacity: 90L | Slewing Angle: All Rotation |
| Crane Weight: 2170kg | Installation Space: 900mm |
| Lifting height: 12.5m | working radius: 11m |

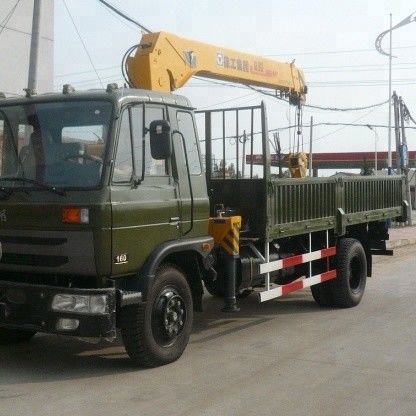

Product picture
