| Place of Origin: | China |
| Brand Name: | SHANTUI |
| Certification: | ISO |
| Model Number: | SD32 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | Shipped in 30 days after payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Unit/Units per Year |
| Machine Weight:: | 37200kg | Model Number:: | SD32 |
|---|---|---|---|
| Moving Type:: | Crawler Bulldozer | Displacement:: | 335.5L/min |
| Dimension(Long * Breadth * High):: | 8650x4130x3725 | Power Type:: | Diesel |
| High Light: | dirt moving equipment,crawler hydraulic excavator |
||
320HP SD32 China SHANTUI Brand New Crawler Bulldozer With 335.5L/min Displacement
Product Description
The SD32 provides a showcase for Shantui’s prowess with high-efficiency push factors. These medium-sized, but heavy-duty machines designed for earth-moving projects get the biggest, toughest jobs done quickly and efficiently. SD32s are equipped with a hydraulic drive system with hydraulic control technology and an advanced structure, which provide reliable performance and convenient and flexible operation.
Packing:
Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.Rich experience and well after-sale service.
FAQ
Q: I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres, is it ok?
A: We can make the tyres as your requirement to suit your country's need.
Q:How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q:I want to be your agent in my country , is that ok?
A:It’s ok, If your quantity is big, we will consider. For the first time 50 units is ok.
Q:How to maintain the trucks?
A:Every day to lubricate the truck, because the working condition is dusty. And you have to change engine oil and air filter when the trucks arrive at about 8000-10000km or 400-500 hours.
Q:Do you have oversea after-sale service?
A:When you have some problems which you can’t solve. we will arrange our engineers to your country to help you.
Product parameter
| SD32 SHANTUI BRAND BULLDOZER | ||||
| Model | SD32 | |||
| Brand | SHANTUI | |||
| Type | BULLDOZER MACHINERY | |||
| Engine | Brand | CUMMINS-diesel | ||
| Model | NTA855-C360 | |||
| Emission | Euro III | |||
| Engine type |
Turbocharged, intercooled, in line , 4-cycle |
|||
| Number of cylinders | 6 | |||
| Max. output | 320hp@2000rpm | |||
| Piston displacement | 14010ml | |||
| Bore/Stroke(mm) | 139.7*152.4 | |||
| Max torque | 1440N.m | |||
| Fuel consumption | 245g/kw.h | |||
| Start motor | 24V, 11kw | |||
| Alternator | 28V, 35A | |||
| Battery | 24V(12V*2)—195AH | |||
| Fuel system |
PT pump head valve direct injection |
|||
| Governor | Centrifugal , all speed governor | |||
| Cooling system |
Forced circulation by centrifugal pump, busher tyre fan |
|||
| Air cleaner |
Dry, horizontal type with air cleaner |
|||
|
Travel Speed
|
1st | Forward (km/h) | 0-3.6 | |
| Reverse (km/h) | 0-4.4 | |||
| 2nd | Forward (km/h) | 0-6.6 | ||
| Reverse (km/h) | 0-7.8 | |||
| 3rd | Forward (km/h) | 0-11.5 | ||
| Reverse (km/h) | 0-13.5 | |||
|
Working Equipment and Attachment
|
Dozer |
Straight-tilt: Hydraulically actuated with servo valve |
||
|
Blade supporting method |
Brace type tilt cylinder on right side |
|||
| Blade width(mm) | 4130 | |||
| Blade height(mm) | 1590 | |||
|
Max.lift above ground (mm) |
1560 | |||
|
Max.drop below ground (mm) |
550 | |||
|
Max.tilt adjustment (mm) |
1000 | |||
|
Transmitting System
|
Torque converter |
Torque converter, 3-element, 1-stage,1-phase |
||
| Cooling method | Water-cooled | |||
| Transmission |
Planetary gear, multiple –disc clutch , hydraulically connected forced lubrication by gear pump |
|||
| Main-drive shaft |
Spiral bevel gear , Splash lubrication |
|||
| Final Drive | 2-stage spur gear, speed reduction, splash lubrication | |||
|
Steering System
|
Steering Clutch |
Wet type, multi-disc, spring loaded, hydraulically separated , hand and hydraulic control operated. |
||
| Steering brake |
Wet type, band brake, foot operated (with hydraulic booster , interconnected with clutch) |
|||
|
Undercarriage System |
Suspension |
Swing type of sprayed beam, suspended structure of equalizer bar |
||
|
No of Carrier rollers (each side) |
Two | |||
|
No of Track rollers (each side) |
Seven | |||
| No of Idler(each side) | One | |||
| Track Shoe | Assembled type | single tooth | ||
| Pitch | 228.6mm | |||
| Width | 560mm | |||
| Tooth height | 80mm | |||
| No of track shoes | 41 (each side) | |||
| Track gauge | 2140mm | |||
| Ground pressure | 0.105Mpa | |||
|
Hydraulic Control System
|
Max.preesure | 14MPa | ||
| Pump type | Gear pump | |||
| Displacement | 335.5L/min | |||
| Control valve type | Guiding valve | |||
| Hydraulic tank |
Control valve and oil filter inner-installed type |
|||
|
Coolant & Lubricant Capacity
|
Cooling water: | 121L | ||
| Fuel tank | 600L | |||
| Engine | 47L | |||
| Bevel gear case | 185L | |||
| Final drive case(each side) | 55L | |||
| Hydraulic tank | 164L | |||
| Weight | Operating weight | 37200kg | ||
| With multi-ripper | 40975kg | |||
| Dimension | Length x Width x Height |
6880x4130x3725 mm (without ripper) |
||
| Length x Width x Height |
8650x4130x3725 mm (with ripper) |
|||

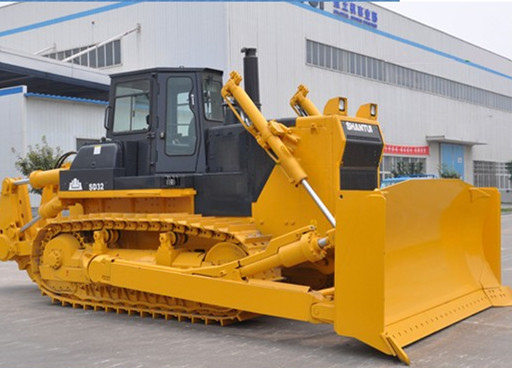

Product picture
