18460kg SHANTUI Crawler Bulldozer For Construction Machinery SD16 With 2300mm Track Center Distance

18460kg SHANTUI Crawler Bulldozer For Construction Machinery SD16 With 2300mm Track Center Distance

  • 18460kg SHANTUI Crawler Bulldozer For Construction Machinery SD16  With 2300mm Track Center Distance
  • 18460kg SHANTUI Crawler Bulldozer For Construction Machinery SD16  With 2300mm Track Center Distance
  • 18460kg SHANTUI Crawler Bulldozer For Construction Machinery SD16  With 2300mm Track Center Distance
18460kg SHANTUI Crawler Bulldozer For Construction Machinery SD16  With 2300mm Track Center Distance
Product Details:
Place of Origin: China
Brand Name: SHANTUI
Certification: ISO/CCC
Model Number: SD16
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 500 units per month
Contact Now
Detailed Product Description
Machine Weight:: 18460kg Dimension(Long * Breadth * High):: 5140*3388*3024
Minimum Ground Clearance:: 400mm Track Center Distance:: 2300mm
Condition:: New Moving Type:: Crawler Bulldozer
High Light:

dirt moving equipment

,

earth digging equipment

SHANTUI Crawler Bulldozer For Construction Machinery SD16 With 2300mm Track Center Distance



Product description



1.Weichai WD10G178E25 features the advantages of robust power, easy maintenance, and high combustion efficiency and conformed to China-II emission regulation.
2.The planetary power shift transmission with forced lubrication and the hydraulically assisted steering system achieve light operations of the machine and feature high transmission power and high productivity.
3.The closed system maintains the water tank pressure at specific value and can improve the evaporation temperature and heat dissipation efficiency of coolant.
4.The fan is driven by the engine to enhance the cooling effect with forced air supply.
5.The mainstream 14MPa working hydraulic system is adopted to remarkably reduce the malfunction rate of hydraulic units, featuring high operation stability and overload protection function.
6.The application of water-proof connectors, new relays, and injection molded instruments can effectively eliminate the electric system malfunctions. The instrument box integrates the A/C, electric devices, and instruments, featuring beautiful appearance and high grade.
7.The full box-type main frame adopts full box-type integral structure welded from steel plates and is welded together with the real axle housing to realize high carrying capacity against impact load and bending moment and the high quality welds guarantee the life cycle of the main frame.
8.The swing type balance beam suspension structure with splayed beam is connected with the frame and traveling system to transmit the working load and impact load to the main frame during working, which effectively improves the stability of small-sized bulldozers under complicated working conditions.
9.The standard straight tilting blade features powerful cutting force and the three-shank ripper can be used for the ripping of clay and frozen earth, featuring high working efficiency and super-strong penetrating force.



Parameter



Towing wheel (one side) 2
Number of supporting wheels (one side) 7
Crawler type

Assembled arc triangular teeth



Crawler board width 1100(950)mm
Track Grounding Length 2935mm
Running speed
Forward speed of each gear (km/h) 0-3.29
0-5.82
0-9.63
Back each gear speed (km/h) 0-4.28
0-7.59
0-12.53
Hydraulic system
Maximum working oil pressure 14MPa
Oil pump type gear pump
flow 213L/min
Scraper lifting cylinder Internal Diameter*Quantity 110*2
Scraper inclined cylinder Internal Diameter*Quantity 160*1
Engine
Engine Model WP10G178E355
engine type Water cooling, in-line, four-stroke, EFI, pressurized intercooling
Rated power 131kw
Rated speed 1850r/min
Cylinder number - cylinder diameter * stroke 6-126*130mm
The piston displacement 9.726L
Minimum fuel consumption 215g/kw.h
Maximum torque 830/1000-1200N.m/rpm
Water tank capacity 62.8L
Tank capacity 315L



Advantages



1.The extended track ensures low ground pressure, high reliability and strong traction, contributing to precise operation;
2. The power shift transmission not only ensures smooth power shift, but also reaches target speeds and carries out directional transfers with a single control lever;
3. The wet steering clutch and brake can extend service life. They work interactively, ensuring quick and flexible steering operations;
4. The single control lever can control all blade actions;
5. The drift sealing in the drive wheel, track roller and carrier roller can prevent dust from entering the track system, as well as lubricant leakage, thereby ensuring a long service life;
6. The hexahedron cab features wide visibility, and the insulation materials in the cab can reduce noise and vibrations;
7. The spin type fuel filter and dust separator, the air filters and the other filtration devices can prolong work time and reduce service time;
8. The comfortable cab seat can adjust upward and downward, forward and backward, meeting any positional needs the operator may have;
9. Side engine operation and the combination of a drive/brake operation system and foot brake makes overall operation of the bulldozer more rapid and convenient.

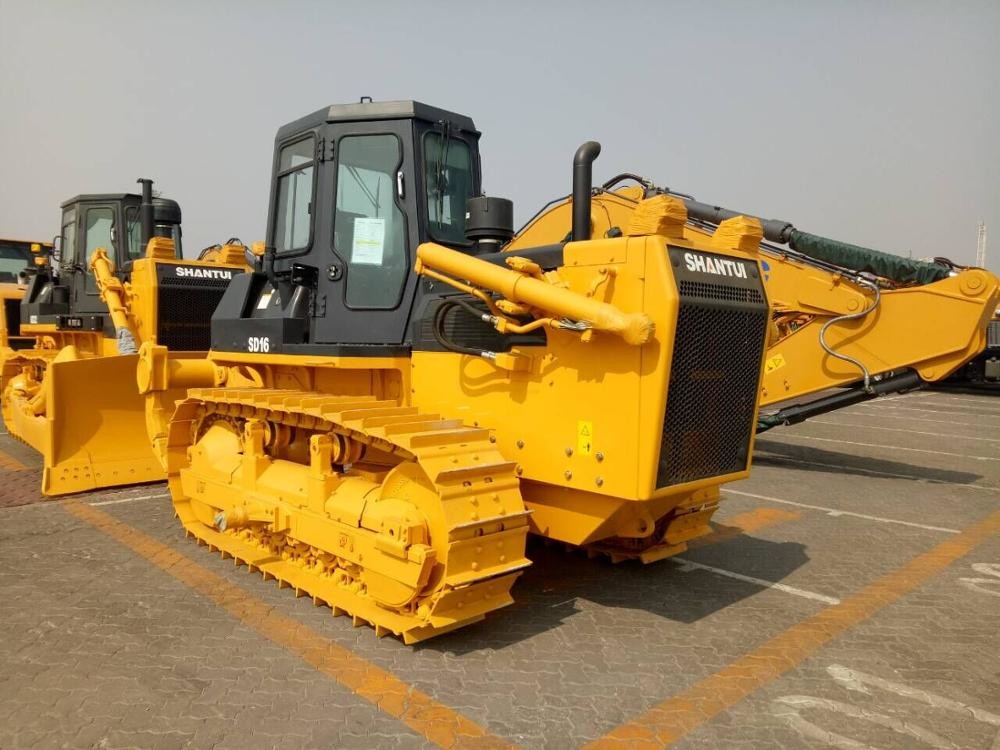

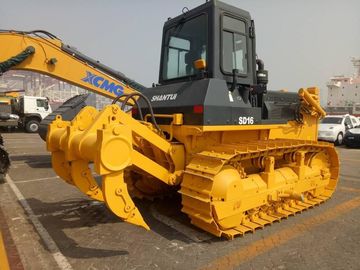

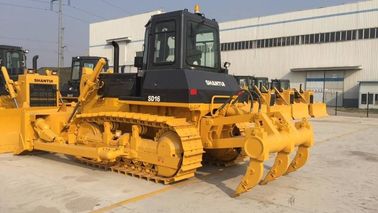

Product picture



18460kg SHANTUI Crawler Bulldozer For Construction Machinery SD16  With 2300mm Track Center Distance 018460kg SHANTUI Crawler Bulldozer For Construction Machinery SD16  With 2300mm Track Center Distance 1
