Sinotruk HOWO Mining Dump Truck 70T Load Capacity 6X4 Drive 420HP

Sinotruk HOWO Mining Dump Truck 70T Load Capacity 6X4 Drive 420HP

    • Sinotruk HOWO Mining Dump Truck 70T Load Capacity 6X4 Drive 420HP
    • Sinotruk HOWO Mining Dump Truck 70T Load Capacity 6X4 Drive 420HP
    • Sinotruk HOWO Mining Dump Truck 70T Load Capacity 6X4 Drive 420HP
    • Sinotruk HOWO Mining Dump Truck 70T Load Capacity 6X4 Drive 420HP
    • Sinotruk HOWO Mining Dump Truck 70T Load Capacity 6X4 Drive 420HP
  • Sinotruk HOWO Mining Dump Truck 70T Load Capacity 6X4 Drive 420HP

    Product Details:

    Place of Origin: Shandong,China
    Brand Name: SINOTRUK
    Certification: ISO9001
    Model Number: ZZ5707V4040CJ

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: packed in nude
    Delivery Time: 30-45days
    Payment Terms: L/C, T/T
    Supply Ability: 500sets per month
    Contact Now
    Detailed Product Description
    Keywords: Mining Dump Truck Drive Wheel: 6X4
    Engine: D12.42T2,420HP Capacity Load: 61-70t
    Emission Standard: Euro 2 Fuel Type: Diesel
    High Light:

    heavy duty tipper trucks

    ,

    construction dump truck

    Sinotruk HOWO 70T Load Capacity 6X4 Drive 420HP Mining Dump Truck

    Product Specification


    Representative vehicle modelZZ5707V4040CJ




    Cab


    ModelHW7D



    Type

    Sketch covering, grand view and single side reinforced mine truck
    dedicated cabCab. Suspension is helical spring with shock absorber , air conditioner and heater.
    High Steel Bumper



    Engine

    ModelD12.42T2,420HP,EURO II
    Displacement11.596L
    TypeSix cylinders inline,two valve,supercharge postposition,supercharge intercooler
    Clutchstandard 430A pull-type diaphragm spring Clutch,Hydraulic control air assisted.


    Transmission

    HW21712,Transmission with main and auxiliary transmission structure,main transmission with double counter shaft,auxiliary transmission with
    planetary reduction .with HW70 PTO.


    Front Axle

    HF12 one-piece-casting I beam rigid boxing-style mine dedicated front axle


    Drive Axle

    AC26 double reduction (central reduction+wheel reduction),one-piece-casting axle housing,with wheel and interaxle differential lock,speed ratio:10.47,Optional8.51
    Suspensionfront and rear leaf spring suspension,rear Suspension is integral type equalizing suspension
    Steering System ZF,steeringbox,ZF steering pump and steering reservoir


    Breaking System

    Service brake:dual- circuit air pressure brake,parking brake:spring storage energy without air,auxiliary brake:Engine exhaust braking



    Electrical System

    Single wire system,negative earth,voltage:24V;generator:1540w;starter:7.5KW;battery:12V/
    180Ah;2 pieces,Engine air inletel ectric heating.

    Tyre

    14.00-25,with one spare tire


    Tank volume LD-shape 500L
    Kerb weight Kg26000
    Gross Mass Kg 70000
    Rated load Kg 44000
    External dimensions(length x width x height)mm8800x3600x4100
    Wheelbase mm4000+1500
    Front/rear overhang mm 1500/1000
    Wheel track(front/rear) mm2741/2520
    Minimum ground clearance (nuder front axle) mm340
    Approach/departure angle .32/40
    Maximum speed km/h50
    Max climbing ability %42
    Minimum turning diameter m22
    Dump box size (length x width x height) mm5800 x 3150 x 1800
    Thickness Botto 14 mm;Side 12 mm
    Dump box volume m333


    Product Description


    HOWO 70 Mining Dump Truck is heavy concentrated engineering design personnel and development, first and foremost applies to all kinds of open pit coal mine, steel mills, hydropower construction, dock, poor road conditions, homework is in bad situations in areas within a short distance transport business development of this car, in terms of the particular user groups, with high economic benefit and social benefit.


    Competitive Advantage

    1) all kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight , high rigidity , high loading capacity
    2) using the high strength steel, make it has a long service life
    3) The front lifting type domestic advanced hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
    4) excellant apperance of cabin, safety, reliable
    5) low fuel consumption
    6) strong enough engine
    7) with all kinds of truck model, which can fulfil your requirements
    8) the key parts adopt the world's top technology products
    9) based on strong technical support and top level technology make the trucks with high quality and more reliable
    10) competive price, cost-effective
    11) quick and efficient spare parts supply bring you more convenient
    12) fast delivery time, we can arange production according to your needs exactly and quickly
    13) professional import and export dealing precedure, make customs clearance more high efficiency

    Product picture

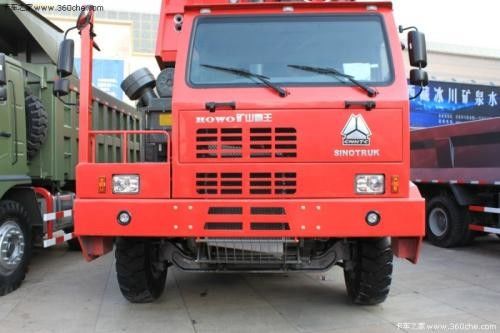

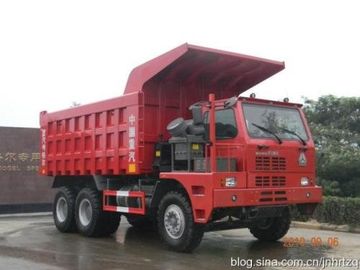

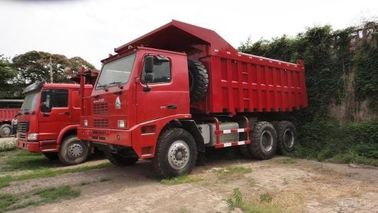

    Sinotruk HOWO Mining Dump Truck 70T Load Capacity 6X4 Drive 420HP 0
    Sinotruk HOWO Mining Dump Truck 70T Load Capacity 6X4 Drive 420HP 1
    Sinotruk HOWO Mining Dump Truck 70T Load Capacity 6X4 Drive 420HP 2

    Sinotruk HOWO Mining Dump Truck 70T Load Capacity 6X4 Drive 420HP 3
