ZZ5707S3840AJ 50 Ton Mining Dump Truck With HW21712 Transmission

ZZ5707S3840AJ 50 Ton Mining Dump Truck With HW21712 Transmission

    • ZZ5707S3840AJ 50 Ton Mining Dump Truck With HW21712 Transmission
    • ZZ5707S3840AJ 50 Ton Mining Dump Truck With HW21712 Transmission
    • ZZ5707S3840AJ 50 Ton Mining Dump Truck With HW21712 Transmission
    • ZZ5707S3840AJ 50 Ton Mining Dump Truck With HW21712 Transmission
  • ZZ5707S3840AJ 50 Ton Mining Dump Truck With HW21712 Transmission

    Product Details:

    Place of Origin: JINAN CITY OF CHINA
    Brand Name: SINOTRUK HOWO
    Certification: ISO9001
    Model Number: ZZ5707S3840AJ

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 UNIT
    Price: Negotiable
    Packaging Details: Nude
    Delivery Time: 30-45 work days
    Payment Terms: L/C, T/T
    Supply Ability: 500 units/month
    Contact Now
    Detailed Product Description
    Model Number:: ZZ5707S3840AJ Transmission:: HW21712
    Emission Standard:: Euro 2 Transmission: HF12
    Rear Axle:: AC26 Wheelbase:: 3800+1500mm
    High Light:

    diesel dump truck

    ,

    sinotruk howo dump truck

    ZZ5707S3840AJ Sinotruk HOWO 50 ton Mining Dump Truck With HW21712 Transmission



    Description:



    HOWO Mine Overlord is a heavy-duty mining self-dumping truck produced based on CNHTC Mine Overlord for various open pits, steel works, water and power supply construction sites and harbors, braving poor roads and harsh working environment for short distance transport, especially suitable for mining and rock excavation.The chassis features in high strength skeleton cover, single side cab, high-power diesel engine and low temperature heating device convenient for starting and cab heating in winter.The upper structure is made of high quality 16Mn and high tensile steel plate locally. The bottom plate consists of 7 longitudinal beams, very high in loading capacity.The cab shield is in streamline design effectively protecting the cab for safety. The whole vehicle is rational in structure and high in impact resilience. Hova172 system is known for high lifting power, stable and reliable.



    Packing:



    Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.Rich experience and well after-sale service.



    Our advantages:



    1. IS9000, 3C and TS16949 certificate

    2. High quality and competitive price

    3. Professional technology

    4. MAN/STERY driving axle

    5. HOWO400L, D-Aluminum alloy fuel tank

    6. Strong chassis for rough road

    7. The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.



    Main Discription:



    Truck Type

    70 ton mine dump truck

    Truck Model

    ZZ5707S3840AJ

    Truck Brand

    SINOTRUK—HOWO

    Driving Type

    Left Hand Driving Optional

    Dimension(Lx W x H)(unloaded)

    8600x3400x3450

    Cargo body size (L*W*H, mm)

    5800*2800*1500

    Cargo body Thickness(mm)

    bottom:16mm, side:10mm

    Lifting System

    front side lifting

    Approaching angle/Departure angle



    32/40

    Overhang(front/rear) (mm)

    1500/1000

    Wheel base (mm)

    3800+1500

    Max speed(km/h

    50

    Curb weight(kg)

    29700

    Loading Weight(kg)

    50000

    Engine



    WD615.47T2

    water-cooled

    four strokes

    6 cylinders in line with water cooling

    turbocharged and inter cooling directly injection

    Diesel

    371HP

    Fuel tanker capacity (L)

    500L

    Clutch

    Single-plate dry clutch Φ430mm

    Transmission

    HW21712

    Steering system



    8118

    hydraulic steering with power assistance

    Front axle

    HF12

    Rear axle

    AC26

    Color

    Optional

    Tire

    14.00-25

    10 +1(spare)

    Cab

    HW7D (with air-condition)

    Unilateral cab

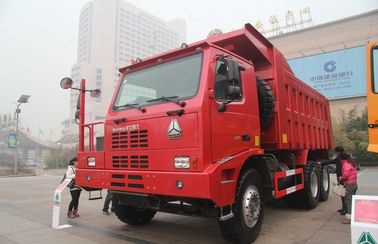

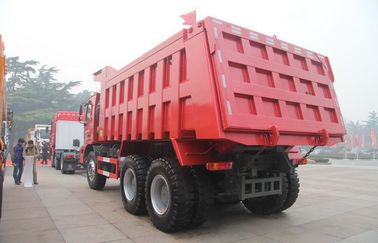

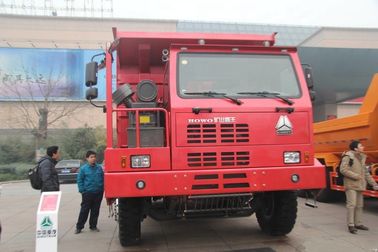

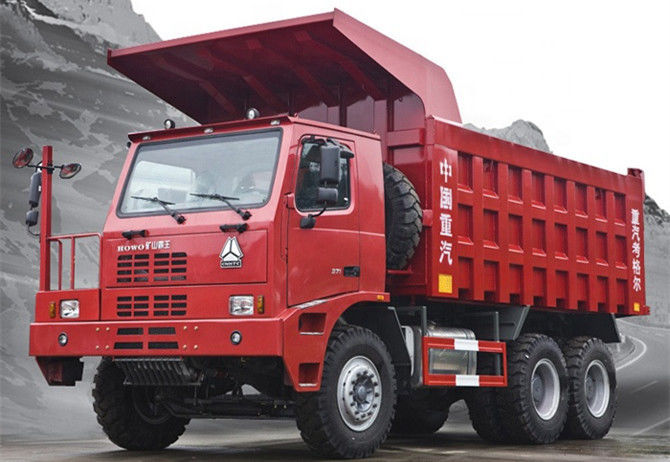

    Reference pictures:



    ZZ5707S3840AJ 50 Ton Mining Dump Truck With HW21712 Transmission 0ZZ5707S3840AJ 50 Ton Mining Dump Truck With HW21712 Transmission 1
