|Place of Origin:||CHINA|
|Brand Name:||SINOTRUK HOWO|
|Minimum Order Quantity:||1 piece|
|Delivery Time:||35 work days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||100 units/ month|
|Drive Wheel::||6x4||Dimension::||8545x3326x3560 Mm|
|Driving Side::||RHD||Gross Vehicle Weight::||70000kg|
|Emission Standard::||Euro II||Fuel Type::||Diesel|
diesel dump truck,
sinotruk howo dump truck

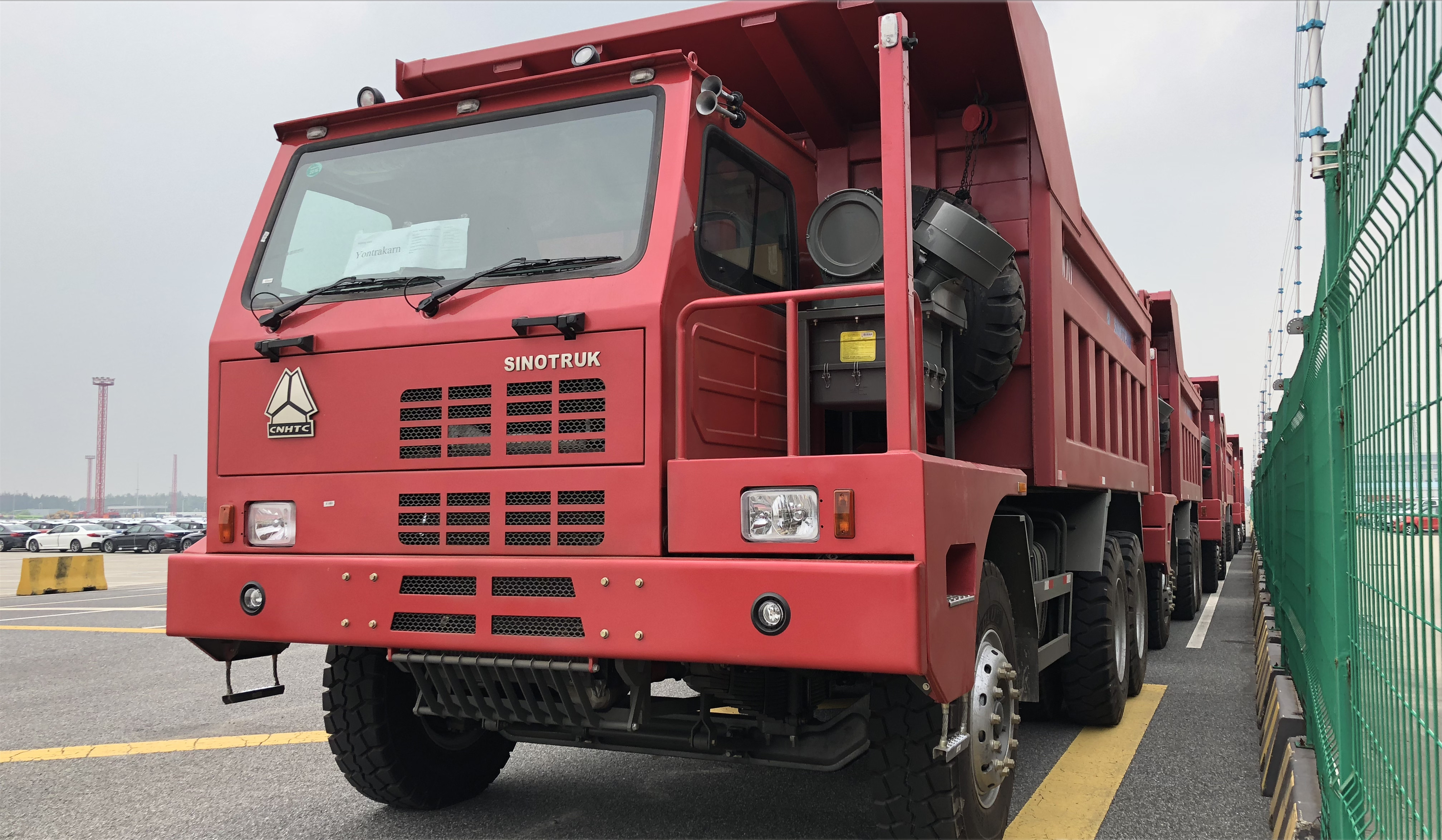

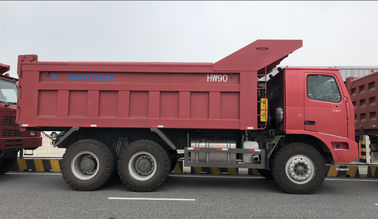

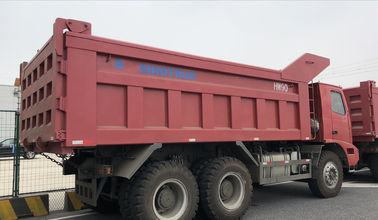

SINOTRUK HOWO Euro II RHD 6X4 420HP Mining Tipper Dump Truck With 9.726L Displacement
Our company have specialized in sinotruk trucks and spare parts for many years.The famous brand of sinotruk are HOWO series,HOWO A7 series,HOHAN series.We can supply tractor truck,dump truck,cargo truck,concrete mixer truck,fire tanker truck,water truck,fuel tank truck,bulk cement truck,sewage suction truck and also different types of semi trailers.SINOTRUK is located in Jinan city and was founed in 1956.It once manufactured china’s first heavy duty truck.In 1960,sinotruk introduced the steyr technology using on engine and axle from Austria.Later,sinotruk established cooperation with German man group and wobaco company.Today,sinotruk has developed into china’s largest heavy duty truck manufacturing base and made significant contributions to the development of china’s heavy duty truck industry and national economic growth.
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
1. Electro-hydraulic proportional control, stepless throttle.
2. Control box at both turret and platform.
3. Imported key components, higher reliability, excellent property and long life span.
4. Large outrigger span, outrigger can be operate individually.
5. Emergency descent power, Safety interlock.
6. Durable SINOTRUK chassis, enjoy highly reputation in the world.
|HOWO Mine King series basic configurations and main technical parameters(6x4,Euro 2)|
|Typical vehicle model||ZZ5707S3640AJ||ZZ5707S3840AJ|
|Type||Sketch covering, grand view and single side reinforced mine truck dedicated cab. Suspension id helical spring with shock absorber, air conditioner and heater. Heating system fir for cold areas is optional.|
|Reted power(kw/rpm)||273 / 2200|
|Max torque(Nm/rpm)||1500 / 1100-1600|
|Type||Inline 6 cylinders, two valve, rear supercharger, supercharged intercooling.|
|Clutch||Standard 430BA pull-type diaphragm spring clutch, hydraulic control power assisted.|
|Transmission||HW19710, main and auxiliary transmission structure, main transmission with double countershaft, auxiliary transmission with planetary reducer. With HW70 PTO|
|Front axle||HF12, one-piece-acsting 1 bean rigid boxing-style mine dedicated front axle.|
|Drive axle||AC26 double reduction(central reduction + wheel reduction), one-piece-acsting axle housing, with wheel and interaxle differentiallock, speed ratio:10.47; optional 8.51.|
|Suspension||Front and rear leaf spring suspension , rear suspention is intergral type equalizing suspension.|
|Steering system||8118, steering box,steering oil pump and steering actuation cylinder,system pressure of 18 MPa|
|Brake system||Service brake: dual-circuit air pressure brake; energey storage spring air cutoff brake; engine exhaust brake.|
|Electrical system||Single wire system, negative earth, voltage:24V; generator :1540kW; starter:7.5kw; battery:12V/180Ah, 2 pieces, engine inlet electric heating.|
|Tyre||14.00-25; optional 14.00R25|
|Rated load / kg||52500||52460|
|Front/rear overhang/mm||1500 / 1000||1500 / 1000|
|Wheel track(front/rear)/mm||2741 / 2520||2741 / 2520|
|Min ground clearance(under front axle)/mm||340||340|
|Approach/departure angle||32 / 40||32 / 40|
|Max packing slope/%||42||42|
|Min turning diameter/m||22||22|
|Ground clearance of fifth wheel joint face(unload)/mm||1312||1312|
|Container volume / m3||30||32|
|Remark||279kw, WD615.96C and 309kw, D12.42 common rail Euro 3 engine is matching.|
