Home ProductsMining Dump Truck

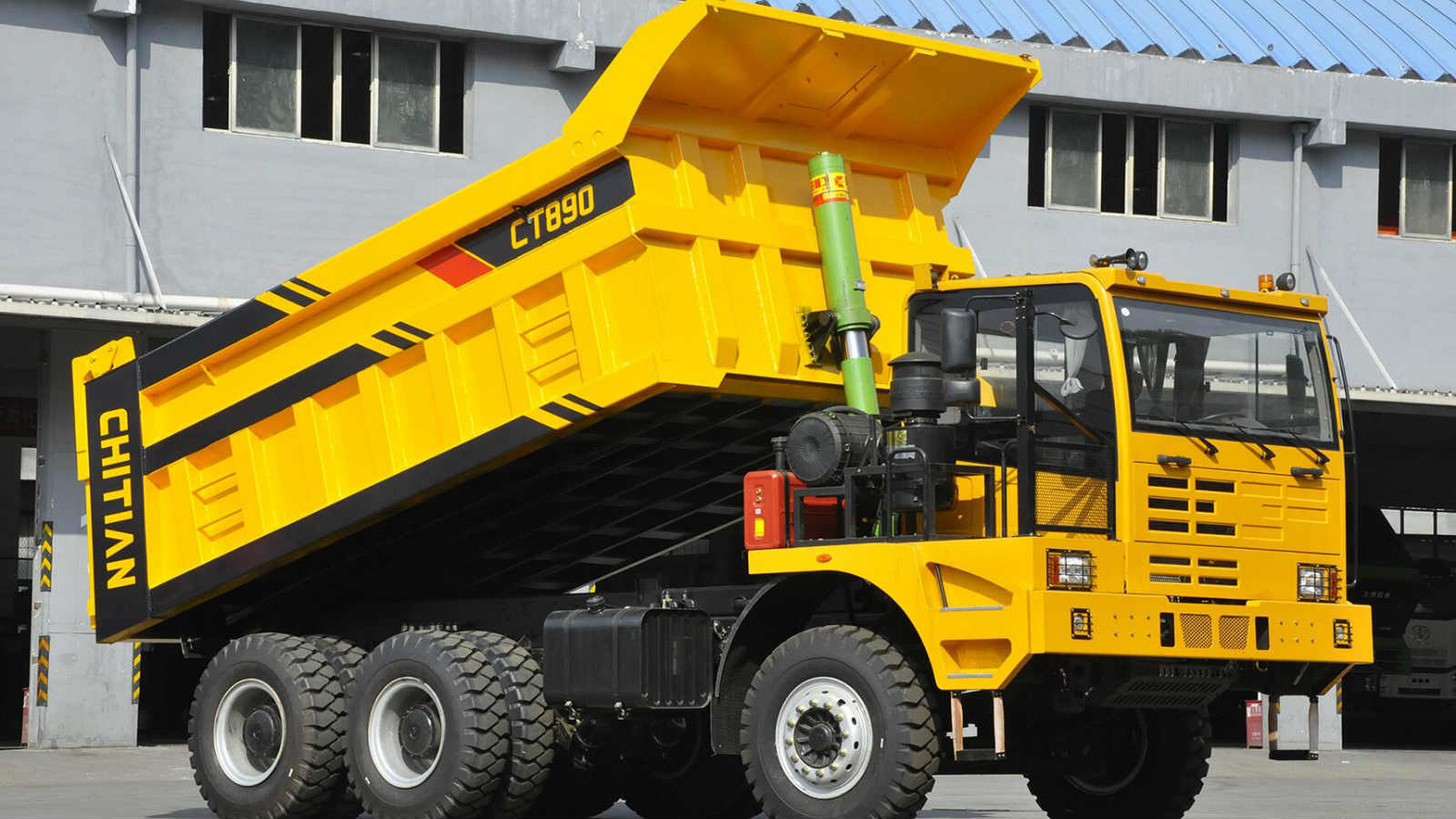

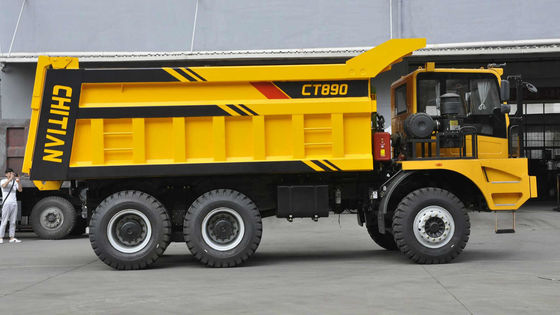

CT890 6X4 Euro 2 Mining Dump Truck With WP12G430E31 Engine And Manual Transmission

CT890 6X4 Euro 2 Mining Dump Truck With WP12G430E31 Engine And Manual Transmission

    • CT890 6X4 Euro 2 Mining Dump Truck With WP12G430E31 Engine And Manual Transmission
    • CT890 6X4 Euro 2 Mining Dump Truck With WP12G430E31 Engine And Manual Transmission
    • CT890 6X4 Euro 2 Mining Dump Truck With WP12G430E31 Engine And Manual Transmission
    • CT890 6X4 Euro 2 Mining Dump Truck With WP12G430E31 Engine And Manual Transmission
  • CT890 6X4 Euro 2 Mining Dump Truck With WP12G430E31 Engine And Manual Transmission

    Product Details:

    Place of Origin: CHINA
    Brand Name: Chitian
    Certification: CCC
    Model Number: CT890

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 UNIT
    Price: Negotiable
    Packaging Details: Nude
    Delivery Time: 30-45 work days
    Payment Terms: L/C, T/T
    Supply Ability: 500 UNITS/Month
    Contact Now
    Detailed Product Description
    Brand Name:: Chitian Dimensions (L X W X H) (mm):: 8850mmx3350mmx3800mm
    Wheel Base:: 3650+1580mm Engine:: WP12G430E31
    Transmission Type:: Manual Condition:: New
    High Light:

    diesel dump truck

    ,

    sinotruk howo dump truck

    CT890 6X4 Euro 2 Mining Dump Truck With WP12G430E31 Engine And Manual Transmission

    Description:



    The Mining dump truck equipped with 500x240mm large brake shoes with the most reliable brake power, providing strong safety protection on complex industrial and mining construction sites.



    The bottom plate of the hopper adopts a reinforced five-span beam structure and angle steel is placed inside the hopper, the collision resistance is increased by more thanthree times.



    Standard wheeled deceleration cast steel double rear axle, large speed ratio, widened track, large speed ratio produces strong power, large track improves vehicle lateral stability, and adapts to various complicated and harsh road conditions.



    Packing:



    Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

    Product Features:

    - Fast gearbox and other internationally renowned transmission products are selected, which can show superior performance in complex construction sites.



    - The reversible panoramic wide cab provides a spacious driving space, making driving more comfortable, a broader perspective.



    - The reversible panoramic wide cab provides a spacious driving space, making driving more comfortable, a broader perspective.



    - Increased strengthened brake air reservoir makes brake performance stronger and more flexible, higher safety.



    - The reinforced thickened leaf spring provides a powerful guarantee for the vehicle's superior load capacity, reflecting the extraordinary stability.



    - Exhaust gas heating device effectively prevents the freezing of cargo and hopper during the winter construction of the vehicle in the alpine region, which is convenient for dumping.



    - Adopting special thicken steel rim and special tire for construction machinery.



    - Scientific overall configuration greatly enhance the climbing ability of the vehicle. The gradeability up to 38% under fully loaded conditions.



    - The standard configured Vehicles can have an attendance rate of up to 90% in the standard load condition.



    Model CT870 CT890 CT8100
    Drive Style 6×4 6×4 6×4
    Curb Weight 25200 27000 28000
    Rated loading capacity 45000 53000 70000
    Rated Total Weight 70000 80000 98000
    Length (mm) 8680 8850 8800
    Width (mm) 3150,3200 3350 3350
    Height (mm) 3750 3800 4000
    Minimum ground clearance (mm) 333 350 350
    Minimum turning radius (m) 11.5 12 25
    Maximum climbing ability (%) 36 35 36
    Approach angle / departure angle (°) 27.5/45 27.5/45 27.5/45
    Wheelbase (mm) 3560+1520 3650+1580 3650+1580
    Wheel distance (front/back) (mm) 2550/2236 2731/2550 2727/2554
    Cab Offset cab Offset cab Offset cab
    Engine Model WP12G430E31 WP12G430E31 WP12G430E31
    Displacement(L) 11.596 11.596 11.596
    Rated power (kW/PS) 316 316 316
    Maximum torque / speed (N.r / min) 2060/(1000-1400) 2060/(1000-1400) 2060/(1000-1400)
    Fuel tank / cylinder volume (L) 450 350 350/420
    Tire Size 13.00-25 14.00-25 14.00-25





    CT890 6X4 Euro 2 Mining Dump Truck With WP12G430E31 Engine And Manual Transmission 0CT890 6X4 Euro 2 Mining Dump Truck With WP12G430E31 Engine And Manual Transmission 1
