XCMG SQ10SK3Q 14m Construction Telescopic Boom Truck 10 Ton 10 Wheels

XCMG SQ10SK3Q 14m Construction Telescopic Boom Truck 10 Ton 10 Wheels

  • XCMG SQ10SK3Q 14m Construction Telescopic Boom Truck 10 Ton 10 Wheels
  • XCMG SQ10SK3Q 14m Construction Telescopic Boom Truck 10 Ton 10 Wheels
  • XCMG SQ10SK3Q 14m Construction Telescopic Boom Truck 10 Ton 10 Wheels
  • XCMG SQ10SK3Q 14m Construction Telescopic Boom Truck 10 Ton 10 Wheels
XCMG SQ10SK3Q 14m Construction Telescopic Boom Truck 10 Ton 10 Wheels
Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: CE/ISO9001
Model Number: SQ10SK3Q
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 10000 Unit/Units per Year
Contact Now
Detailed Product Description
Max. Lifting Height: 14m Rated Lifting Moment: 25t.m
Brand Name: XCMG Hydraulic Cylinder Brand: 20000
Hydraulic Valve Brand: 20000 Dimension: 5350*2430*3290mm
Outrigger Span: 2280-5580mm Rated Loading Capacity: 10000kg
High Light:

truck mounted hydraulic crane

,

telescopic boom truck mounted crane

XCMG SQ10SK3Q 14m Construction Telescopic Boom Truck 10 Ton 10 Wheels



Product description



1.Throttle Control System

Changing the form of previous manipulation and throttle operation individually,Realization of the bilateral handle synchronous and driving throttle acceleration and deceleration automatically, due to the speed change steady,it can easily to carry out the lifting work.


2.End position automatic hook device
Maximum savings in preparation time before and after operation, to ensure that customer’s vehicle could be in a driving state in the shortest time, and prevent crane damage accident caused by hoist swing to enhance the safety of driving.



3.Hoisting overwinder device
If a user is negligent or unfamiliar with the operation of lifting hooks,the hoisting overwinder device will stop hook raise in time, to prevent the safety of personal and property caused by fracture of wire rope.



4.Slewing locking device
Slewing locking device can ensure that the lifting arm does not sway because of the centrifugal force during the driving and steering process of the vehicle,to avoid all kinds of accidents caused by swaying.



5.Dual pump converging
The hydraulic system adopts dual high pressure gear pump, multi-way valve hoisting joint to realize the converging, to improve the speed of winch, at the same time, it can realize the compound action of crane.



6.Torque limiter
It can select torque limit overload protection device to prevent users because of negligence or unfamiliar with the lifting operation principle of overload operation, thereby causing the vehicle rollover and crane damage accidents.



product details



Single cylinder synchronization guy cable technology makes work efficiency higher than before.

Advanced development means make sure that the design is very reliable.

The more symmetrical center design of pentagon or hexagon boom make it has bigger anti-bending capacity.

Compact hinge point design takes up smaller space.

The work is more safety after fitted with alarm device.

The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system.

Float three –point bridge structure design can lower the accessional stress on the chassis when traveling.

It has been fitted own powerful slewing of working in diversifying conditions.

Anti-slewing impulse equipment makes vehicle running safety.



Product parameter



Description Unit Parameter value
Max Lifting Moment t*m 25
Max Lifting Capacity kg 10000
Boom Length m 5.02~12.36 5.3~13.85
Max Lifting Height m 14 15.5
Derricking range ° 0~75°
Outrigger span mm 2280~5580 2326~5626
Size(length×width×height) mm 5350×2430×3290 5630×2500×3300
Crane Weight kg 4060 4080

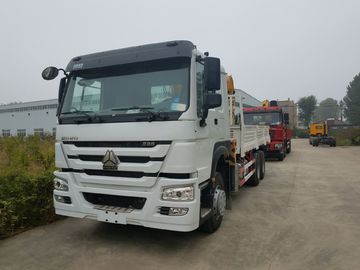

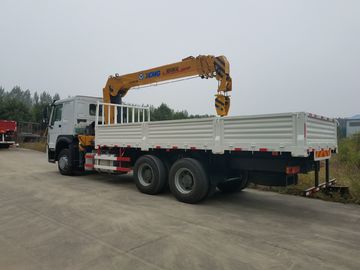

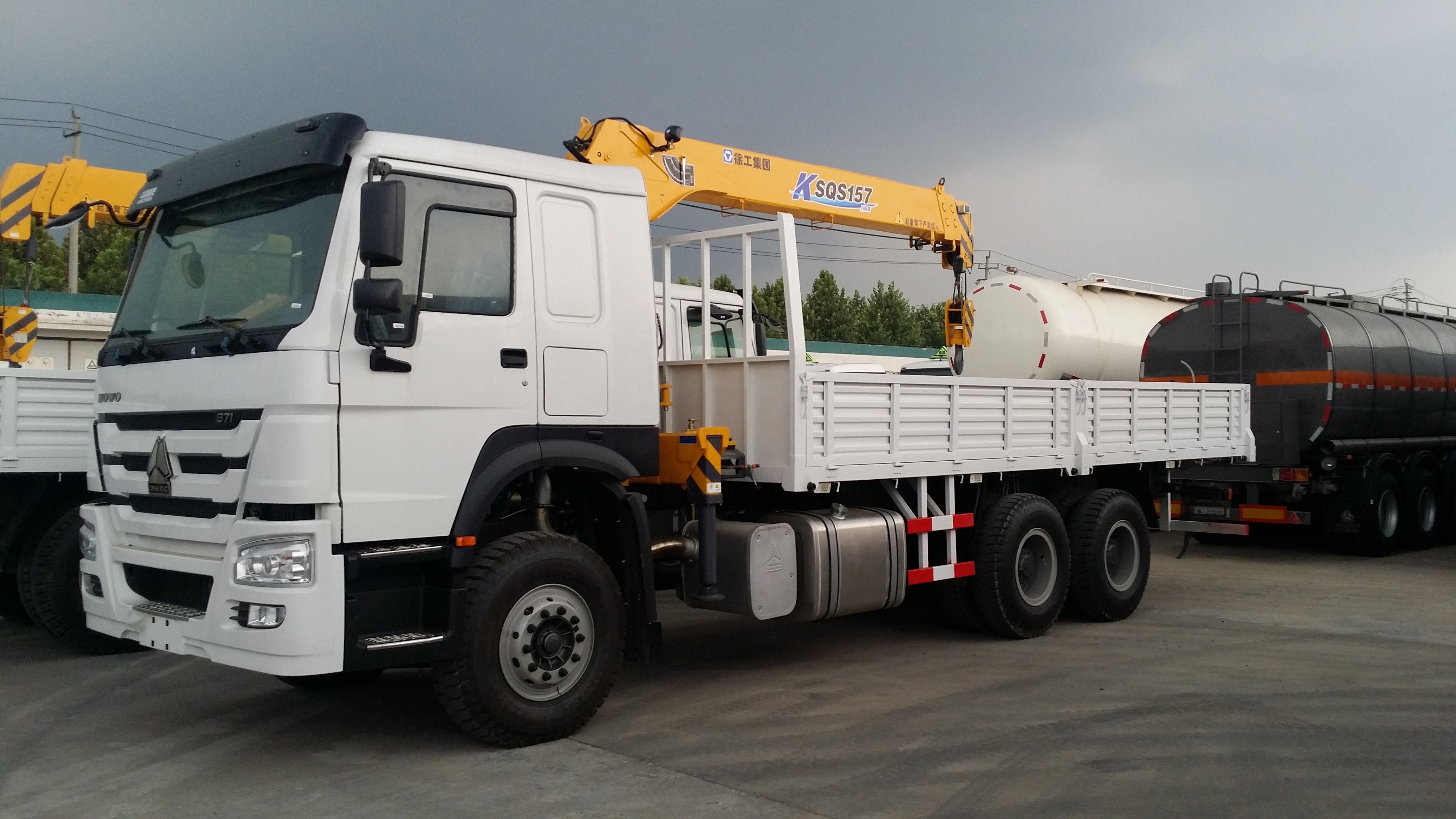

Product picture



XCMG SQ10SK3Q 14m Construction Telescopic Boom Truck 10 Ton 10 Wheels 0XCMG SQ10SK3Q 14m Construction Telescopic Boom Truck 10 Ton 10 Wheels 1XCMG SQ10SK3Q 14m Construction Telescopic Boom Truck 10 Ton 10 Wheels 2XCMG SQ10SK3Q 14m Construction Telescopic Boom Truck 10 Ton 10 Wheels 3
