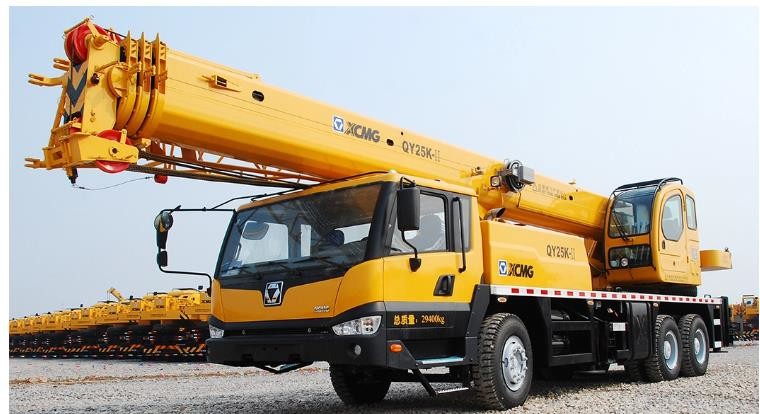

Official QY25K-II Hydraulic Truck Mounted Mobile Crane 25 Ton 1 Year Warranty

Official QY25K-II Hydraulic Truck Mounted Mobile Crane 25 Ton 1 Year Warranty

  • Official QY25K-II Hydraulic Truck Mounted Mobile Crane  25 Ton 1 Year Warranty
  • Official QY25K-II Hydraulic Truck Mounted Mobile Crane  25 Ton 1 Year Warranty
  • Official QY25K-II Hydraulic Truck Mounted Mobile Crane  25 Ton 1 Year Warranty
Official QY25K-II Hydraulic Truck Mounted Mobile Crane  25 Ton 1 Year Warranty
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: XCMG
Certification: CE/ISO9001
Model Number: XCT55L6
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: nude
Delivery Time: 10-30days
Payment Terms: L/C, T/T
Supply Ability: 5000/month
Contact Now
Detailed Product Description
Feature: Truck Crane Max. Lifting Height: 42.15m
Engine Brand: SHANGCHAI Certification: CE/ISO9001
Warranty: 1 Year Rated Loading Capacity: 25t
Span: 6m
High Light:

truck mounted hydraulic crane

,

telescopic boom truck mounted crane

XCMG Official QY25K-II 25ton Telescopic Boom Hydraulic Mobile Truck Mounted Crane



Product Quick Details:



Max. Lifting Height:43.2m

Warranty:1 Year

After-sales Service Provided:Video technical support, Online support, Overseas service center available

Feature:Truck Crane

Applicable Industries:Manufacturing Plant, Farms, Construction works , Energy & Mining

Condition:New

Application:Construcktion

Rated Loading Capacity:25t

Rated Lifting Moment:1010kN.m

Span:5.14m

Place of Origin:Jiangsu, China

Brand Name:XCMG

Certification:CE/ISO9001

Hydraulic Cylinder Brand:XCMG

Hydraulic Pump Brand:XCMG

Hydraulic Valve Brand:XCMG

Engine Brand:SHANGCHAI

UNIQUE SELLING POINT:Long lifetime

Truck:2074/1834/1834mm

Engine Model:SC8DK280Q3

Engine rated torque:1112/1400N.m/(r/min)



Product Features:

We are constantly devoting ourselves to the development of the new cranes by applying the latest techniques. The new products will have strong functions and be more adaptive to the customers. QY25K truck crane was developed by our company in 2000. Through constant upgrade, the travel and working performance are greatly improved. The chassis is three-axle which has strong power and cross-country capacity. The jib is optimized octagon section, which has excellent lifting capacity. The control system adopts hydraulic proportional (mechanical) control technique.

More excellent performance:
• The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable, and the lifting performance is higher than the products with the same tonnage.
• Apply the mature jib technique which integrates plug-in boom head, embedded boom block, and special telescoping mechanism, which makes the jib more stable and reliable.
• Optimize the stress design. Adopt the box-type outriggers which have larger span, stronger rigidity, and better stability.

More reliable quality:
• Adopt the classic K series jib telescoping technique, working safer and more reliable.
• Make the most complete safety device system in the industry, ensuring the lifting safer and more reliable.
• The comprehensively upgraded brake system adopts double circuit air pressure design. Multiple systems ensure the brake safety of the truck during travel.
• The new power steering mechanism adopts hydraulic power design, which makes the steering light, flexible, and precise, and ensures the safety of the truck.
• The intensity and rigidity of the rotary table and frame structure with high rigidity are completely coordinated.
• The perfect integration of the design and structure realizes the automation of welding, which is more reliable.

Easier to operate:
• The high efficient and energy efficient load sensing hydraulic system is sensitive to operate and precise to control, having good slight mobility.
• Optimize the control levers, which is easier to operate.
• The cab adopts orthodrome front windscreen, having wider operating views.



Product Specification:





Ⅰ.Main Technical Data Table in Travel configuration
Description Unit Parameter value
Overall length mm 12650
Overall width mm 2500
Overall Height mm 3380
Wheel Base mm 4425+1350
Track mm 2074/1834/1834
Total vehicle mass in travel configuration kg 29400
Axle load Front axle kg 6600
Rear axle 22800
Engine Model   SC8DK280Q3
Engine rated power kw/(r/min) 206/2200
Engine rated torque N.m/(r/min) 1112/1400
Max. travel speed km/h 75
Min. travel speed km/h 2.9
Min. turning diameter m 22
Min. ground clearance mm 260
Max. grade ability % 30
Approach angle ° 16
Departure angle ° 13
Braking distance (at 30 km/h, full load ) m ≤10
Oil consumption per 100km L ≤37
Exterior noise level during acceleration traveling dB (A) 84
Noise level at seated position dB (A) 90



.Main Technical Data Table for Lifting Operation
Max. total rated lifting capacity t 25
Min. rated working radius m 3
Turning radius at turntable tail mm 3065
Max. load moment Base boom KN.m 1000
Fully-extended boom 600
Fully-extended boom + Jib 376
Outrigger span Longitudinal m 5.14
Lateral 6
Hoist height Base boom m 10.8
Fully-extended boom 34.19
Fully-extended boom + Jib 42.3
Boom length Base boom m 10.7
Fully-extended boom 34
Fully-extended boom + Jib 34+8.15
Jib offset angle ° 0, 15, 30
Time for boom raising s 75
Time for boom lowering s 45
Time for boom extending fully s 100
Time for boom retracting fully s 60
Max. slewing speed r/min 2.5
Outrigger extending and retracting time Outrigger Extending s 35
beam Simultaneously
  Retracting 30
  Simultaneously
Outrigger Extending 40
jack Simultaneously
  Retracting 35
  Simultaneously
Hoisting speed Main winch Full load m/min 85
(single line No load 120
  Auxiliary winch Full load 85
  No load 120
Exterior noise level dB (A) ≤118
Noise level at seated position dB (A) ≤90
