| Place of Origin: | China |
| Brand Name: | HOWO |
| Certification: | ISO/CCC |
| Model Number: | SINOTRUK |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 units per month |
| Condition: | New | Drive Wheel: | 6x4 |
|---|---|---|---|
| Transmission Type: | Manual | Tank Volume: | 15001 - 30000L |
| Dimensions (L X W X H) (mm): | 10350x2496x3048mm | Product Name: | Fuel Tanker Truck Capacity |
| Engine: | WD615 | Transmission: | HW19710 |
| High Light: | fuel tanker trucks,oil tanker truck |
||

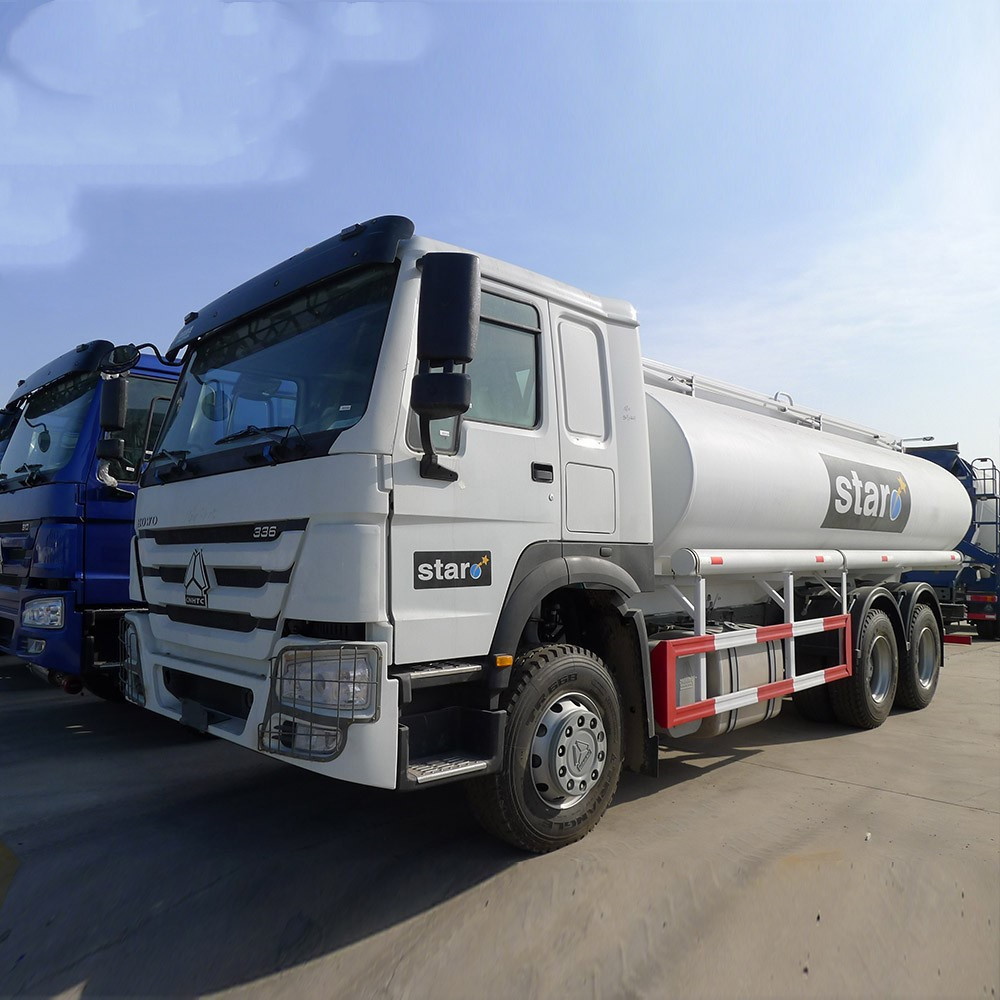

White HOWO 20000L 6×4 Oil Tanker Truck Diesel Fuel Type Manual Transmission
Product Parameter
| Driving Type | LHD, RHD | |
| Dimension(Lx W x H)(mm) | 11184x2496x3048mm | |
| Approaching angle/Departure angle(°) | 16/10 | |
| Overhang(front/rear) (mm) | 1500/3109 | |
| Remarks: oil pump model with F, represent relief valve, used for oil tanker truck with oil gun. | ||
| Max speed(km/h) | 90 | |
| Engine | Model | WD615,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection |
| Fuel type | Diesel | |
| Horse Power | 371hp | |
| Emission | EURO II | |
| Fuel tanker capacity(L) | 300 | |
| Transmission | Model | HW15710, 10 forwards and 2 reverse |
| Brake system | Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels | |
| Auxiliary brake | Engine exhaust brake | |
| Steering system | Model |
ZF8098,hydraulic steering with power assistance Ratio:22.2-26.2 |
| Front axle |
HF7 disc brake, Steering with double T-cross section beam Loading capacity: 7000kg |
|
| Rear axle |
HW1279, Pressed axle housing, central double reduction with differential locks between axles and wheels Loading capacity: 12000kg |
|
| Chassis |
Frame: U-profile parallel ladder frame with section of 300*80*8mm and reinforced sub frame all cold riveted cross member Front suspension: semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: semi –elliptic leaf spring and bogie springs |
|
| Tire | 12.00-20, Bias tire | |
| Tire quantity | 10+1 spare | |
| Electrical system | Battery | 2X12V/165Ah |
| Alternator | 28V-1500kw | |
| 7.5Kw/24V | 7.5Kw/24V | |
| Cab | HW76 | |
FAQ
1. How do you transport the semi trailers?
We transport the semi trailers by bulk,container or ro to ro. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.
2. How can you guarantee quality?
Our raw material and OEM parts including axle, suspension, tyre, are purchased centralized by Chengda group,every node will be inspected strictly. Moreover, advanced equipment rather than only worker is been applied during the whole producing process to ensure the welding quality.
Our Services
1.11 years manufacture experience, good at controlling our products' quality. Choosing us ,you choose professional supplier.
2.The good faith management is our philosophy,and welcome visits our company at any time.
3.According to your order, we provide suitable trailer.
4.We also provide rational packing and shipping program, let shipment save money and security.
Product picture
