| Place of Origin: | China |
| Certification: | ISO9001 |
| Model Number: | CA5250GJBP66K2L1T1E |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packed in nude |
| Delivery Time: | 30-45days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500sets per month |
| Brand Name: | FAW | Condition: | New |
|---|---|---|---|
| Power: | 261kw | Drive Type: | 6x4 |
| Fuel Type: | Diesel | Emission Standard: | E3 |
| High Light: | truck mounted concrete pump,mobile cement mixer trucks |
||

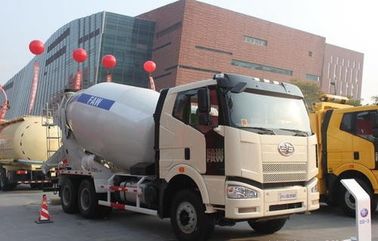

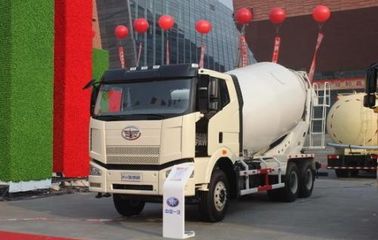

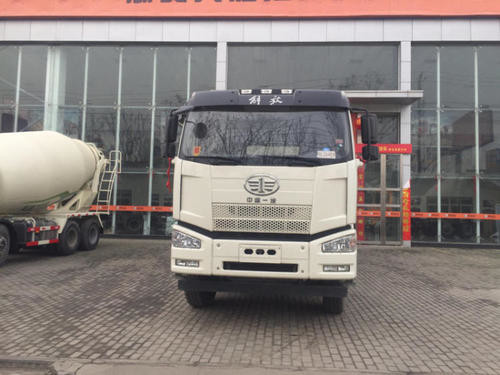

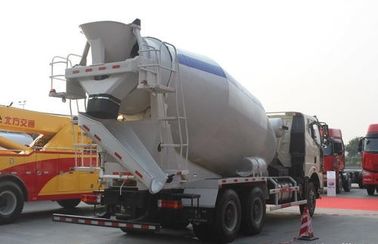

FAW 6X4 mixer 12 m3 capacity low noise efficient truck
Products Description:
Jiefang J6P mixer has the characteristics of beautiful appearance, strong load-bearing, sufficient power, high reliability, high fuel-saving, high safety and high comfort. At the same time, Jiefang provides free first-time maintenance, pre-sale inspection, three free inspection and door-to-door service for new cars in terms of service, so as to provide users with high-quality products and intimate service guarantee.
1)strong power and reliability
2)remarkable energy-saving effect
3)flexible and convenient manipulation
4)cheap machine but high quality
5)excellent working condition
6)reasonable price
7)Complete accessory and no oil leaking
Technological Parameters:
| Recommended Vehicle Model | CA5250GJBP66K2L1T1E | |
| Driving Type | 6X4 | |
| Mass Parameter(kg) | Curb Weight | 14590 |
| Max. GVW | 25000 | |
| Dimension Parameter(mm) | Overall Dimension | 9120*2495*3900 |
| Wheelbase | 4050+1350mm | |
| Performance Parameter | Max. Speed(km/h) | 88km/h |
| Economic Speed(km/h) | 47-71km/h | |
| Max. Gradeability(%) | 45% | |
| Cabin | 2013 J6P Full Floating Roof Small Row Half Cab | |
| Engine | Model | CA6DL2-35E3F(internal EGR) |
| Rated Power(kw/rpm) | 261kw(2100r/min) | |
| Max. Torque(Nm/rpm) | 1500N.m(1300r/min) | |
| Transmission | Model | CA10TA160M2 |
| Gears | Manual Transmission, 10 forward gears, 2 reverse gears | |
| Axles | Steering Axle | maximum load 7000kg |
| Drive Axle | 18000kg Cast iron improved wheel axle, reduction ratio 5.921, maximum load18000kg | |
| Body | Suitable for 8-12m³ | |
| tyres | 12.00R20type | |
| Emission Level | E3-E5 | |
| Certifications | ECE,CCC | |
| Remarks | ||
| Exported countries | Turkmenistan, Russia, Algeria, Vietnam, Mongolia | |
| Recommend Market Type | Cargo Type | concrete |
| Main Working Condition | ||
| Operating Condition | ||
| Driver Position | left | |
| Customer Type | High-end, emphasis on high security, high reliability, high comfort, low fuel consumption | |
Quality assurance:
1.1- The Goods are brand new and shall conform to the relevant quality standards of FAW Group.
1.2- The manufacturer’s inspection prior to the shipment shall be final. In case any third party’s inspection is required by the Buyer, any charges which will be occurred by such inspection shall be borne by the Buyer.
Packing & Transportation:
2.1- Packing: Nude Cargo
2.2-Shipping marks: As contract
2.3- Transportation:RORO vessel or container
Delivery
We could deliver the Goods to any port in China as required within 150 calendar days from the date of receiving the down payment.
Quality/Specifications/Quantity discrepancy:
If the quality, specifications, quantity, of Goods be found not in conformity with the stipulations of contract after the arrival of the Goods, we will compensate it after receiving the necessary documentary evidence as required.
