| Place of Origin: | China |
| Brand Name: | XCMG |
| Certification: | CCC BV |
| Model Number: | SQ6.3SK3Q |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 600 Unit/Units per Month |
| Warranty: | 1 YEAR | Condition: | New |
|---|---|---|---|
| Rated Loading Capacity: | 16000 | Max. Lifting Load: | 6.3 Ton |
| Overall Dimensions(mm): | 8968*2496*3370 | Max Lifting Moment: | 15.7 |
| Tire: | 12.00R20 | Rotation Angle: | 360 |
| High Light: | truck mounted hydraulic crane,telescopic boom truck mounted crane,4x4 290hp truck mounted crane |
||
Sinotruk HOWO 4x4 290hp Truck Mounted Crane 6.3ton Telescopic Boom 12.00R20 Tire
Product description
1.Throttle Control System
Changing the form of previous manipulation and throttle operation individually,Realization of the bilateral handle synchronous and driving throttle acceleration and deceleration automatically, due to the speed change steady,it can easily to carry out the lifting work.
2.End position automatic hook device
Maximum savings in preparation time before and after operation, to ensure that customer's vehicle could be in a driving state in the shortest time, and prevent crane damage accident caused by hoist swing to enhance the safety of driving.
3.Hoisting overwinder device
If a user is negligent or unfamiliar with the operation of lifting hooks,the hoisting overwinder device will stop hook raise in time, to prevent the safety of personal and property caused by fracture of wire rope.
4.Slewing locking device
Slewing locking device can ensure that the lifting arm does not sway because of the centrifugal force during the driving and steering process of the vehicle,to avoid all kinds of accidents caused by swaying.
5.Torque limiter
It can select torque limit overload protection device to prevent users because of negligence or unfamiliar with the lifting operation principle of overload operation, thereby causing the vehicle rollover and crane damage accidents.
Product parameter
| Crane Parts | ||
| Max Lifting Moment | 15.7TM | |
| Crane Model | SQ6.3SK3Q | |
| Max Lifting Capacity | 6.3T | |
| Rotation Angle | (360°) all rotation | |
| Crane Weight | 2230 kg | |
| Flow of Hydraulic System | 40 L/min | |
| Pressure of Hydraulic System | 20MPa | |
| Oil Tank Capacity | 90L | |
| Installation Space | 1050mm | |
| Chassis Parts | ||
| Truck Model | ZZ5167M5227A (Left Hand Drive) | |
| Truck Brand | SINOTRUK –HOWO | |
| Type of vehicle | Off-road truck | |
| Engine Power | 290HP | |
| Traction 4x4 & 6x6 & 8x8 | 4x4 | |
| Overall Dimension(Lx W xH) | 8968*2496*3370 | |
| Approaching angle/Departure angle(°) | 32/36 | |
| Overhang(front/rear) (mm) | 1500/2200 | |
| Wheel base (mm) | 5200 | |
| Max speed(km/h) | 75 | |
| The total mass (kg) | 16 000 | |
| Curb weight(kg) | 1010 | |
| Caapacity of fuel tank (L) | 300 | |
| Cargo body size (L*W*H, mm) | 5300x2300x600 bottom:3mm, side:1.5mm, | |
|
Engine Model
|
Model | WD615.87 |
| Horse Power | 290HP EURO II | |
| Fuel | diesel | |
| Transmission | HW15710C 10 forwards and 2 reverse | |
| Clutch | Single-plate dry clutch Φ420mm | |
| Steering system | 8118 | |
| Front axle | STR | |
| Rear axle | ST16 | |
| Color | Optional | |
| Tire | 12.00R20 Radial tire 6+1 spare tire | |
| Cabin |
HW76 single sleeper with air-conditioner |
|

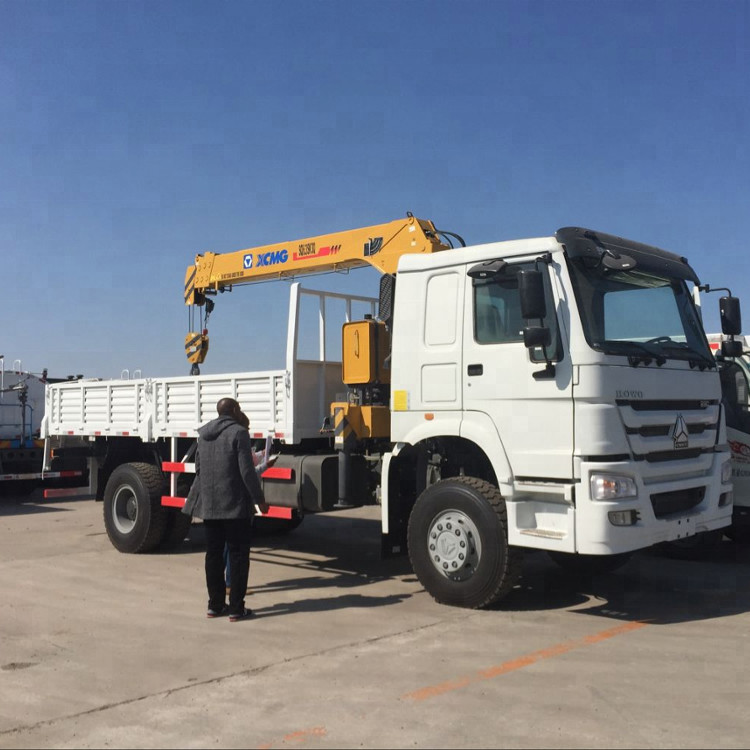

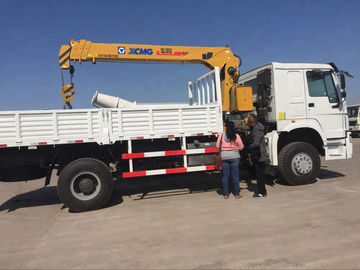

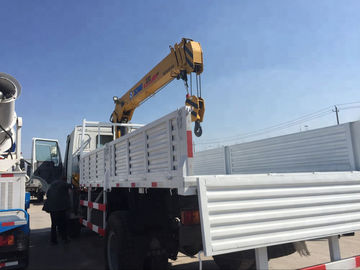

Product picture
