| Place of Origin: | SHANDONG |
| Brand Name: | LD |
| Certification: | ISO/CCC |
| Model Number: | LDZA |
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 units/month |
| Power(W):: | 53kw | Wheelbase:: | 2400mm |
|---|---|---|---|
| Dimension(L*W*H):: | 7500 X 2850x 3600mm | Displacement:: | 4.33L |
| Weight:: | 8500kg | Condition:: | New |
| High Light: | truck mounted concrete pump,mobile cement mixer trucks |
||
4cbm Self-Feeding Concrete Construction Mixer Truck With 4.33L Displacement Engine
Description:
Self-loading bucket, instead of forklift function, flexible operation, easy loading and unloading, saving effort and efficiency
can design, easy to stir, dry and wet materials can be stirred, with automatic cleaning function
Panoramic image, more flexible operation, more effective to help drivers improve driving level and improve driving safety
operation platform, simple and clear, easy to operate, not cumbersome, improve work efficiency
Axle design, the vehicle is equipped with high-strength rear axle, strong bearing capacity, free of maintenance.
Packing:
The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland.The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
Competitive Advantage:
1. The satisfied product with high level standard.
2. The full aspect service from order to shipping.
3. Give customer most suitable advice when customer has special needs for your transportation or construction.
4. Specialized in this area more than 10 years,rich experience and well after-sale service.
5. Technique support and training. Customization service, as per your request, we will customize our production
Configuration:
| Self-propelled loading truck concrete mixer truck | ||
| Mixing Drum | Mixing Volume | 4000 L |
| Geometric Volume | 6100L | |
| Concrete Output | 4000 L/ batch , 4 Batches/ hr | |
| Inclination Angle | 16° | |
| Max. Slewing Angle | 290° | |
| Rotating Speed | 0~21 rpm | |
| Body /Bottom Thickness | 5 mm/8 mm(Q345B) | |
| Overall Size | Φ1920x 3206mm | |
| Chute | Max. Slewing Angle | 180° |
| Tilting Method | Mechanically | |
| Length | 650mm +1500 mm (2 Sections) | |
| Engine | Brand | Yuchai 4108 supercharged engine (95KW) |
| Model | LD-ZA | |
| Rated Power/Speed | 116 HP /2400 rpm | |
| Max.Torque/ Speed | 390 N.m/2800 rpm | |
| Bore x Stroke | 105 mm x125 mm | |
| Displacement | 4.33 L | |
| Type | 4-Cylinder,In-line,Turbo Charged, Water-cooled | |
| Emission Standard | self made | |
| Hydraulic System | Reducer Model | HJ80-43 |
| Hydraulic Pump Displacement | 80/40 mL/r | |
| Hydraulic Motor Displacement | 63 cm3/rev | |
| Water Supply System | Water Tank Volume | 2 x 330 L |
| Water Supply Mode | Self-contained, Hydraulic Driven water pump | |
| Chassis | Torque converter | YJ280 ( Split Type) |
| Gearbox Mode | Counter Shaft, Power-shift | |
| Wheelbase | 2400 mm | |
| Tread | 1820 mm | |
| Loading Shovel Capacity | 600 L | |
| Brake Type | Air Brake | |
| Tyre Size | 16/70-20 | |
| Structure | Integrated Structure | |
| Drive Type | 4 X 4X4 | |
| Transmission | 2 Forward +2 Reverse Shift(Low+ High Speed) | |
| Vehicle | Drum and Shovel Control | By Joystick |
| Driver's Cab | Air-conditioner Inside | |
| Max. Drive Speed | 30 km/h | |
| Grade Ability | 30% | |
| Mini Turning Radius | 4000 mm | |
| Max. Payload | 9,500 kg | |
| Operating Weight | 8,500 kg | |
| Overall Size | 7500 x 2850x 3600 mm | |

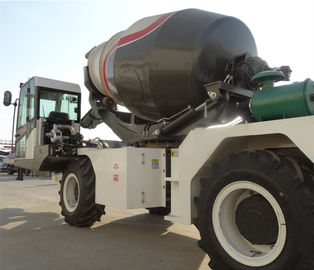

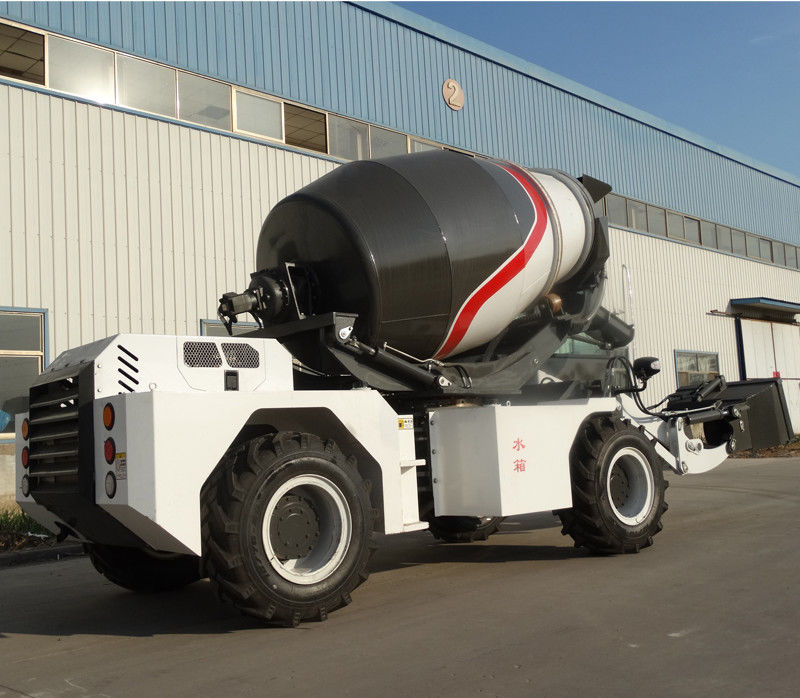

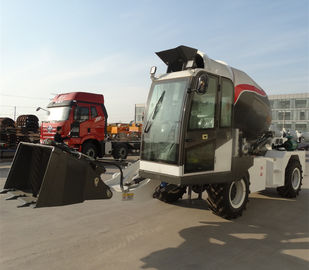

Product Photos:
