4X4 Mobile Concrete Mixer Self - Made Chassis With Feeding Bucket 6m3 And YC4A Engine

4X4 Mobile Concrete Mixer Self - Made Chassis With Feeding Bucket 6m3 And YC4A Engine

  • 4X4 Mobile Concrete Mixer Self - Made Chassis With Feeding Bucket 6m3 And YC4A Engine
  • 4X4 Mobile Concrete Mixer Self - Made Chassis With Feeding Bucket 6m3 And YC4A Engine
  • 4X4 Mobile Concrete Mixer Self - Made Chassis With Feeding Bucket 6m3 And YC4A Engine
4X4 Mobile Concrete Mixer Self - Made Chassis With Feeding Bucket 6m3 And YC4A Engine
Product Details:
Place of Origin: China
Brand Name: JB
Certification: ISO9001, CCC
Model Number: 6m3
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 300 Unit/Units per Month
Contact Now
Detailed Product Description
Power(W): 102kw/2300rpm Engine: YC4A
Model: 6M3 Weight: 19000
Dimension(L*W*H): 6860x2420x3150 Dirving Type: 4*4
High Light:

truck mounted concrete pump

,

mobile cement mixer trucks

4X4 Mobile Concrete Mixer Self-Made Chassis With Feeding Bucket 6m3 And YC4A Engine



Product description



Concrete mixing truck is composed of automobile chassis and specialized concrete mixing device. Wolwa made concrete mixer truck chassis is mostly used grade B specialized chassis. Its special institutions mainly including the power lifter, before and after the mixing drum bracket, deceleration machine, hydraulic system, mixing barrel, operating mechanism,feeding system, cleaning system, etc. Working principle is that power is taken from chassis, and drives variable pump of the hydraulic system, changing mechanical energy into hydraulic energy to quantitative motor, then the motor drives reducer, then to mixing device, for mixing concrete.

the wolwa self-made mobile concrete mixers in our company include model "A" and model "B" , the model B have new and advantage function, their cement tank can horizontal turn 180°or 270 °.it will be more convenient while dumping the concrete.



Product parameter



Actual mixing amount

6m3

Drum capacity

7.5m3

Tilt angle

16°

Rotation speed

0-14r/min

Rotation direction(from back to front)

Feed : clockwise

Rotation direction(from back to front)

Discharge: counterclockwise

Mixing drum blades

Two spiral vanes and auxiliary blades

Concrete slump

70-260mm

Pump model

CBF-32

Motor model

BMS-125

Reducer model

HJ220

Water forms

Bring water agencies

Water tank capacity

320L

Engine model

YC4F55-T20

Engine form

Direct-injection four-stroke water-cooled engine

Number of cylinders

4

Displacement

5l

Rated power

102kw/2650

Maximum torque

450/1800-2000

Maximum speed

24km/h

Minimum turning diameter

7m

Gradeability

24°

Tire

7.5-16

Drive form

4*4

Vehicle equipment quality

8000

Maximum load mass

9000

Maximum total mass of the vehicle

17500

Vehicle dimension(lwh)

7260x2420x3350



Our Services



1. Factory Supply:

a. one of the biggest special using truck manufacturers in china,

b. more than 300 kinds of special truck for your needing.

2. OEM Ability: can produce according to your demand, the material, the size, the color and the logo is optional for you.

3. Good Quality:

a. has solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,

b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),

c. our brand is china famous brand with good reputation in the market.

4. Good Service:24-hour hotline and email.



Packing:



The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland.The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

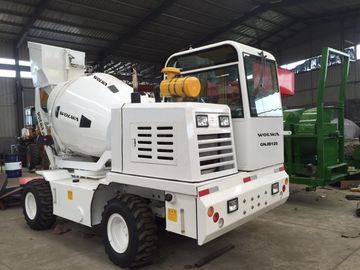

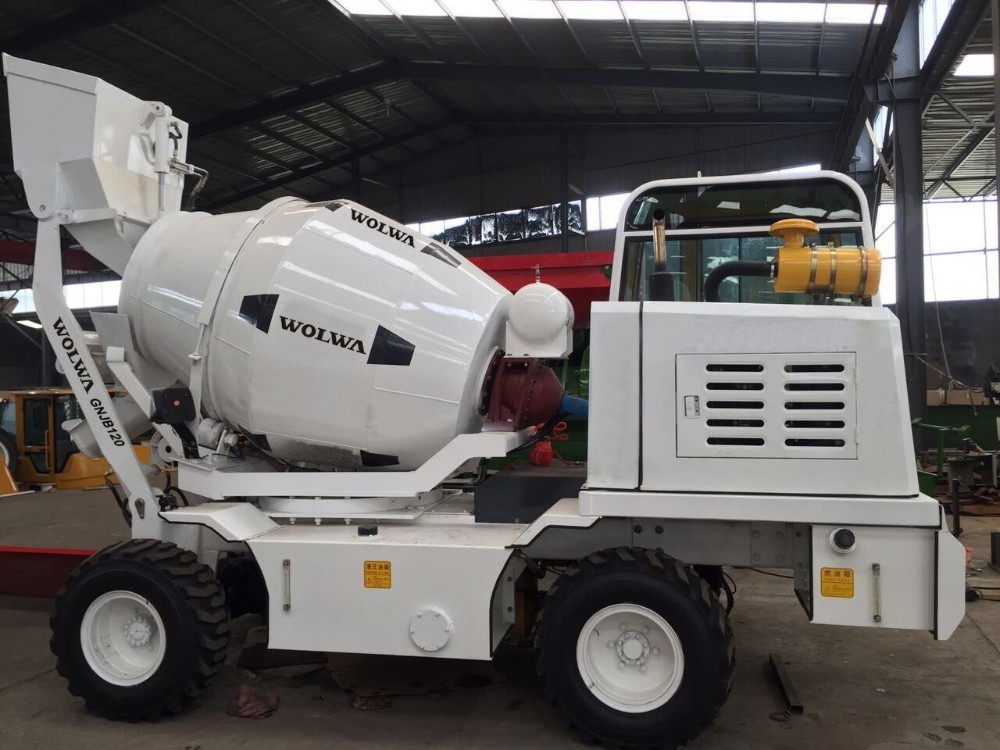

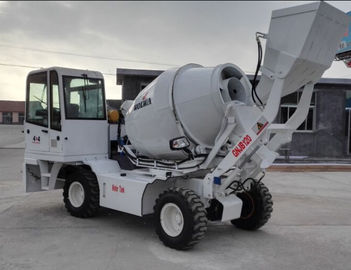

Product picture



4X4 Mobile Concrete Mixer Self - Made Chassis With Feeding Bucket 6m3 And YC4A Engine 04X4 Mobile Concrete Mixer Self - Made Chassis With Feeding Bucket 6m3 And YC4A Engine 14X4 Mobile Concrete Mixer Self - Made Chassis With Feeding Bucket 6m3 And YC4A Engine 2
