60kw Heavy Earth Moving Machinery SEM 1.8Ton Mini Front End Loader SEM618B

60kw Heavy Earth Moving Machinery SEM 1.8Ton Mini Front End Loader SEM618B

    • 60kw Heavy Earth Moving Machinery SEM 1.8Ton Mini Front End Loader SEM618B
    • 60kw Heavy Earth Moving Machinery SEM 1.8Ton Mini Front End Loader SEM618B
    • 60kw Heavy Earth Moving Machinery SEM 1.8Ton Mini Front End Loader SEM618B
    • 60kw Heavy Earth Moving Machinery SEM 1.8Ton Mini Front End Loader SEM618B
  • 60kw Heavy Earth Moving Machinery SEM 1.8Ton Mini Front End Loader SEM618B

    Product Details:

    Place of Origin: China
    Brand Name: SEM
    Certification: ISO
    Model Number: SEM618B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiation
    Packaging Details: Nude
    Delivery Time: 100 Unit/Units per Month
    Payment Terms: L/C, T/T
    Contact Now
    Detailed Product Description
    Machine Weight: 5780kg Color: Yellow
    Rated Power: 60kw Dimension(Long * Breadth * High): 5885*2000*2795mm
    Type: Front Loader Engine: Yituo YT4B4
    Bucket Capacity: 1m3 Max. Rimpull: 55kN
    High Light:

    dirt moving equipment

    ,

    earth digging equipment

    China Heavy Earth Moving Machinery SEM 1.8Ton Mini Front End Loader SEM618B

    Product description



    • SEM618B wheel loader standard dump height is 2697mm, which is superior to counterpart machines made in China.

    • Optional extra-high dump is up to 2875mm.

    • SEM618B wheel loader 1.0 m3 bucket is optimized and has excellent loading capacity.

    • The tipping while steering meets standard requirements; long wheelbase and big tread provides excellent stability.

    • SEM618B wheel loader cab environment is effectively improved and it meets China’s noise regulations.

    • SEM618B wheel loader with new working devices, it has powerful breakout force and lifting capability, outstanding horizontal movement and automatic leveling function.

    • SEM618B wheel loader structural parts developed with FEA process completely meet the requirements for various work conditions in terms of reliability and durability.

    • SEM618B wheel loader optional air conditioner and heater.

    • Optional mechanical single lever control.



    Product parameter



    Item

    Parameters

    Unit

    Main Specifications

    Rated operating load

    1800

    kg

    Bucket capacity

    1.0

    Machine weight

    5780

    kg

    Overall Dimension

    5885×2000×2795

    mm

    Max. Rimpull

    55

    KN

    Breakout Force

    60

    KN

    Transmission

    Transmission Type

    Countershaft, power shift



    Forward I/Reverse I

    9.3/23.8

    km/hr

    Forward II/Reverse II

    9.1/23.5

    km/hr

    Engine

    Model

    Yituo YT4B4



    Rated Power

    60

    kW

    Peak Torque

    320

    N.m

    Implement Hydraulic

    Implement System Type

    Open center



    Boom Raise Time

    4.37

    s

    Hydraulic Cycle Time

    -

    s

    System Pressure Setting

    17

    Mpa

    Brake System

    Service Brake

    Dry&caliper,air to oil control



    Parking Brake

    Drum/shoe




    Steering System

    Minimum Turning Radius Over Rear Tire

    4229

    mm

    Minimum Turning Radius Over Bucket

    4980

    mm

    Steering Angle (L/R)

    35±1

    °

    Tires

    Size

    16/70-20



    Type

    Bias



    Layer

    14



    Textured Type

    L3

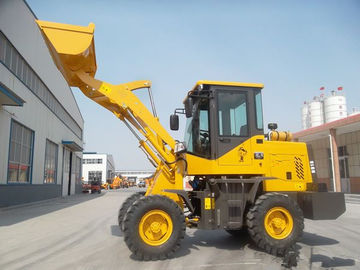

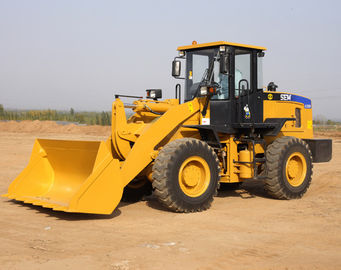

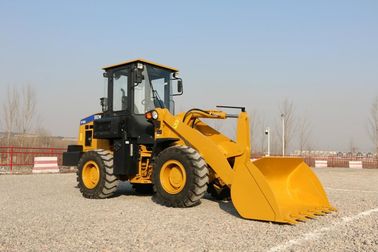

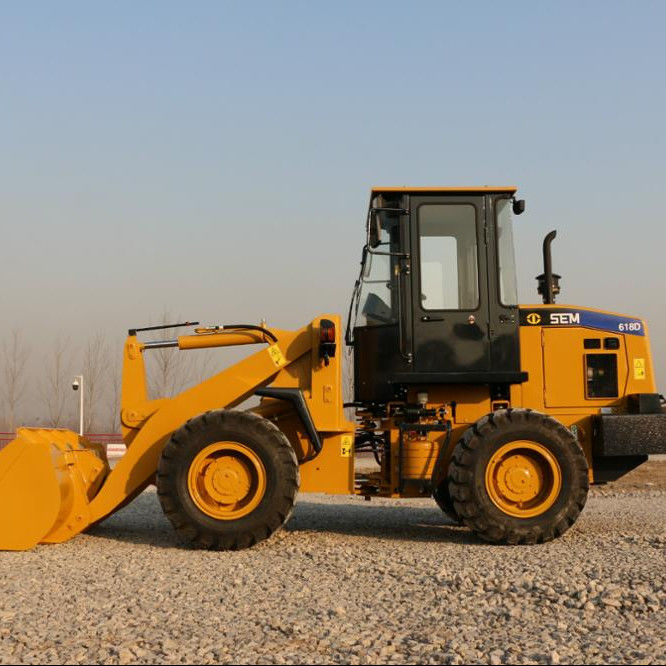

    Product picture



    60kw Heavy Earth Moving Machinery SEM 1.8Ton Mini Front End Loader SEM618B 060kw Heavy Earth Moving Machinery SEM 1.8Ton Mini Front End Loader SEM618B 160kw Heavy Earth Moving Machinery SEM 1.8Ton Mini Front End Loader SEM618B 260kw Heavy Earth Moving Machinery SEM 1.8Ton Mini Front End Loader SEM618B 360kw Heavy Earth Moving Machinery SEM 1.8Ton Mini Front End Loader SEM618B 4
