High Strength Sheet Sinotruk Howo 6x4 Dump Truck Euro 2 371HP 20CBM

High Strength Sheet Sinotruk Howo 6x4 Dump Truck Euro 2 371HP 20CBM

    • High Strength Sheet Sinotruk Howo 6x4 Dump Truck Euro 2 371HP 20CBM
    • High Strength Sheet Sinotruk Howo 6x4 Dump Truck Euro 2 371HP 20CBM
    • High Strength Sheet Sinotruk Howo 6x4 Dump Truck Euro 2 371HP 20CBM
    • High Strength Sheet Sinotruk Howo 6x4 Dump Truck Euro 2 371HP 20CBM
  • High Strength Sheet Sinotruk Howo 6x4 Dump Truck Euro 2 371HP 20CBM

    Product Details:

    Place of Origin: China
    Brand Name: HOWO
    Certification: ISO/CCC
    Model Number: ZZ3257N3847A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiation
    Packaging Details: Nude
    Delivery Time: 30-45 work days
    Payment Terms: L/C, T/T
    Supply Ability: 300 Unit/Units per Month
    Contact Now
    Detailed Product Description
    Drive Wheel: 6x4 Horsepower: 351 - 450hp
    Transmission Type: Automatic Fuel Type: Diesel
    Body Dimension: 5600*2300*1500mm Front Axle: HF9 Capacity Of 9000kg
    Capacity (Load): 31 - 40t Emission Standard: Euro 2
    High Light:

    heavy duty tipper trucks

    ,

    construction dump truck

    SINOTRUK HOWO 371HP 20CBM High Strength Sheet 6x4 Dump Truck Euro 2



    According to clients' requirements, we can customize different loading capacity and volume.

    The popular dump truck models include: sinotruck HOWO 336hp 6X4 10 wheeler 16 cubic meters dump truck, sino truck 371hp ten wheeler 20 cubic meters dump truck, SINOTRUK howo 8X4 12 wheeler 40tons end dump truck and so on.



    Specification



    Vehicle series HOWO-7 6x4 Dump Truck
    Cab HW76
    Engine Model Euro 2:WD615.47
    Power(Ps/rpm) 273/2200
    Maximum torque(Nm/rpm) 1500
    Displacement(L) 9.726
    Transmission SINOTRUK HW19710 series 10 gears Transmission,Transmission with main and auxiliary transmission structure, , main transmission with double counter shaft ,auxiliary transmission with planetary reduction.
    Clutch Φ430diaphragm spring Clutch,Hydraulic control air assisted.
    Front axle HF9 drum-type, rated load of 9t
    Rear axle HC16 double reduction (central reduction+wheel reduction),speed ratio:5.73, 4.8
    Steering system ZF8118 steering gear, ZF steering oil pump, system pressure 18MPa
    Suspension Steer Axle front and rear leaf spring suspension, front suspension with shock absorber,transverse stabilizer
    Drive Axle front and rear leaf spring suspension,rear suspension is disconnected type with transverse stabilizer.
    Braking system Service brake dual-circuit air pressure brake
    Parking Brake spring storage energy without air
    Auxiliary brake Engine exhaust braking.
    Electric system Voltage 24V
    Generator 2240W
    Batteries 12V/165Ah,2 pieces
    Starter Power 24V,7.5kW
    Wheels & Tyres Tyres 12.00R20
    Optional 12.00R24,12.00-24
    Fuel Tank Capacity 300 Liter
    Weights (kg) Curb weight(vehicle/chassis) 12170/8630;12290/8660;12450/8690;12270/8710
    Gross Vehicle Weight 25000
    Rated load 12420~12700
    Vehicle Dimensions (mm) Overall length x Overall width x Overall height (7545~8545)×2496×3170/3450
    Wheelbase (3225~3825)+1350
    Front/rear overhang(vehicle/chassis) 1500/(1470/715);1500/(1670/740);1500/(1870/900)
    Wheel track of front axle 2041
    Wheel track of rear axle 1830/1850
    Performance Maximum speed(km/h) 79/83
    Maximum gradeability(%) 20
    Minimum turning diameter(m) 15/16/17





    Competitive Advantage



    1.competive price, cost-effective
    2.with all kinds of truck model, which can fulfil your requirements

    3.all kinds of cargo body structure can be designed and produced according to your request,make it have light curb weight , high rigidity , high loading capacity
    4.using the high strength steel, make it has a long service life
    5.The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
    6.excellant apperance of cabin, safety, reliable

    7.quick and efficient spare parts supply bring you more convenient

    8. you can choose cargo body with Front lifting type or Middle lifting type which you prefered

    9. The hydraulic sytem using HYVA brand or Domestic famouse brand

    10.low fuel consumption
    11. strong enough engine

    12.fast delivery time, we can arange production according to your needs exactly and quickly

    13. professional import and export dealing precedure, make customs clearance more high efficiency



    Production Details

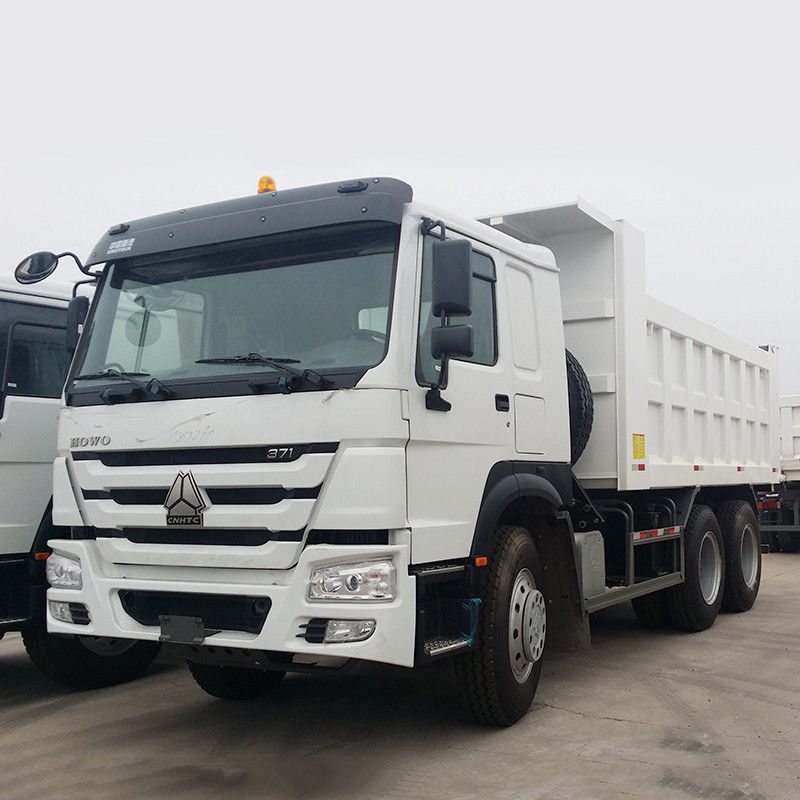

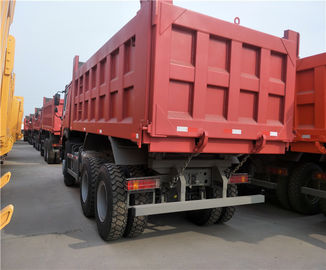

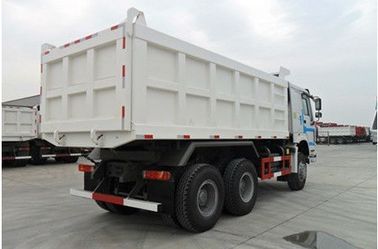

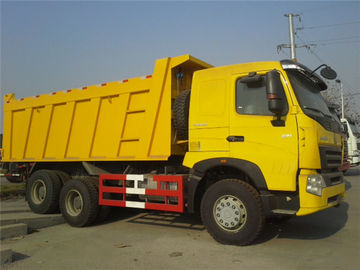

    High Strength Sheet Sinotruk Howo 6x4 Dump Truck Euro 2 371HP 20CBM 0High Strength Sheet Sinotruk Howo 6x4 Dump Truck Euro 2 371HP 20CBM 1High Strength Sheet Sinotruk Howo 6x4 Dump Truck Euro 2 371HP 20CBM 2High Strength Sheet Sinotruk Howo 6x4 Dump Truck Euro 2 371HP 20CBM 3
