Place of Origin: | China |
Brand Name: | HOWO |
Certification: | ISO9001 |
Model Number: | ZZ1257N3247W |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | Negotiation |
Packaging Details: | Nude |
Delivery Time: | 30-45 work days |
Payment Terms: | L/C, T/T |
Supply Ability: | 300 Unit/Units per Month |
Dimension(L*W*H):: | 9125*2496*3850 | Emission Standard:: | Euro2 |
---|---|---|---|
Engine Model:: | WD615.69 | Tires:: | 12.00R20 |
Weight:: | 25000kg | Dirving Type:: | 6*4,LHD Or RHD |
Highlight: | truck mounted concrete pump,mobile cement mixer trucks |
SINOTRUK HOWO 336HP 6X4 Concrete Mixer Truck With 8cbm Cubage And WD Engine
Product description
1. Excellent and high-quality control
2. Long lasting working life time.
3. Suspension is usually American style,or german style
4. Support legs also can be selected
5. Axles usually is 2, 3
6. Brand can be FUWA, BPW, also other brands for selection.
7. We have been engaged in this industry for more than 20 years. High quality has always been our advantage.
Product parameter
MIXER TRUCK SPECIFICATION |
||||
Dimension(Lx W xH)(unloaded)(mm) |
9125×2496×3850 |
|||
Cubage (m³) |
8 |
|||
Approaching angle/Departure angle(°) |
16/26 |
|||
Overhang(front/rear) (mm) |
1500/2240 |
|||
Wheel base (mm) |
3625+1350 |
|||
Max speed(km/h) |
90 |
|||
Curb weight(kg) |
13000 |
|||
Rated Weight(kg) |
11870 |
|||
Engine (Steyr technology, made in China) |
Model |
WD615.69 |
||
Fuel type |
Diesel |
|||
Power, max(kw/rpm) |
336HP |
|||
Emission |
EUROII |
|||
Fuel tanker capacity (L) |
400L |
|||
Transmission |
Model |
HW19710 |
||
Steering system |
Model |
ZF8118 |
||
Front axle |
HF9 |
|||
Rear axle |
HC16 |
|||
Tire |
12.00R20 |
|||
Electrical system |
Battery |
2X12V/165Ah |
||
Alternator |
28V-1500kw |
|||
Starter |
7.5Kw/24V |
|||
Cab |
HOWO76 New face cab(one bed,with air conditioner), all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. |
Packaging & Shipping
1> Packaging: Nude,but waxed before shipment in our factory.
2> Shipping: Small type can be put into 20' or 40' container, big type must be shipped by bulk carriers or ro-ro ship or according to your requirements.
Our Services
1. Factory Supply:
a. one of the biggest special using truck manufacturers in china,
b. more than 300 kinds of special truck for your needing.
2. OEM Ability: can produce according to your demand, the material, the size, the color and the logo is optional for you.
3. Good Quality:
a. has solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,
b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),
c. our brand is china famous brand with good reputation in the market.
4. Good Service:24-hour hotline and email.

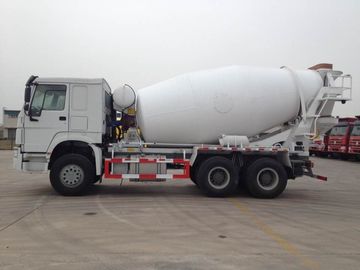

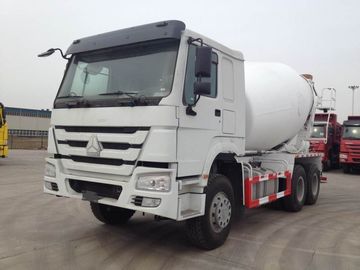

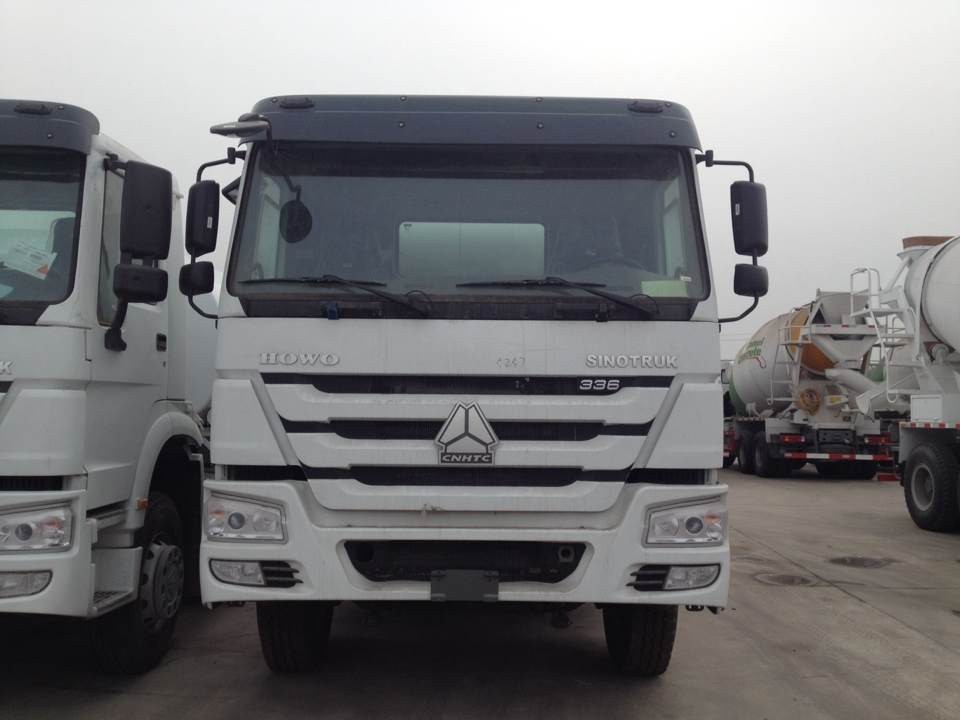

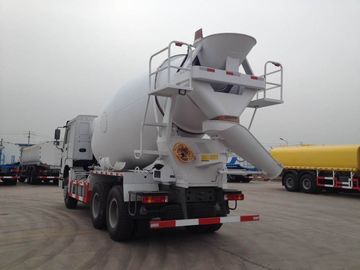

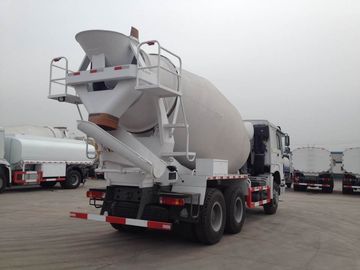

Product picture
