Yellow Road Construction Machinery Wheel Loader SEM 3T SEM636D 2.5m³ Bucket WP6G125E332

Yellow Road Construction Machinery Wheel Loader SEM 3T SEM636D 2.5m³ Bucket WP6G125E332

  • Yellow Road Construction Machinery Wheel Loader SEM 3T SEM636D 2.5m³ Bucket WP6G125E332
  • Yellow Road Construction Machinery Wheel Loader SEM 3T SEM636D 2.5m³ Bucket WP6G125E332
  • Yellow Road Construction Machinery Wheel Loader SEM 3T SEM636D 2.5m³ Bucket WP6G125E332
  • Yellow Road Construction Machinery Wheel Loader SEM 3T SEM636D 2.5m³ Bucket WP6G125E332
Yellow Road Construction Machinery Wheel Loader SEM 3T SEM636D 2.5m³ Bucket WP6G125E332
Product Details:
Place of Origin: China
Brand Name: SEM
Certification: CE /ISO9001
Model Number: SEM636D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Nude
Delivery Time: 25-40 work days
Payment Terms: L/C, T/T
Supply Ability: 100 Unit/Units per Month
Contact Now
Detailed Product Description
Machine Weight: 10200kg Color: Yellow
Bucket Capacity: 1.5-2.5cbm Breakout Force: 113kN
Rated Power: 92/2200kW/rpm Dimension(Long * Breadth * High): 7422*2354*3182mm
Engine: WP6G125E332 Wheel Base: 2740mm
High Light:

road work equipment

,

road construction vehicles

Yellow Road Construction Machine Wheel Loader SEM 3T SEM636D 2.5m³ Bucket WP6G125E332



Product Description



Weichai Engine

93% desert air cleaner reduce earlier wearing 90%

CRS(Common Rail System) make engine lower noise and more efficiency

Double signal throttle pedal more reliable

Gantry-structure engine body, split cylinder head, easy maintenance



Efficient Hydraulic System

Single pump flow shared system makes fuel consumption better

Big drawbar pull and larger breakout force delivers high productivity

Perfect match between machine speed and hydraulic system to achieve high efficiency

Joystick hydraulic control for easy and precise control



Operator Station

Premium operator station with big space and superior visibility

Patented MAC mount provides less noise and more comfort

Adjustable suspension seat

Sliding side window and AC with fresh air circulation provide operator comfort

Joystick control is flexible and convenient

Adjustable air flow outlet delivers better defrost performance



Reliable Drivetrain

Countershaft transmission with upgraded core components provides high reliability

Large rim-pull in 1st gear and higher speed in 2nd gear provide high efficiency for load and carry applications

Power cutoff selection switch ensures stable and safe operation

One stage, 3 elements, torque convert deliver high efficency

Improved transmission shift smooth and comfortable



Advanced Cooling System

High efficiency cooling package

Anti vibration design ensure high reliability and durability even in severe application



Solid Structure

Structures undergo Finite Element Analysis (FEA) and On Machine Stress Analysis (OMSA) to ensure durability

Performance Series (PS) buckets improve loading factor



Serviceability

System pressure test ports are standard easy for service and diagnoise

Big angle engine hood side open door provides easy service access

Torque convertor is isolated from transmission making it easy to service



Safety

Safety design complies with regulatory requirements

Production System (CPS) leveraged in manufacturing process

3-point touching design provides convenient opera-tor entering to cabin

High decibel backup alarm make machine running more safely



Product parameter



Item
Parameters
Unit
Main Specifications
Rated operating load
3000
kg
Bucket capacity
1.5-2.5
Machine weight
10200
kg
Wheel base
2740
mm
Overall Dimension
7422*2354*3182
mm
Max. Drawbar Force
97
KN
Breakout Force
113
KN
Dump Clearance
2989
mm
Transmission
Transmission Type
Countershaft, power shift

Transmission Gears
F4/R2

Torque Converter Type
Single stage, 3 elements

Maker & Type
TR100

Forward I/Reverse I
7.9/7.9

Forward II/Reverse II
14/14

Forward III/Reverse III
25/NA

Forward IV/Reverse IV
39/NA

Engine
Model
WP6G125E332

Rated Power
92
kW
Rated Speed
2200
r/min
Displacement
6.7
L
Implement Hydraulic
Implement System Type
Open center

Boom Raise Time
4.65
s
Hydraulic Cycle Time
8.34
s
System Pressure Setting
18
Mpa
Brake System
Service Brake
Dry&caliper,air to oil control

Parking Brake
Drum/shoe


Steering System
System Type
Shared flow

Steering Pump Type
Gear pump

System Pressure Setting
14
Mpa
Steering Angle (L/R)
36±1
°
Tires
Size
17.5-25

Type
PR

Layer
Bias

Textured Type
L-3

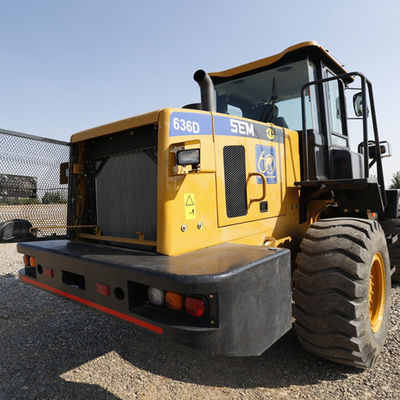

Product picture



Yellow Road Construction Machinery Wheel Loader SEM 3T SEM636D 2.5m³ Bucket WP6G125E332 0Yellow Road Construction Machinery Wheel Loader SEM 3T SEM636D 2.5m³ Bucket WP6G125E332 1Yellow Road Construction Machinery Wheel Loader SEM 3T SEM636D 2.5m³ Bucket WP6G125E332 2Yellow Road Construction Machinery Wheel Loader SEM 3T SEM636D 2.5m³ Bucket WP6G125E332 3Yellow Road Construction Machinery Wheel Loader SEM 3T SEM636D 2.5m³ Bucket WP6G125E332 4
