Shantui Mini Tractor Grader Road Construction Machinery 12 Ton 140HP Hydraulic Gear Pump 140HP SG14

Shantui Mini Tractor Grader Road Construction Machinery 12 Ton 140HP Hydraulic Gear Pump 140HP SG14

  • Shantui Mini Tractor Grader Road Construction Machinery 12 Ton 140HP Hydraulic Gear Pump 140HP SG14
  • Shantui Mini Tractor Grader Road Construction Machinery 12 Ton 140HP Hydraulic Gear Pump 140HP SG14
  • Shantui Mini Tractor Grader Road Construction Machinery 12 Ton 140HP Hydraulic Gear Pump 140HP SG14
Shantui Mini Tractor Grader Road Construction Machinery 12 Ton 140HP Hydraulic Gear Pump 140HP SG14
Product Details:
Place of Origin: Shandong, China
Brand Name: SHAN TUI
Certification: ISO CE
Model Number: SG14
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: Nude
Delivery Time: 30days
Payment Terms: T/T, L/C
Supply Ability: 5000 Unit/Units per Year
Contact Now
Detailed Product Description
Forward Speed(km/h): 38 Reverse Speed(km/h): 23
Dimension(L*W*H): 8016*2380*3170mm Rated Power: 140HP
Draw Bar Pull: 65 KN Maximum Speed: 41 Km/h
Blade Width: 3660mm Condition: New
High Light:

road work equipment

,

road construction vehicles

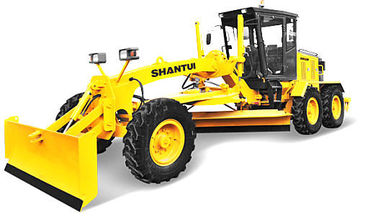

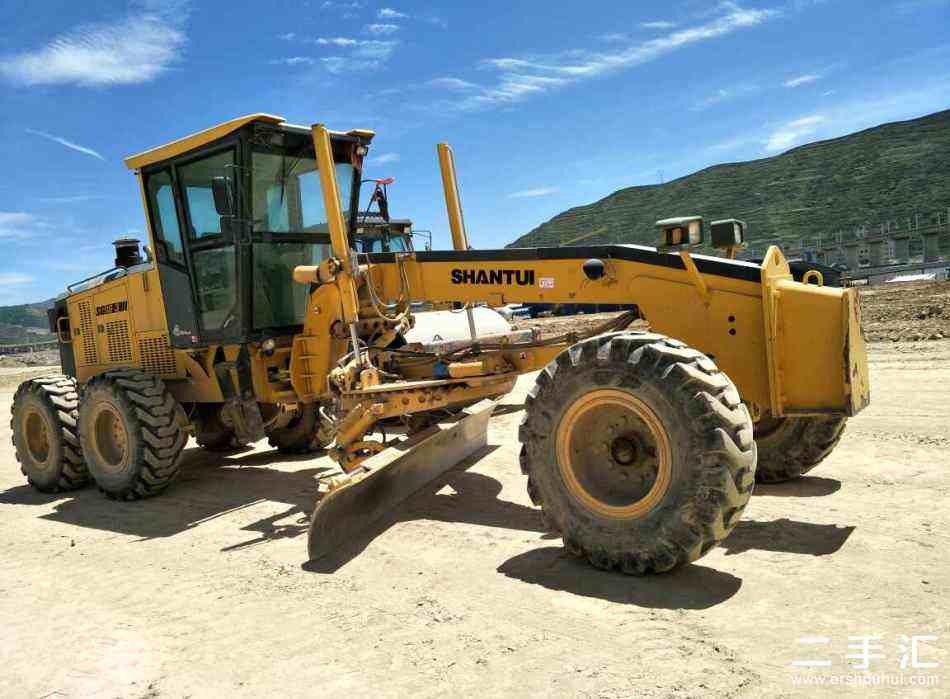

Shantui Official 140HP SG14Motor Grader 12 Ton 140HP Mini Grader Hydraulic Gear Pump



Quick Details

Forward Speed(km/h):38

Reverse Speed(km/h):23

Warranty: 1 Year

After-sales Service Provided: Overseas service center available, Engineers available to service machinery overseas, Overseas third-party support available

Applicable Industries: Construction works

Condition: New

Place of Origin: Shandong, China

Brand Name: SHANTUI

Dimension(L*W*H):8036X2380X3170MM

Certification:CE/ISO

Hydraulic Cylinder Brand : IMPORTED

Hydraulic Pump Brand: IMPORTED

Hydraulic Valve Brand: IMPORTED

Engine Brand: IMPORTED

Product name: SHANTUI SG14 140HP machin motor grader 2019 HOT

Operating weight (t):11.6

Brand:SHANTUI

Blade length:(mm):3660

Model Number:SG14

Vehicle speed (km/h):5.4~39.7

Engine model:6BTAA5.9-C150

Maximum traction (kN):65

Minimum turning radius (mm):6600

Rated power(kW/rpm):112kW/2200rpm



Supply Ability

Supply Ability:

100 Unit/Units per Month

Packaging & Delivery

Packaging Details

Nude

Port

Shanghai Qingdao

Lead Time :

Quantity(Units) 1 - 1 >1
Est. Time(days) 7 To be negotiated



Product Description



SG14 motor grader adopts the external ring gear type working device to achieve higher transmitted torque, larger blade cutting angle, and better material control capability and features the maximum traction force among the domestic like machines. This machine is applicable for large-area leveling, ditching, slope scraping, bulldozing, ripping, land clearing, and snow removing and is an ideally essential machine for large building constructions, water conservancy projects.
1.Cummins engine features reliable performances and high efficiency and energy-saving.
2.The 6-speed electronically controlled shift hydraulic transmission with ZF technology features reasonable speed ratio distribution to ensure that the whole machine has three working gears at choice to ensure operating reliability and flexibility.
3.The box-type structure welded from integral plates features high strength.
4.The extern ring gear adopted features high transmitted torque, larger blade cutting angle, and better material handling capability and is especially useful while handling dry materials and clays.
5.Featuring simple operations and high impact resistance against external forces, it's applicable for the working conditions with high operating volume and severe operating environment.
6.The international advanced hydraulic brake control technologies and international renowned hydraulic units are adopted to ensure braking safety and reliability.
7. The full-hydraulic front wheel steering equipped features small turning radius and high mobility and flexibility.
8. The high-grade full-sealed luxury cab with total visual field and the high-efficiency shock-absorbing seat maximize the operation comfort.
9. The cab and the main frame are connected by shock absorber to ensure the operating safety and reliability.
10. The standard high capacity heating and air conditioning system and the double-layer sealed side doors achieve <84dB noise and effectively reduce the labor strength of the operator.
11. The maintenance-free high performance battery is equipped.
12.The steel engine hood with four doors eases the maintenance and heat dissipation of the engine.
13.The hydraulic oil tank adopts the overhead dismountable filter element, featuring convenient repairs and maintenances.
14.The automatic leveling system can be additionally installed.
15.The special drive tires and the conventional tires are at your choice for the motor grader.



Parameter

Optional parts

1) Automatic leveling device 2) Front bulldozing blade

3) Rear ripper 4) Heavy-duty blade

Length × width × height (mm) 8036×2380×3170 Operating weight (t) 11.6
Engine model Dongfeng Cumins (DCEC) 6BTAA5.9-C150 Rated power(kW/rpm) 112kW/2200rpm
Vehicle speed (km/h) 5.4~39.7 Minimum turning radius (mm) 6600
Blade length:(mm) 3660 Maximum traction (kN) 65






Shantui Mini Tractor Grader Road Construction Machinery 12 Ton 140HP Hydraulic Gear Pump 140HP SG14 0Shantui Mini Tractor Grader Road Construction Machinery 12 Ton 140HP Hydraulic Gear Pump 140HP SG14 1Shantui Mini Tractor Grader Road Construction Machinery 12 Ton 140HP Hydraulic Gear Pump 140HP SG14 2Shantui Mini Tractor Grader Road Construction Machinery 12 Ton 140HP Hydraulic Gear Pump 140HP SG14 3Shantui Mini Tractor Grader Road Construction Machinery 12 Ton 140HP Hydraulic Gear Pump 140HP SG14 4
