500 Liters Self Loading Mobile Concrete Mixer With Pump Hydraulic System

500 Liters Self Loading Mobile Concrete Mixer With Pump Hydraulic System

  • 500 Liters Self Loading Mobile Concrete Mixer With Pump Hydraulic System
  • 500 Liters Self Loading Mobile Concrete Mixer With Pump Hydraulic System
  • 500 Liters Self Loading Mobile Concrete Mixer With Pump Hydraulic System
  • 500 Liters Self Loading Mobile Concrete Mixer With Pump Hydraulic System
500 Liters Self Loading Mobile Concrete Mixer With Pump Hydraulic System
Product Details:
Place of Origin: China
Brand Name: HengWang
Certification: ISO CCC
Model Number: HW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Charging Capacity: 500Liters Speed Of Mixing Drum: 49-50m/s
Outline Dimension: 7011x2441x3310(mm) Weight: 7500kg
Motor Power: 60KW TANKS Water: 2x300 Liters.
Working Cycle Period: 4batches Per Hour Reclaiming Capacity: Hydraulic System
High Light:

truck mounted concrete pump

,

mobile cement mixer trucks

500 Liters Self Loading Mobile Concrete Mixe Concrete Mixer With Pump Hydraulic system



Product Description

1.2,1.8, 2.4,3.2, 4 cubic meters Automatic feeding small concrete mixer truck

Concrete mixer trucks are called concrete mixer trucks. They are special trucks used to transport concrete for building construction. Because of its shape, it is also often called snail truck. A cylindrical mixer drum is mounted on this type of truck to carry the mixed concrete. The mixing drum is always rotated during transportation to ensure that the concrete being conveyed does not solidify. After the concrete is transported, the inside of the mixing drum is usually flushed with water to prevent the hardened concrete from occupying space and making the volume of the mixing drum less and less.

It consists mainly of a mixing drum and its auxiliary support components. The mixing drum is a concrete loading container. It is made of high-quality wear-resistant steel sheet. In order to automatically load and unload concrete, the inner wall is welded with special-shaped spiral blades. The concrete moves in the direction of the spiral of the blade as it rotates and is mixed and agitated during constant lifting and turning. During the feeding and transportation process, the mixing drum rotates forward and the concrete moves inward along the blades. When discharging, the mixing drum reverses and the concrete is discharged outward along the blades. The rotation of the mixing drum is ensured by a hydraulic drive. The load is 3~6 cubic meters. The concrete mixer truck generally adopts the hydraulic pump driven by the automobile engine through the power output shaft, and then the hydraulic motor drives the mixing drum by the high-pressure oil. When the loading amount is 9~12 cubic meters, the hydraulic pump is driven by the vehicle-assisted diesel engine to drive the hydraulic motor. The blades are the main components in the agitator, and damage or severe wear can result in uneven mixing of the concrete. In addition, if the angle of the blade is not reasonable, it will cause the concrete to segregate.

Production Characteristic

a.ITALY LEADING DESIGN,AUTOMATIC FEEDING MIXING SYSTEM

b.HIGH EFFICIENCY OUTPUT,SAVE TIME AND LABOR,SAVE COST

c.THE PERFECT COMBINATION OF MIXING TRUCK AND LOADING CAR

d.180 DEGREES WITH A ROTARY STIRRING TANK,TWO-WAY UNLOADING



 Product parameter


Main Technical Parameters for auto concrete mixer truck
Specification
Unit
Parameter
Actual stirring capacity
m3
1.2m3
Rotary drum capacity
m3
1.4m3
degree of bias
°
16
Rotation speed
r/min
0-14
Direction of rotation

Feed: Clockwise Outfeed: Counterclockwise
Mixer blade

Two spiral blades and four auxiliary blades
Concrete slump
mm
70-260
Hydraulic power Transimission System
pump model

CBGV-4025
Hydraulic Motor model

BMSS-250
Reducer speed ratio

1:10
Water supply System
Water tank capacity
L
540/Self-contained automatic water supply system
Chassis main performance parameters Engine main performance parameters
Engine model/displacement
L
CF4B68G-Z-13B2/CF4C100T-Z-13B2
Model
Direct injection four-stroke water-cooled supercharged diesel engine
rated power
kw/r/min
55KW/2400 78KW/2400
Maximum torque
N.m/r/min
255/1500-1800 380/1500-1800
Maximum travel speed
km/h
24
Minimum turning radius
mm
5000
Grade ability
%
26
Tires

23.5/70-16
Drive form

4x4
Vehicle equipment quality
kg
4580
Maximum loading quality
kg
2800
The maximum total vehicle mass
kg
7380
Overall vehicle dimensions (L * W * H)
mm
6100*1850*3000

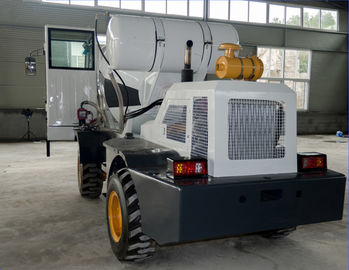

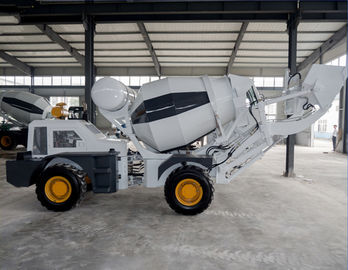

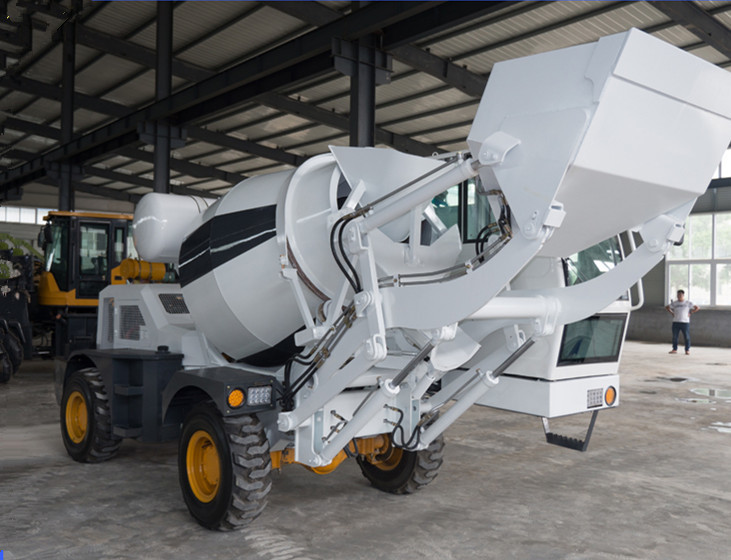

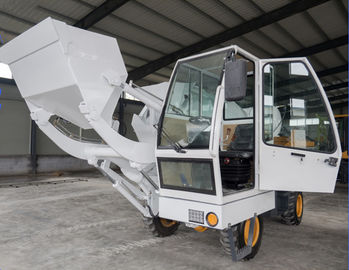

Product picture



500 Liters Self Loading Mobile Concrete Mixer With Pump Hydraulic System 0500 Liters Self Loading Mobile Concrete Mixer With Pump Hydraulic System 1500 Liters Self Loading Mobile Concrete Mixer With Pump Hydraulic System 2500 Liters Self Loading Mobile Concrete Mixer With Pump Hydraulic System 3
