10m³ Diesel 10 Wheelers Concrete Mixer Truck 6x4 With 371HP 25000KG

10m³ Diesel 10 Wheelers Concrete Mixer Truck 6x4 With 371HP 25000KG

  • 10m³ Diesel 10 Wheelers Concrete Mixer Truck 6x4 With 371HP 25000KG
  • 10m³ Diesel 10 Wheelers Concrete Mixer Truck 6x4 With 371HP 25000KG
  • 10m³ Diesel 10 Wheelers Concrete Mixer Truck 6x4 With 371HP 25000KG
  • 10m³ Diesel 10 Wheelers Concrete Mixer Truck 6x4 With 371HP 25000KG
10m³ Diesel 10 Wheelers Concrete Mixer Truck 6x4 With 371HP 25000KG
Product Details:
Place of Origin: China
Brand Name: HOWO
Certification: ISO
Model Number: ZZ1257N3247C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 500 Unit/Units per Month
Contact Now
Detailed Product Description
Power(W): 247000 Maximum Speed: 86 Km/h
Driving Type: 6x4 Agitator Rotation Speed: 0-14 R/min
Weight: 25000kg Dimension(L*W*H): 9580*2496*3920
Mixer Mixing Volume: 10 Cbm Feeding Speed: ≥3 M3/min
High Light:

truck mounted concrete pump

,

mobile cement mixer trucks

White Sinotruk HOWO 10m³ Diesel 10 Wheelers Concrete Mixer Truck With 371HP 25000KG

Product Description

Sinotruk Howo 10m3 Diesel mobile concrete mixer trucks are mainly used for mixing and carrying concrete in long distance. Then can delay concrete primary concretion, avoid concrete stratification and separation, ensure the concrete can be normal at work site.

Our concrete truck mixers adopt European modern style, attractive appearance, rational structure and stable performance. We can provide trucks with different capacity, such as 8m³,9m³, 10m³,12m³,14m³,15m³,16m³,etc.

We can match upper mixer with different chassis truck according to customers’ request, such as DONGFENG, SINOTRUK, SHAMAN, AUAMN, FAW, JAC HONGYAN, BEIBEN, DAYUN, HINO, MISUBISHI, ISUZU chassis, etc.

Product Parameter



Name Unit Parameter Parameter Parameter
Model   CLWDALI5250 CLWDALI5258 CLWDALI5256
Total size mm 8715*2496*3800 9200*2490*3800 9580*2496*3920
Chassis model   HOWO ZZ1257N3247C STERY ZZ1256N3846C HOWO ZZ1257N4048W
Max. G.V.W kg 25000 25000 25000
Front overhang mm 1500 1560 1500
Rear overhang mm 2640/2615 2490 2705
Max. speed Km/h 90 75 86
Engine model   WD615.95,WD615.96 WD615.95(E),WD615.96(E) P11UH.WD615.95(E)
Engine configuration   Water-colder after-cooling EFI diesel/ direct injection diesel Water-colder after-cooling EFI diesel/ direct injection diesel Water-colder after-cooling EFI diesel/ direct injection diesel
Cylinder arrangement   In-line six-cylinder In-line six-cylinder In-line six-cylinder
Engine’s rated power/rotating speed KW/(r/min) 247/2200.276/2200 247/2200.276/2200 240/2100
Mixer volume M3 12.5 14.7 16.8
Mixer mixing volume M3 8 9 10
agitator leaning angle ° 15 13.5 12
Agitator rotation speed r/min 0-14 0-14 0-14
Discharging speed M3/min ≥2.5 ≥2.5 ≥2.5
Water tank volume L 310/400 310/400

310/400

Emission standard   GBⅢ/Euro III GBⅢ/Euro III GBⅢ/Euro III



Main Features


1. Control system
Adopt three-point control mode, by control bar on both rear sides and in-cab device to control the drum easily and conveniently.

2. Hydraulic driving system
Adopt international top brand in hydraulic driving filed, such as Germany, Italian, American brand with integral structure ,excellent performance, to meet customers’ various special need.

3. Water supply system
Have various volume water tanker, can feed the water mixing and cleaning, enlarged water pipe and various feeding solution. Can convenient customer, water feeding solution can use air pressure ,reducer pump ,electronic pump, etc, can meet different requirement.

4. Blade anti-wear protection
Modified logarithmic helical curve type of blade .In light of special need of wear resistance, all blades are mounted with anti-wear protection parts, not only prolonging vehicle life, but also synchronizing the wear of drum and blades.

5. Blade process
Blades are made of special cold-forming pressing molder, welded with drum body by new welding process without obvious trance.

6. Humanization design
Lighting device: human-oriented large power tail working lamp at rear part, not only meeting special requirement for night working ,but also ensuring safety of personnel and vehicle.
Step area: adopt pressed steel and attractive appearance, reasonable handrail ensuring safety.
Self-locking in cab, to prevent from mistake operation and ensure security.
Smart equipment: remote operation, water metering, tank mouth seal etc.

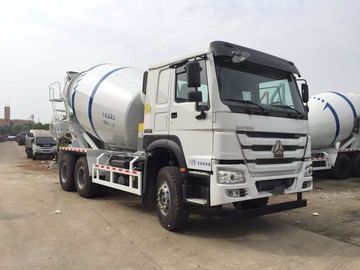

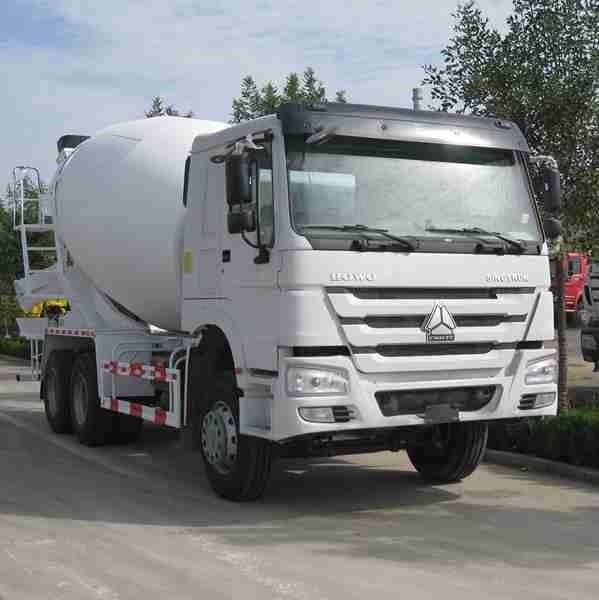

Product Picture



10m³ Diesel 10 Wheelers Concrete Mixer Truck 6x4 With 371HP 25000KG 010m³ Diesel 10 Wheelers Concrete Mixer Truck 6x4 With 371HP 25000KG 110m³ Diesel 10 Wheelers Concrete Mixer Truck 6x4 With 371HP 25000KG 210m³ Diesel 10 Wheelers Concrete Mixer Truck 6x4 With 371HP 25000KG 3
