| Place of Origin: | China |
| Brand Name: | HOWO |
| Certification: | ISO CCC |
| Model Number: | ZZ3257N3647A |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Unit/Units per Month |
| Drive Wheel: | 6x4 | Horsepower: | 351 - 450hp |
|---|---|---|---|
| Transmission Type: | Manual | Fuel Type: | Diesel |
| Gross Vehicle Weight: | 25000 | Wheel Base: | 3625+1350 |
| Rear Axle: | HC16 | Engine: | WD615.69 |
| High Light: | heavy duty tipper trucks,construction dump truck |
||
25 Tons 10 Wheels Diesel Sinotruck HOWO Dump Truck 371HP Optional Color 3625+1350mm
Product description
A dump truck is a vehicle that unloads cargo by hydraulic or mechanical lifting. Also known as the dump truck. It consists of a car chassis, a hydraulic lifting mechanism, a cargo compartment and a power take-off device.
The compartment of the dump truck is tilted backwards and laterally tilted. The piston rod movement is controlled by the operating system, and the backward tilting is more common. The piston rod is pushed to tilt the carriage, and a few are tilted in two directions.
In the civil engineering, the dump truck often works in conjunction with excavators, loaders, belt conveyors and other construction machinery to form the loading, unloading and unloading production lines, and to carry out the loading and unloading work of earthwork, gravel and bulk materials.
Shape classification
Single-bridge dump truck, double-bridge dump truck, flat-head dump truck, pointed dump truck, front four rear eight dump trucks, double-bridge semi-trailer dump trucks, three-bridge semi-trailer dump trucks.
Variety classification
Xiaobawang dump truck, Dolly truck dump truck, 140 dump truck, 145 dump truck, 153 dump truck, 1208 dump truck, Xiaojingang dump truck, Dajingang dump truck.
Link form classification
Straight push type tilt mechanism; link type tilt mechanism.
Use classification
Agricultural dump trucks, mine dump trucks, garbage dump trucks, coal transport dump trucks, construction machinery dump trucks, sludge dump trucks.
Drive mode classification
6x4, 8x4 dump trucks and semi-trailer dump trucks.
Flipping classification
Front lift and rollover dump trucks, as well as two-way dump trucks, are mainly used in construction projects.
Product parameter
| ITEM | UNIT | PARAMETER | ||
| Vehicle | Sinotruck Howo dump truck | |||
| Overall dimensions | mm | 8515×2496×3170 | ||
| GVW | kg | Appro×34280 | ||
| Curb weight | Appro×12280 | |||
| loading weight | Approx22000 | |||
| Wheel base | mm | 3825+1350 | ||
| F/R track base | 2022/1830/1830 | |||
| Approach/departure angle | ° | 19/23 | ||
| Max speed | km/h | 90 | ||
| Tire specification | 12.00R20 / 11 Units | Number of axles | 3 | |
| Front Axle | HF9 | Rear Axle | HC16 | |
| Engine | Manufacturer | China National Heavy Duty Truck Group Co ., Ltd | ||
| Model | WD615.69 | |||
| Emission/kw | 9726ml/247Kw, 336hp | |||
| Emisssion standard | Eu 2 | |||
| Steering | Power, ZF8118 | Cab passenger | 3 | |
| Fuel tank | 300L | Fuel tank material | aluminium alloy | |
| Transmission | HW19710, 10F&2R | Electric System | 24v | |
| Air Condition | yes | CD, Radio, MP3 | ||
| Box dimensions | mm | 5600x2300x1100 (plate side 6, bottom 8) | ||
| Standard configuration |
1, Front and rear axles enhanced leaf spring (10/12) 2, Direct type and power PTO 3, Double frame 4, High bumper (metal) 5, Front hydraulic system lifting 180mm |
|||

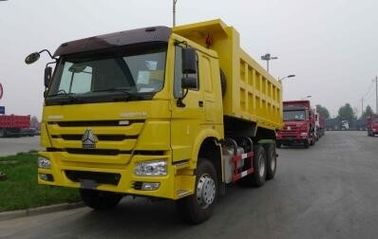

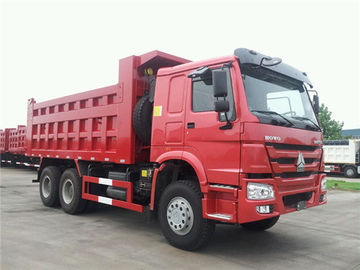

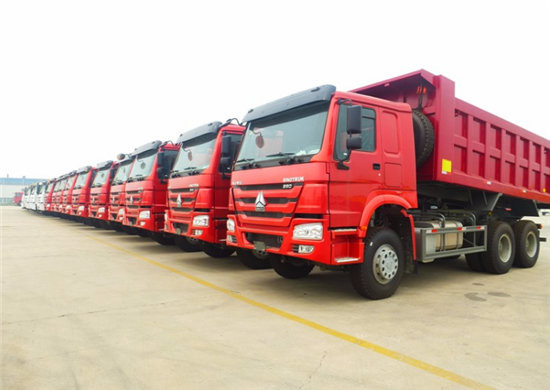

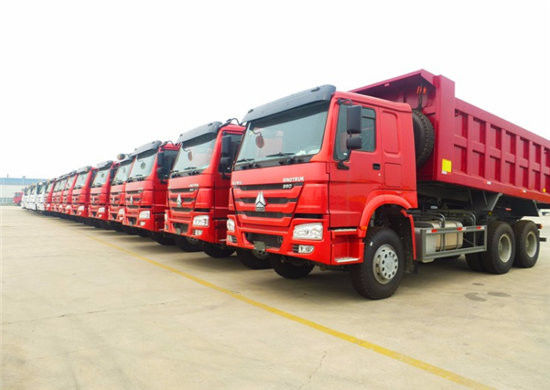

Product picture
