|Place of Origin:||China|
|Minimum Order Quantity:||1 unit|
|Delivery Time:||Shipped in 30 days after payment|
|Payment Terms:||L/C, T/T|
|Supply Ability:||10000 Unit/Units per Year|
|Model Number::||SD32||Fuel Consumption:||245g/kw.h|
|Max. Output:||320hp@2000rpm||Dimension(Long * Breadth * High)::||8650x4130x3725|
|Power Type::||Diesel||Cooling Water::||121L|
dirt moving equipment,
earth digging equipment

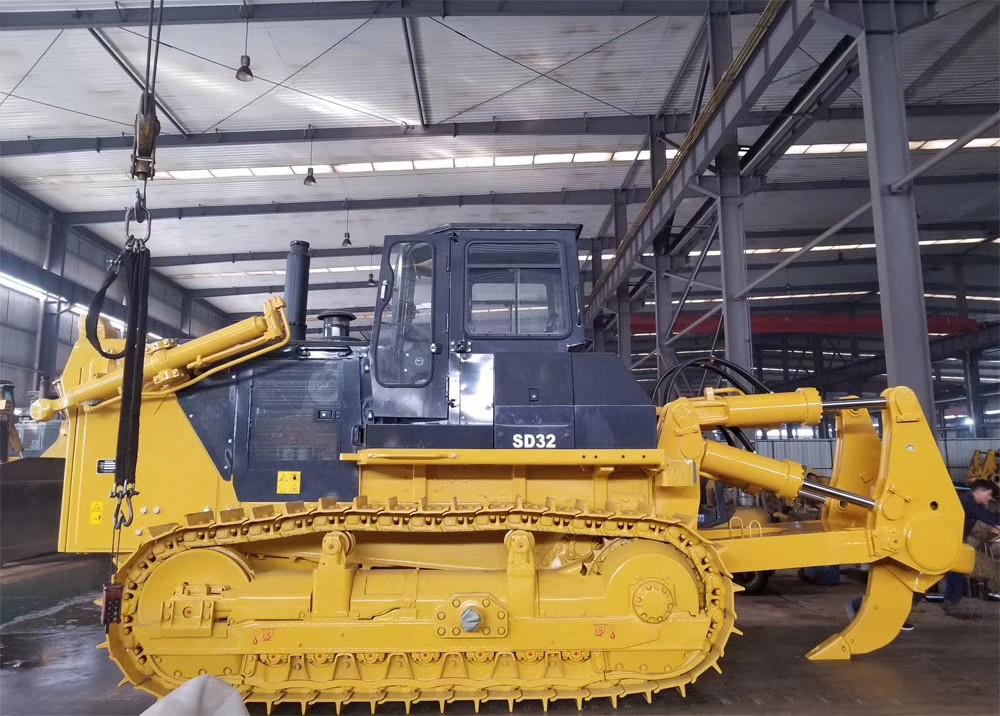

SD32 SHANTUI Crawler Bulldozer With 121L Cooling Water And 320hp@2000rpm Max. Output
The SD32 provides a showcase for Shantui’s prowess with high-efficiency push factors. These medium-sized, but heavy-duty machines designed for earth-moving projects get the biggest, toughest jobs done quickly and efficiently. SD32s are equipped with a hydraulic drive system with hydraulic control technology and an advanced structure, which provide reliable performance and convenient and flexible operation.

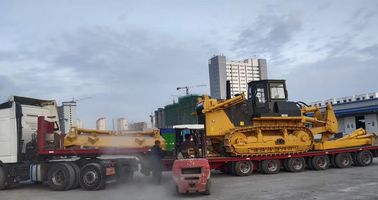

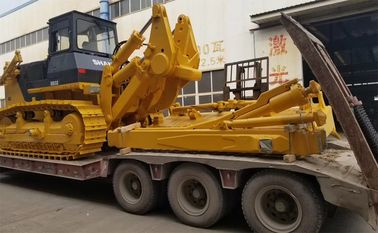

Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.Rich experience and well after-sale service.
Q: I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres, is it ok?
A: We can make the tyres as your requirement to suit your country's need.
Q: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q:I want to be your agent in my country , is that ok?
A: It’s ok, If your quantity is big, we will consider. For the first time 50 units is ok.
Q: How to maintain the trucks?
A: Every day to lubricate the truck, because the working condition is dusty. And you have to change engine oil and air filter when the trucks arrive at about 8000-10000km or 400-500 hours.
Q: Do you have oversea after-sale service?
A: When you have some problems which you can’t solve. we will arrange our engineers to your country to help you.
|SD32 SHANTUI BRAND BULLDOZER|
Turbocharged, intercooled, in line
|Number of cylinders||6|
|Start motor||24V, 11kw|
PT pump head valve
|Governor||Centrifugal , all speed governor|
Forced circulation by
busher tyre fan
Dry, horizontal type
with air cleaner
with servo valve
Brace type tilt cylinder
on right side
Torque converter, 3-element,
Planetary gear, multiple –disc clutch , hydraulically
lubrication by gear pump
Spiral bevel gear ,
|Final Drive||2-stage spur gear, speed reduction, splash lubrication|
Wet type, multi-disc, spring loaded,
hydraulically separated ,
hand and hydraulic control operated.
Wet type, band brake, foot operated
(with hydraulic booster , interconnected
Swing type of sprayed beam,
suspended structure of equalizer bar
No of Carrier rollers
No of Track rollers
|No of Idler(each side)||One|
|Track Shoe||Assembled type||single tooth|
|No of track shoes||41 (each side)|
|Pump type||Gear pump|
|Control valve type||Guiding valve|
Control valve and oil filter
|Bevel gear case||185L|
|Final drive case(each side)||55L|
|Dimension||Length x Width x Height||
|Length x Width x Height||
