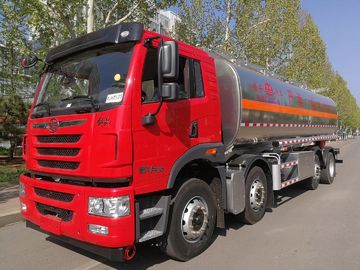

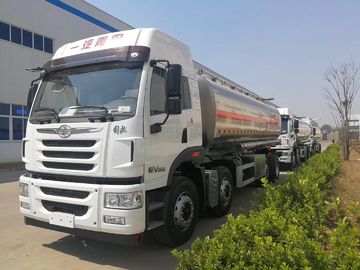

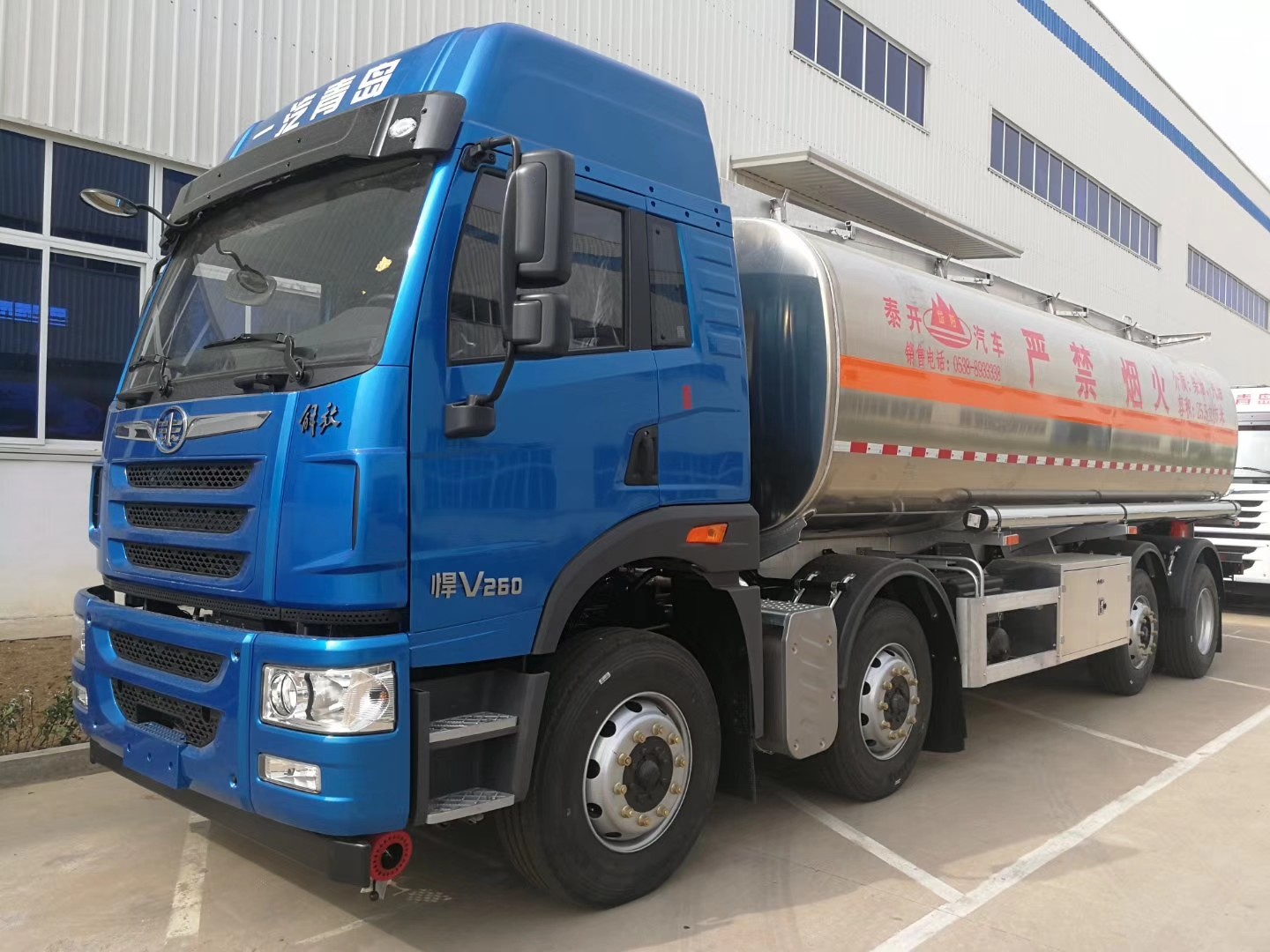

12 Wheelers FAW J5M 8x4 Oil Tanker Truck With CA6DK1 Engine And FAST Transmission

12 Wheelers FAW J5M 8x4 Oil Tanker Truck With CA6DK1 Engine And FAST Transmission

  • 12 Wheelers FAW J5M 8x4 Oil Tanker Truck With CA6DK1 Engine And FAST Transmission
  • 12 Wheelers FAW J5M 8x4 Oil Tanker Truck With CA6DK1 Engine And FAST Transmission
  • 12 Wheelers FAW J5M 8x4 Oil Tanker Truck With CA6DK1 Engine And FAST Transmission
12 Wheelers FAW J5M 8x4 Oil Tanker Truck With CA6DK1 Engine And FAST Transmission
Product Details:
Place of Origin: CHINA
Brand Name: FAW
Certification: CCC
Model Number: CA1310P5K2
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 1000+pieces+month
Contact Now
Detailed Product Description
Tank Material: Carbon Steel, Stainless Steel, Aluminum, Etc Fuel Type: Diesel
Driving Type: 8x4 Transmission: FAST
GVW: 31000kg Engine: CA6DK1
High Light:

fuel tanker trucks

,

oil tanker truck

12 Wheelers FAW J5M 8x4 Oil Tanker Truck With CA6DK1 Engine And FAST Transmission



Description:



FAW 8x4 style oil tanker adopt full-floated high cab, allowable 3 passengers, electric lift glass, manual mirrors, air adapted seats, automatic air conditioner, high efficiency single air filter, manual hydraulic lifting device.



Competitive Advantage:



1. All colors are available according to your choice.
2. Fast production period, and quick arrangement of delivery.
3. Professional Sales Team of trucks. Our target is not selling trucks; we help customers choose the best suitable trucks as per customer’s situation.

4. Warranty: one year

5. Production time: within 35 working days

6. Logistic team, can cargo your truck fast and safety.



Packaging & Shipping



1. The main machine nude, attached parts and tools put into standard export box
2. Within 20 days deliver the goods to main Port
3. Ro-Ro ship or bulk ship or according to customer requiring
4. We have professional forwarding partners



Product specification:



GVW31000kg Driving Type 8x4
Model CA5311GYYB
Cab J5M
Engine(Hp) 280
Power(Kw) 209
Wheelbase 1950+4250+1350
Front/Rear Suspension 1460/2710
Steering Power steering
Approach/departure angle 20/12
Wheels & tire 10.00R20 ,11.00R20
Tire number 12+1
Tank Dimensions(mm) 8900x2450x1800
Cubage (m3) 30
Steel thickness of tank(mm) 6
RHD or LHD optional
Overall Dimensions(mm) 11800×2500×3500
Curb weight (Kg) 13105
Engine Model CA6DK1-26
Horsepower 260
Maximum output Kw 209
Maximum torque N.m
Type 6 cylinders, in-line, 4-stroke, turbo inter-cooling, electronically controlled common rail, diesel engine
Displacement 7.146L
Dalian diesel engine, Euro 2,Euro 3, Euro 4 ,Euro 5 selective
Driving passenger 2,3
Transmission FAST 9 speed forward and one reverse, manual
Front Axle 7T
Rear Axle 13T with double
Brake System air brake
Color and LOGO customized
Electric system 24V
Tank material Carbon steel, stainless steel, aluminum, etc. alloy, etc.
Standard configuration oil pump, two aluminum alloy flow valves, tool box, manhole, climbing ladder, fire extinguisher, oil hose.
Optional configuration flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system, divided into several compartments.
Delivery date Within 20 days after receipt advance
Packing Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
