600P 4X2 6 Wheeler Mini Mining Dump Truck Isuzu Engine Euro 5 120HP With 2.2M3 Body Capacity

600P 4X2 6 Wheeler Mini Mining Dump Truck Isuzu Engine Euro 5 120HP With 2.2M3 Body Capacity

  • 600P 4X2 6 Wheeler Mini Mining Dump Truck Isuzu Engine Euro 5 120HP With 2.2M3 Body Capacity
  • 600P 4X2 6 Wheeler Mini Mining Dump Truck Isuzu Engine Euro 5 120HP With 2.2M3 Body Capacity
600P 4X2 6 Wheeler Mini Mining Dump Truck Isuzu Engine Euro 5 120HP With 2.2M3 Body Capacity
Product Details:
Place of Origin: CHINA
Brand Name: ISUZU
Certification: ISO 9000
Model Number: MINI DUMP TRUCK, 600P SERIES
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: 20000USD
Packaging Details: nude package
Delivery Time: 30 days after receive deposit
Supply Ability: 200units per year
Contact Now
Detailed Product Description
COLOR: ANY COLOR YOU REQUIRED LIFT CYLINDER: MIDDLE LIFTSYSTEM
ENGINE EMISSION: EURO 5
High Light:

diesel dump truck

,

sinotruk howo dump truck

,

euro 5 120hp mining dump trucks

ISUZU 600P 4X2 6 WHEELER MINI DUMP TRUCK ISUZU ENGINE EURO 5 120HP WITH 2.2M3 BODY CAPACITY



ISUZU brand dump truck(600P)

Model: QL3040ZA5FA

Cabin: one row cabin, with AC

Engine: 4KH1CN5HS, 120hp,EURO5

4 cylinder, turbo charger.

Engine displacement:2.999L

Overall size:5035×1945×2350(mm)

Cargo body size: 3260×1780x380mm=2.2M3

Wheelbase:2765mm

Total weight: 6580KG

Kerb weight:2950KG

Tire:Tires:7.00R16

With ABS

With power steering

Max.speed: 110KM/H



7.00R16 TIRE PHOTO



ISUZU LOGO ON STEERING

600P 4X2 6 Wheeler Mini Mining Dump Truck Isuzu Engine Euro 5 120HP With 2.2M3 Body Capacity 0



CARGO BODY REAR DOOR



LIFT CYLINDER

600P 4X2 6 Wheeler Mini Mining Dump Truck Isuzu Engine Euro 5 120HP With 2.2M3 Body Capacity 1



FUEL TANK GUARD

600P 4X2 6 Wheeler Mini Mining Dump Truck Isuzu Engine Euro 5 120HP With 2.2M3 Body Capacity 2

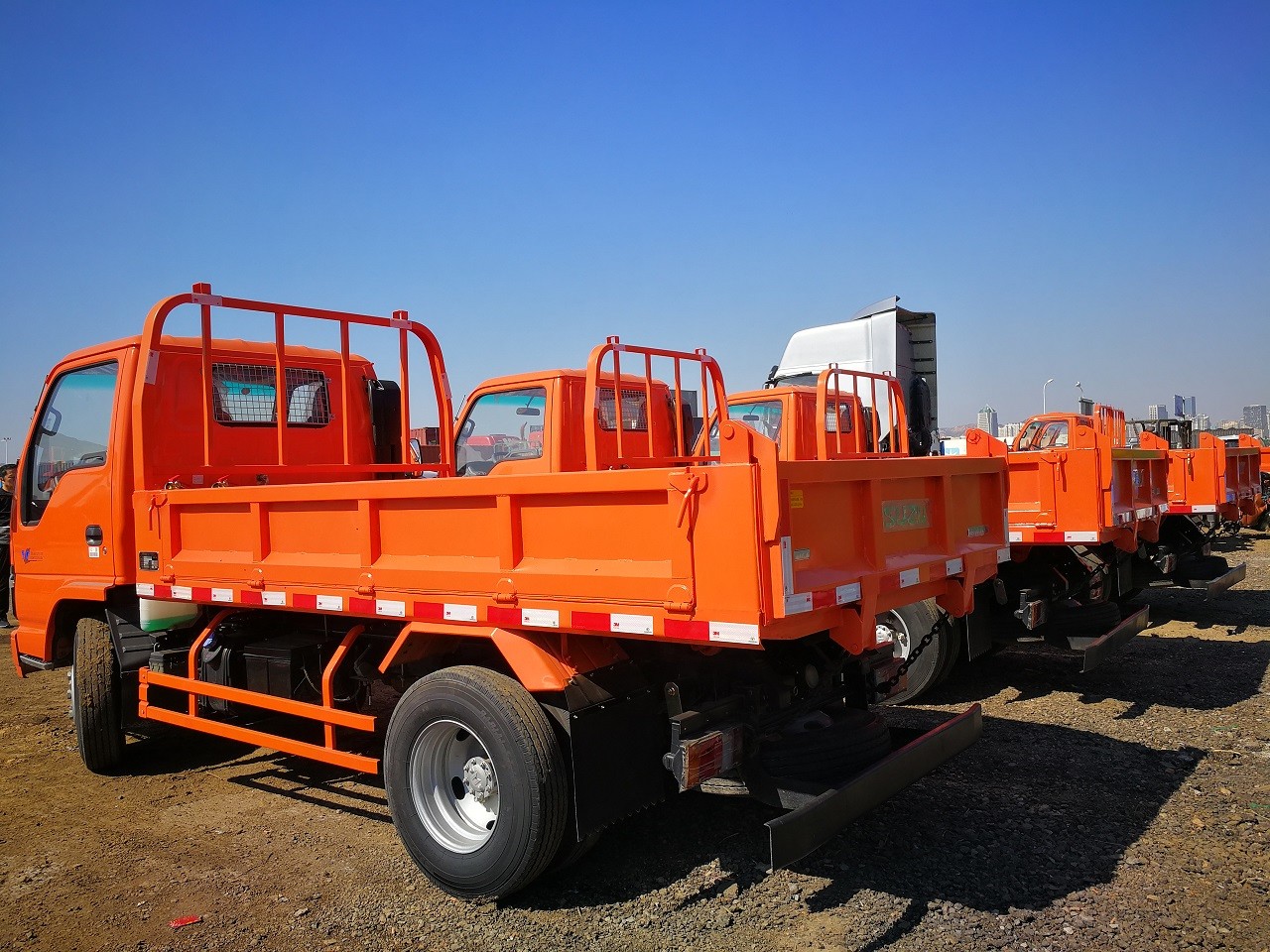

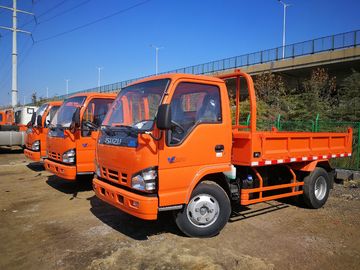

MORE TRUCK PHOTOS



600P 4X2 6 Wheeler Mini Mining Dump Truck Isuzu Engine Euro 5 120HP With 2.2M3 Body Capacity 3



Regular maintenance

Air cleaner

The use of air filters with blocked filter elements will not only reduce engine output, but also increase fuel consumption and black smoke, and even make the turbocharger leak oil.

Therefore, air filters should be maintained in accordance with the following methods.

(The following translation is from above left signal to right signal)



Replacement of filter element

1, release the 3 bayonets and remove the cover of the air filter.

2, pull out the filter cartridge.

3, wipe the dust on the inside of the air cleaner shell, the outer cover and the surface of the gasket.

4, wipe the dust on the drain valve at the bottom of the air cleaner.

4,The filter element is carbon and oil stain.

1, dilute the filter cleanser with water, immerse the filter element in the cleaning fluid for about 20 minutes.

2, remove the filter cartridge and flush it with running water. Water pressure should not exceed 280 pa.

3, when the cleaned filter element is placed in a well ventilated area, the fan can be used when drying the filter element. However, no compressed air or usable fire can be used to shorten drying time. The natural drying of filter elements usually takes two or three days. Therefore, it is better to use spare filter cartridge.

Oil filter replacement

use the special spanner of the oil filter to reverse the oil filter in counterclockwise direction and remove i

  1. Wipe the mating surface of the top cover of the oil filter with a cloth head, so that the new oil filter can be well installed on the mating surface.

  2. Wipe the mating surface of the top cover of the oil filter with a cloth head, so that the new oil filter can be well installed on the mating surface.
