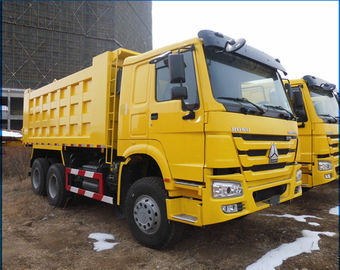

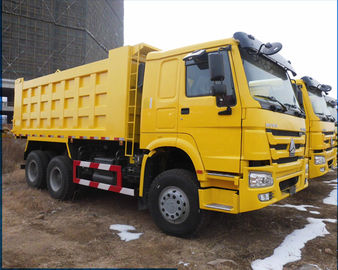

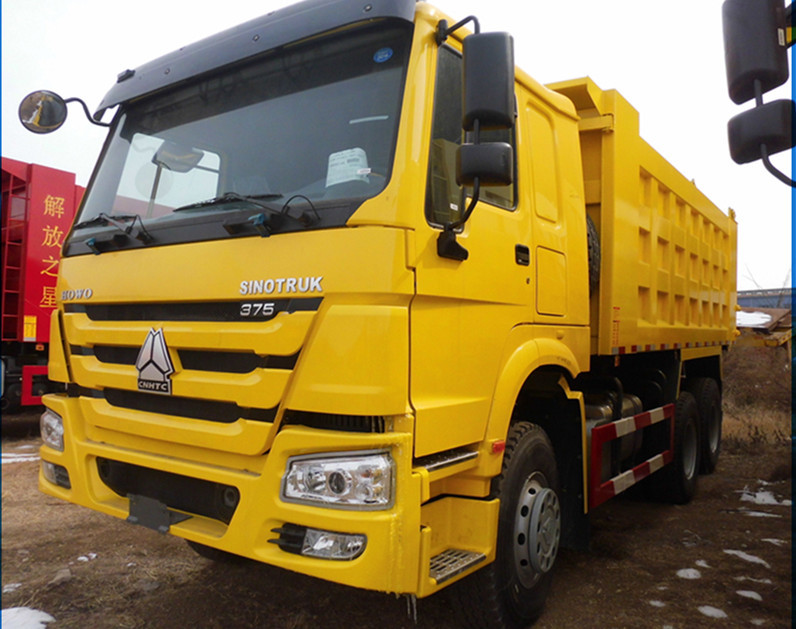

Yellow Color 371hp Heavy Duty Dump Truck 6x4 With ZF8118 Steering

Yellow Color 371hp Heavy Duty Dump Truck 6x4 With ZF8118 Steering

  • Yellow Color 371hp Heavy Duty Dump Truck 6x4 With ZF8118 Steering
  • Yellow Color 371hp Heavy Duty Dump Truck 6x4 With ZF8118 Steering
  • Yellow Color 371hp Heavy Duty Dump Truck 6x4 With ZF8118 Steering
Yellow Color 371hp Heavy Duty Dump Truck 6x4 With ZF8118 Steering
Product Details:
Place of Origin: CHINA
Brand Name: SINOTRUK HOWO
Certification: CCC
Model Number: ZZ3257N3647A
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: Nude
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 500 units/month
Contact Now
Detailed Product Description
Model:: ZZ3257N3647A Tires:: 12.00R20
Cabin:: HW76 Frame:: 8+8/300
Color:: Yellow Rear Axle:: HC16
High Light:

heavy duty tipper trucks

,

construction dump truck

Yellow Color Sinotruk Howo 6x4 371hp Heavy Duty Dump Truck With ZF8118 Steering



Description:



1. Chinese famous heavy duty chassis brand in China---Sinotruk

2. Low oil consumption with strong horse power 371hp
3. Large load capacity 40-45ton.

4. Cabin: HW70 with no sleeper bed; HW76 with one sleeper bed. HW79 with two sleeper beds. With air conditioner.
5. LHD or RHD are optional
6. Tipper body: Size could be customized as requirement.
7. One year for three key parts (engine ,gear-box, axle)



Packing:



Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.Rich experience and well after-sale service.



Our advantages:



Q: I want to transport the truck by container, is it ok?

A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q: How about your product quality?

A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q: I want to be your agent in my country , is that ok?

A: It’s ok, If your quantity is big, we will consider. For the first time 50 units is ok.

Q: I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres, is it ok?

A: We can make the tyres as your requirement to suit your country's need.



Main Discription:



Model

ZZ3257N3447A

Condition

New

Drive type

6×4

Brand

HOWO Dump Truck

Steering Wheel Type

LHD(Left hand drive) (RHD is in option)

Overall Dimension(mm)

7835×2496×3170

The total mass(Kg)

25000

Kerb weight(kg)

12390

Wheel base(mm)

3425+1350

Dimension of cargo body(mm)

L×W×H

5200×2300×1500

Thickness of steel plate

Bottom: Side:

Capacity



Tipping system

HYVA Front tipping system

Fuel Type

Diesel

Engine

Type

SINOTRUK brand,WD615.47 Inline six-cylinder, water-cooled, four-stroke,

turbocharged inter-cooled

Direct injection

Emission standard

EURO II

Horse power

371hp

Maximum output

273Kw @ 2200 rpm

maximum torque

1500N.m

Displacement(L)

9.726

Cabin

HW76 Cabin with two seats, and one sleeper, air conditioner,

Steering

German hydraulic steering with power assistance

Transmission

Manual Type. HW19710 Sinotruk 10 Speed Transmission,10 forward and 2 reverse

Clutch

Ø430mm dry diaphragm spring diameter clutch Hydraulic boosting

Front axle

HF9(9 ton), plate (disc) brake

Driving axle

HC16(16 ton) Heavy hub reduction drive axle

Brake

Service brake: Brake gap can be adjusted automatically, double circulation air brake system

Parking brake: Potential springs pressing on middle and reel wheels

Engine brake: Engine exhaust brake(EVB)

TYRE Size

12.00-20 tires No. tire: 10+1 spare

Suspension system

Leaf spring type

Leaf Spring of Front/Rear

10/12

Air condition includes

YES

Fuel tank

300L

Color

As the customer request
