| Place of Origin: | China |
| Brand Name: | HOWO |
| Certification: | ISO |
| Model Number: | ZZ3317N3867 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Unit/Units per Month |
| Drive Wheel: | 8x4 | Transmission Type: | HW19710 |
|---|---|---|---|
| Capacity (Load): | 40t | Emission Standard: | Euro 2 |
| Cabin: | HW76 | Front Axle: | HF9 |
| High Light: | heavy duty tipper trucks,construction dump truck |
||
Green Color SINOTRUK ZZ3317N3867 12 Wheels Dump Tipper Trucks With ZF8198 Steering
Product Description
Strength casting legend, advanced production technology ensures the first-class quality level,
Professional heavy truck production lines of international standards create the most trusted card products for you.
SINOTRUK has many specialized international advanced level production line-frame, body assembly production and entire vehicle assembly, inspection and so on, and all use of advanced international, domestic leading production, testing facilities, high degree of automation, all can provide a strong support for the building of the model.
Vehicle assembly line is the longest general assembly line of heavy commercial vehicles in Asia. The whole production line is composed of pre line assembly line, trim line, engine assembly line and axle assembly line etc. SINOTRUK has the most advanced fully automatic nut tightening machine, pipe packing machine, transmission shaft packaging and assembly facilities and various liquid filling machines, electrical testing instrument and so on. Guarantee the quality of the vehicle assembly strongly.
Product parameter
| DUMP TRUCK/ HOWO | |||
| Model | ZZ3317N3867 | ||
| Manufacturer of Chassis | SINOTRUK | ||
| Drive wheel | 8×4 | ||
| Wheel Base | mm | 1800+3800+1350 | |
| Overall Dimension Length×Width×Height | mm | 10610* 2496 * 3800 | |
| GVW | Kg | 31000 | |
| Kerb Weight | Kg | 15250 | |
| Max Speed | Km/h | 90 | |
| Oil tank | L | 300 (Aluminium Alloy) | |
| Engine | Model | D12.42 | |
| Type/Displacement | Vertical in-line, 6 Cylinder, Turbo-charge& inter cooling, 4 stroke/ 9726mL | ||
| Emission Standard | EURO II | ||
| Rated Power/Speed | kw/r/pm | 309/2200(420HP) | |
| Max Torque/Speed | N.m/r/pm | 1500/1100~1600 | |
| Chassis | Cabin | HW76 cabin, one sleeper, air-conditioner, | |
| electrical hydraulic lifting system | |||
| Gear Box |
HW19710, 10forward speeds, 02 reverse speeds |
||
| Steering Wheel | ZF8118 | ||
| Clutch | φ430 | ||
| Axle |
Rear axle: HC16, Front axle: HF9 With Drum Brake , without ABS |
||
| Size& Number of Tyre/ | 12.00R20 Radial Tyre/ 12+1 | ||
| Truck Body | Lifting System | Front lifting | |
| Inner dimension & thickness |
7400×2300×1500mm, Bottom: 8mm, Side: 6mm |
||
| Shape of Cargo/Material | rectangle shape/ Q235 | ||
FAQ
1,What’s the qualify assurance we provided and how do we control quality?
1). Established a procedure to check products at all stages of the manufacturing process from raw materials to final products. Beside, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2).100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
2, How do you transport the machines and parts?
1),We transport the machines in nude or Polish with wax before shipping.
2),Spare parts delivery by container or packed with export standard box send by DHL,TNT,UPS and others Express delivery.
3, Can you satisfy my special requirement?
Yes, We can make customized design to utmost meet your special requirements.

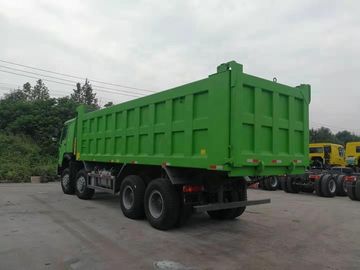

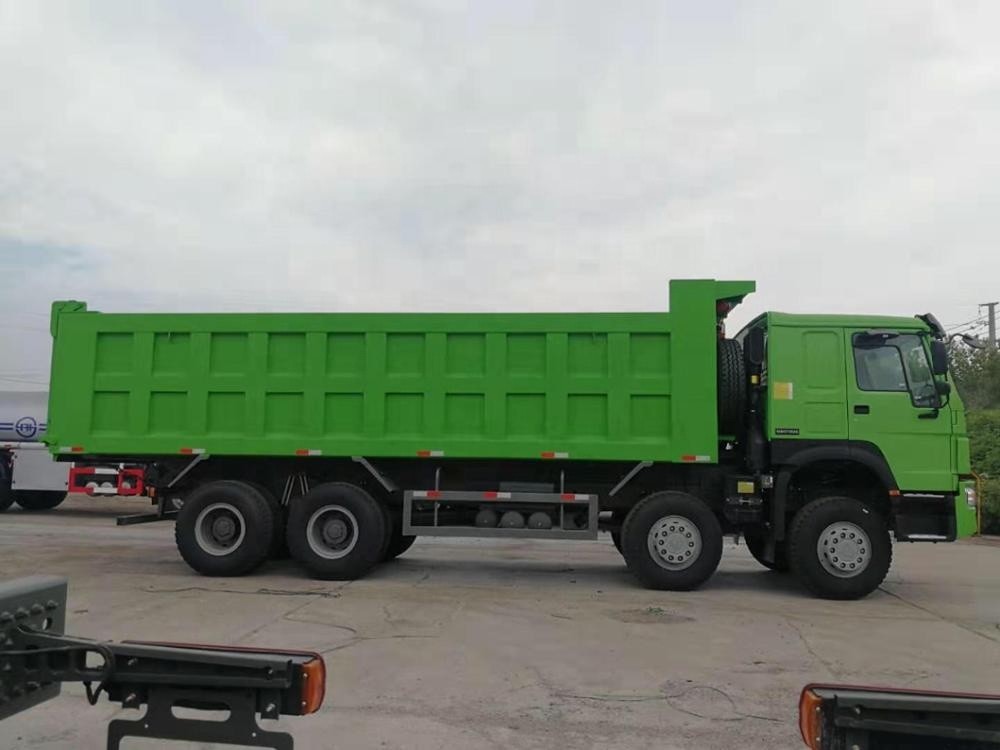

Product picture
