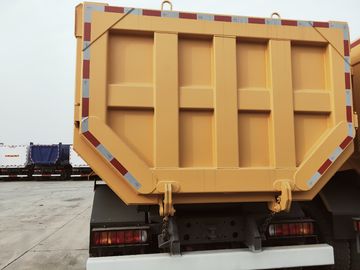

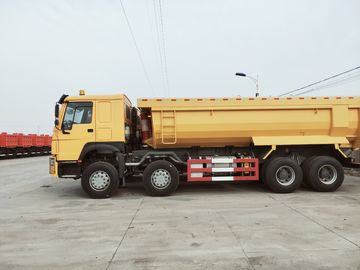

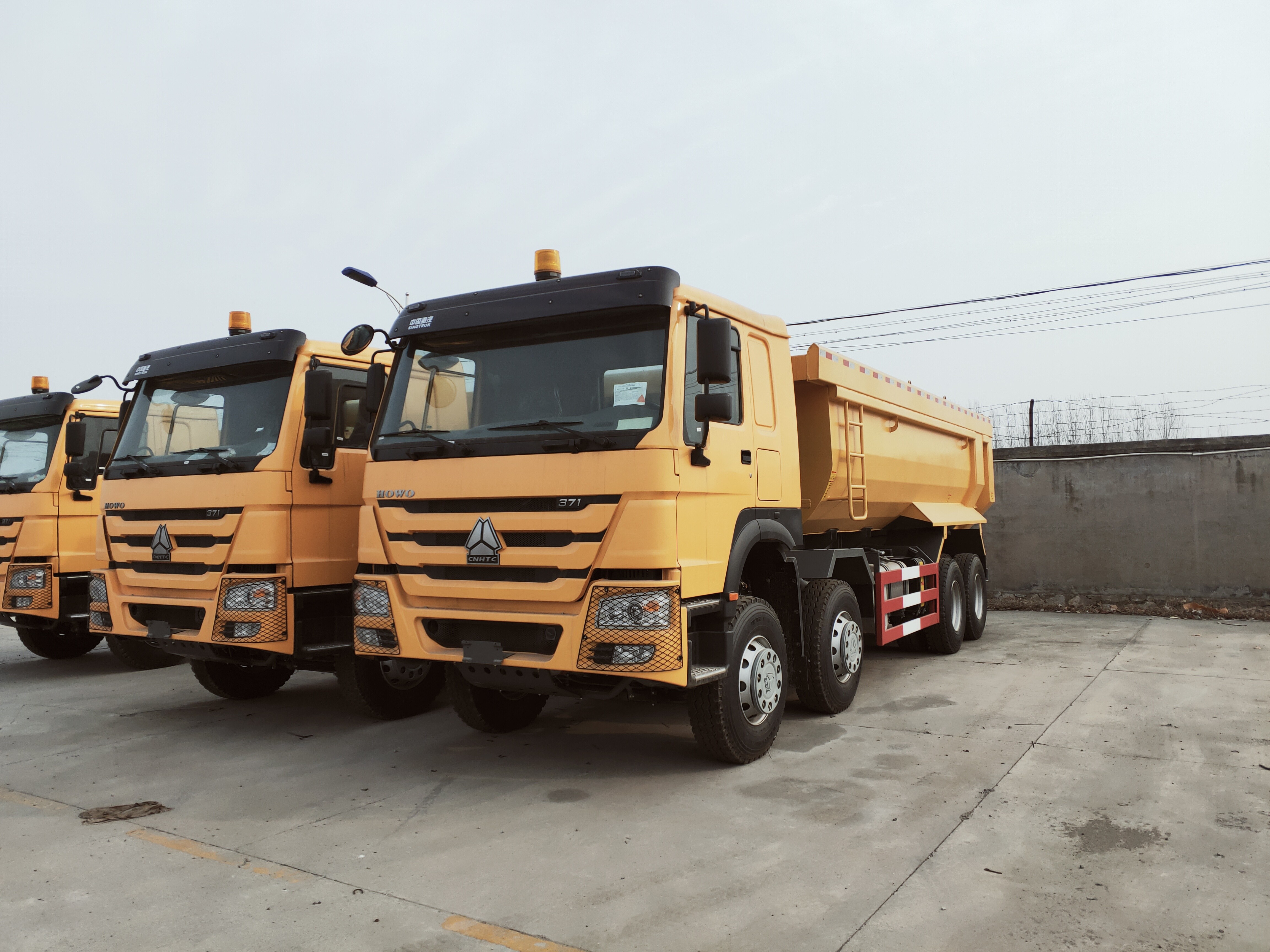

Heavy Duty Sinotruk Dump Truck With Engine And ZF8118 Steering ZZ3317N3867W

Heavy Duty Sinotruk Dump Truck With Engine And ZF8118 Steering ZZ3317N3867W

  • Heavy Duty Sinotruk Dump Truck With Engine And ZF8118 Steering ZZ3317N3867W
  • Heavy Duty Sinotruk Dump Truck With Engine And ZF8118 Steering ZZ3317N3867W
  • Heavy Duty Sinotruk Dump Truck With Engine And ZF8118 Steering ZZ3317N3867W
Heavy Duty Sinotruk Dump Truck With Engine And ZF8118 Steering ZZ3317N3867W
Product Details:
Place of Origin: China
Brand Name: SINOTRUK
Certification: ISO/CCC
Model Number: ZZ3317N3867W
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Nude
Delivery Time: 35 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 UNITS/MONTH
Contact Now
Detailed Product Description
Cabin:: HW76 Gearbox:: HW19710
Front Axle:: HF9 GVW:: 31000kg
Model:: ZZ3317N3867W Color:: Optional
High Light:

heavy duty tipper trucks

,

construction dump truck

12 Wheeler Heavy Duty Sinotruk Dump Truck With Euro 2 Engine And ZF8118 Steering



Description:



1. The carriage of bulk items must be used with bucket carriages;

2. Special attention should be paid to the height and lifting stability of the carriages when the carriage length is greater than 5.6 meters;

3. It is not possible to transport the earth stone party with the coal transport. General coal vehicle height is 1.6 ~ 1.6 meters, the length of the how this type of vehicle design is a lightweight goods (specific gravity is less than 1.2), used to transport conditions may have problems with lifting poor stability, serious can cause lifting rollover accident;

4. Do not use the shovel carriage to transport the sticky goods such as silt and clay. The structure of the dipper compartment makes the sticky goods more difficult to unload;

5. When selecting a dump truck for iron ore powder, it is necessary to make a statement with the manufacturer to select a carrier for iron ore powder.

6. When used for paving asphalt transportation, the lifting mechanism requires slow lowering device.



Packing:



Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.The main machine nude, attached parts and tools put into standard export box.Within 20 days deliver the goods to main Port.Ro-Ro ship or bulk ship or according to customer requiring.We have professional forwarding partners.


Advantages:



1) Competitive Factory Price and Excellent Quality
(2) More than 40 years' experience as a manufacturer, more than 12 years exporting experience.
(3) Products Quality Certification SGS CCC ISO
(4) Perfect after-sale service
(5) Customized products available with us
(6) Export to more than 30 countries and regions
(7) One year quality guarantee or within 30000km, which comes first.
(8) Other spare part could be supplied by OEM at cost prices.
(9) Regularly callback to know the vehicle's working status.
(10) The overseas engineers are always ready to deal with unexpected needs.



Specification:



Traction type
8×4
Drive System
LHD(Left Hand Drive)
Cabin
HW76, one sleeper, Air Conditioner
Engine
Brand
Model
Rated power
Engine displacement
Gearbox
Manual (HW19710)
Clutch
Ф430 Diaphragm type
Steering
ZF 8118
Axle
Front
Rear
Max. running speed (km/h)
77
Tire
12.00R20 radial tire (12+1)
Frame
8+8/300
Fuel tank
300L
Kerb weight (kg)
15450
Wheel base (mm)
1800+3800+1350
Overhang (mm) (front/rear)
1500 / 2095
Approach / departure angle(°)
19/18
Dump body
Size(L*W*H)
Thickness
Lifting system
Overall dimensions(L*W*H)
10545x2500x3450mm

 Heavy Duty Sinotruk Dump Truck With Engine And ZF8118 Steering ZZ3317N3867W 0Heavy Duty Sinotruk Dump Truck With Engine And ZF8118 Steering ZZ3317N3867W 1
