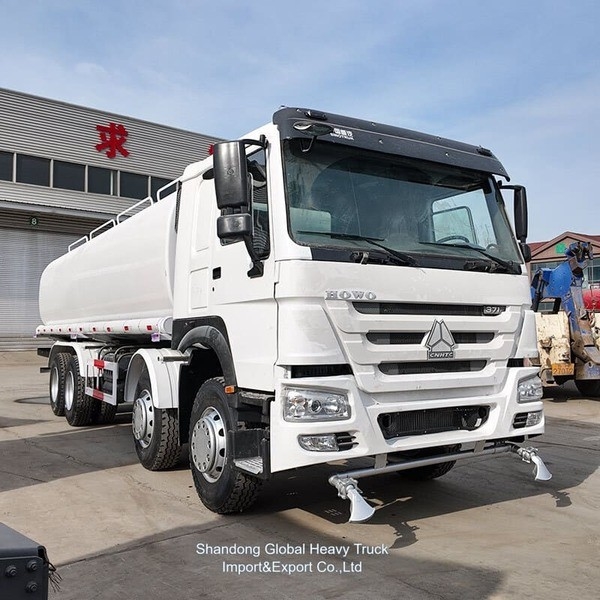

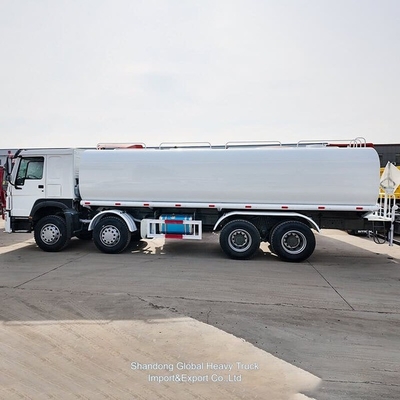

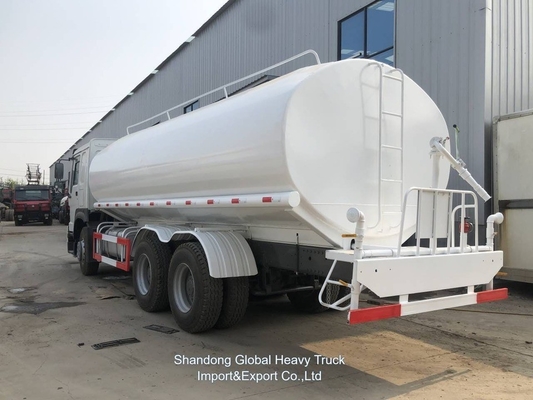

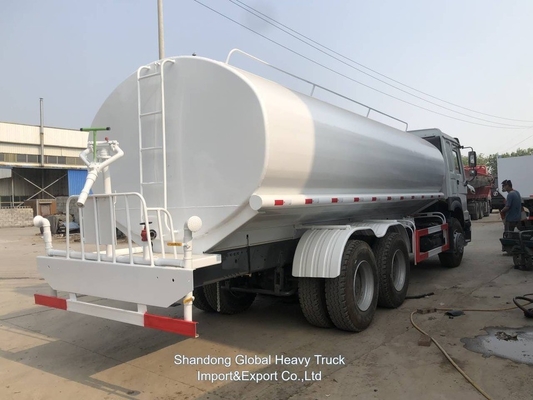

HOWO 8X4 Light Sprinkling Water Tanker Truck Water Tank Bowser Truck

Engine and Transmission

• Engine: Usually a high - horsepower engine like the Sinotruk WD615.47, offering 371 HP and meeting Euro II emission standards.
• Transmission: A 10 - forward and 2 - reverse gear transmission, paired with a ZF8098 hydraulic power - assisted steering system.

Chassis and Running Gear

• Chassis: Robust and stable, capable of carrying heavy - duty water tanks and operating on various terrains.
• Axles: Front axle load capacity of 7,000 kg and rear axle load capacity of 16,000 kg. Fitted with 12R22.5 tubeless tires for good road handling.

Applications

Advantages

• The truck is built with high - quality materials and components, ensuring durability and reliability for long - term stable operation.
• Its large - capacity water tank and powerful pumping system allow it to cover large areas in a short time, improving work efficiency.
• The user - friendly control system enables easy management of water flow and spray patterns.
• Customization options are available to meet specific user requirements.



  Design Standards				GB18564.1-2006 'Technical Requirements for Metal Atmospheric Pressure Tank Vehicles for Road Transport of Liquid Hazardous Goods - Part 1'
  Loading Medium				Class 3 Hazardous Materials Medium (FL Type Vehicle)
  Loading and Unloading Method				Bottom Loading and Unloading, and Top Direct Filling
  Overall Vehicle Dimensions (mm)				11730 ×2550×3650
  Total Mass (kg)				32000
  Curb Weight (kg)				10805
  Rated Load Capacity (kg)				21000,21065
  Tank Body
  Declared Tank Volume				30.9 Cubic Meters
  Actual Tank Volume				31 Cubic Meters (referring to the volume when filled with water)
  Tank cross-section				Elliptical (as per announcement)
  Cylindrical body				Aluminum alloy 5182, 6mm
  End head				Aluminum alloy 5182, 6mm
  Anti-surge plate				Aluminum alloy 5182, 6mm
  Piping and accessories
  Manhole and quantity				Two explosion-proof manholes made of European standard aluminum alloy
  Breather valve				Aluminum alloy material, 2 sets
  Bottom loading and unloading				Bottom loading port
  Oil and gas recovery				Equipped with an oil and gas recovery system
  Overfill prevention				Equipped with an overfill prevention system
  Safety bottom valve				4-inch aluminum alloy smart closing underwater valve, one piece
  Discharge valve				Middle right side
  Accessories
  Tank top guardrail		Segmented lifting guardrail, tank top anti-slip net
  Hose storage box		Stainless steel hose box, one piece on each side
  Discharge hose		L=8000, 3-inch steel wire oil discharge pipe
  External climbing ladder		Internal climbing ladder of the tank, external climbing ladder
  Toolbox		Aluminum alloy
  Spare tire rack
  Mudguard		Factory-supplied aluminum alloy integral (modular stamping type)
  Side guardrail		Factory-supplied aluminum alloy profiles
  Rear bumper		Factory-supplied aluminum alloy profiles
  Fire protection device		8 kg fire extinguisher, 2 pieces in total
  Anti-static device		1 anti-static grounding strap, 1 anti-static junction box
  Chassis section
  Chassis model			CA5320GYYP62K1L6T4E6   Category II   China First Automobile Group Corporation
  Engine			CA6DK2E35E65  Great Wall 350 horsepower
  Tires			12R22.5 18PR
  Electrical system
  Lighting fixtures	24V system, 7-pin socket, LED lighting fixtures
  Electrical system	Explosion-proof junction box
  	The rear bumper is equipped with turn signals, brake lights, reverse lights, running lights, and fog lights on both sides
  Line	All wires are enclosed in corrugated tubing.
  Braking system
  Relay valve					Factory standard
  ABS					Factory standard
  Others					Factory standard
  Corrosion protection
  Inner surface of the tank					Cleaning
  Paint					Natural color of aluminum alloy
  Label
  Nameplate					Factory standard, announcement nameplate
  Customer label					Manufactured according to customer requirements
  Sign					Factory standard, diamond sign and square sign
  Main identification of the tank					Orange reflective tape on both sides and the rear of the tank
  Red and white reflective label					3M reflective sticker
  Company logo					CLW
  Documents/tools accompanying the vehicle
  Tank inspection report					Tank body inspection report
  Certificate of conformity					Vehicle certificate of conformity
