Dongfeng HOWO High-Capacity  Truck  Solutions Sludge Suction Truck, Sewage Treatment Vehicle

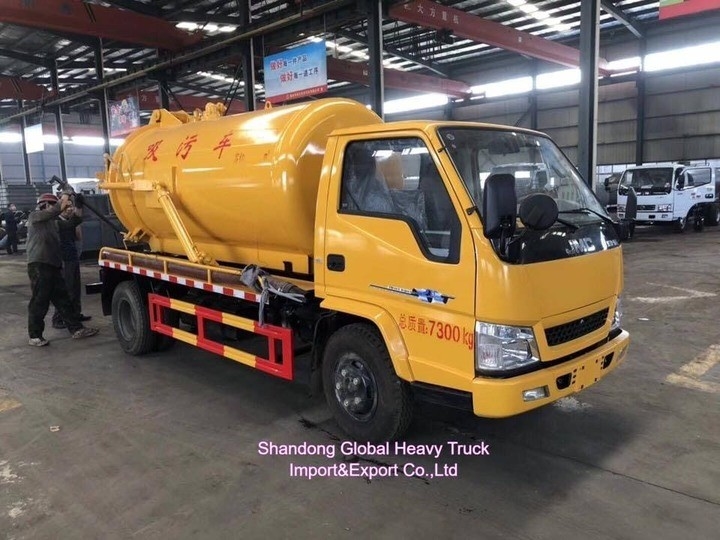

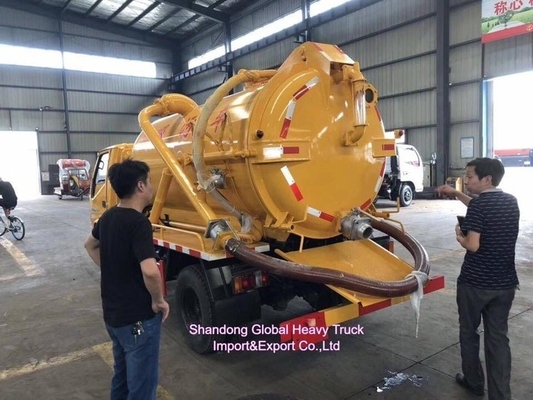

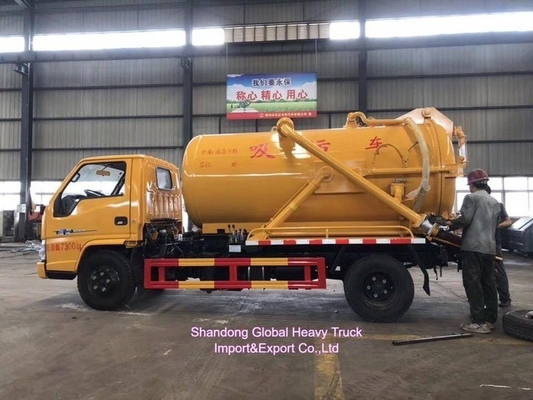

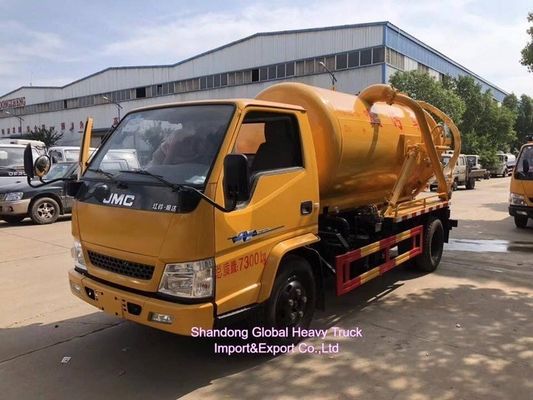

Dongfeng 4×2 Sewage Suction Truck Introduction

Basic Configuration

• Chassis: Built on a robust Dongfeng chassis, which is known for its durability and performance in challenging environments.
• Drive Configuration: The 4×2 drive configuration offers excellent maneuverability and control on various terrains.
• Tank Capacity: Available with tank capacities ranging from 5,000 liters to 12,000 liters to meet different operational needs.
• Tank Material: The tank is constructed with Q235B material and a thickness of 5mm, ensuring longevity and resistance to wear and tear. Some models may also offer stainless steel tanks as an option.

Engine and Pump

• Engine: Equipped with a powerful engine, such as a 120 - horsepower engine or a Cummins 190HP engine, providing ample power for effective suction and transport.
• Vacuum Pump: Features a high - capacity liquid (water) - ring vacuum pump with a pump flow of 420 m³/h (120 L/s) and a maximum pressure limit of -90,000 Pa, capable of efficiently sucking various materials.

Other Features

• Steering Options: Available in both Left - Hand Drive (LHD) and Right - Hand Drive (RHD) configurations to meet specific regional or operator requirements.
• Suction Performance: Suction height can reach up to 10 meters, and the horizontal suction distance is within 80 meters.
• Discharging Mechanism: Utilizes a hydraulic lifting rear - open system for easy and controlled discharge.
• Inhalable Diameter: The DN100 inhalable diameter ensures efficient suction of different substances.
• Suction Pipe Diameter: Features a DN102 suction pipe diameter for effective substance intake.

Advantages

• High Efficiency: The combination of a high - power vacuum pump and an excellent hydraulic system enables efficient suction and transportation of sewage and sludge, improving work efficiency.
• Durability: The Dongfeng chassis and high - quality materials used in the tank ensure the vehicle's durability and reliability, reducing maintenance costs and downtime.
• Versatility: Suitable for a wide range of applications, including urban sanitation, industrial waste treatment, and sewage pipe cleaning.
• Good Mobility: The 4×2 drive configuration provides good mobility and adaptability on various roads, making it easy to operate in different environments.

  Overview
  Name	Sewage Suction Truck
  Dimension(LxWxH)	9150x2550x3550
  Total Mass	18000kg
  Rated Payload	5270kg
  Curb Weight	12600kg
  Passenger	3
  Approach/Departure Angle	17/10
  The Parameters of Chassis
  Model	DFH1180
  Driving Type	4X2  left/right hand drive
  Wheelbase	4500 mm
  Gearbox	nine speed forward and one reverse, manual
  Tire	10.00R20 18PR
  The Number of Tires	6+1(spare tire)
  Front/Rear Suspension	1400/3050
  The Parameters of Engine
  Manufacturer/Model	D6.7NS6B230
  Rated Power	190Hp,210Hp,230Hp
  Fuel Type	Diesel oil
  Displacement/Capacity	6700ml
  Emission Standard	Euro3
  Cylinder	Straight/6/intercooling
  The Parameters of Equipment
  Tank Capacity	12m3
  Vacuum Pump Rotation Speed	Speed 800r/m-1400r/m
  Max. Suction Lift	>7m
  Vacuum	>500mmHg
  Time for full suction	<5min
  Common Accessories	Vacuum pump, ball valve, oil cylinder for rear cap, oil cylinder for dumping, pressure meter, window for showing liquid level, lock system for rear cap, four-way valve, moisture separator, sprinkler (optional), alarm for full suction (optional).
