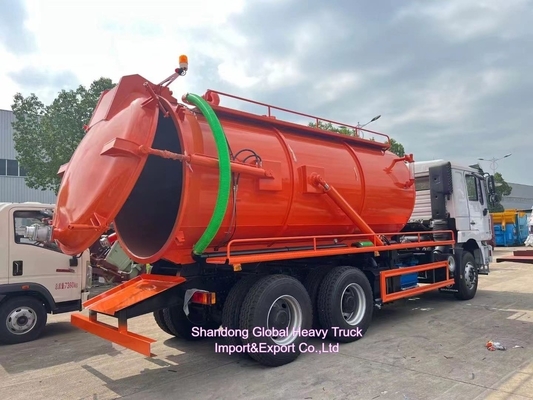

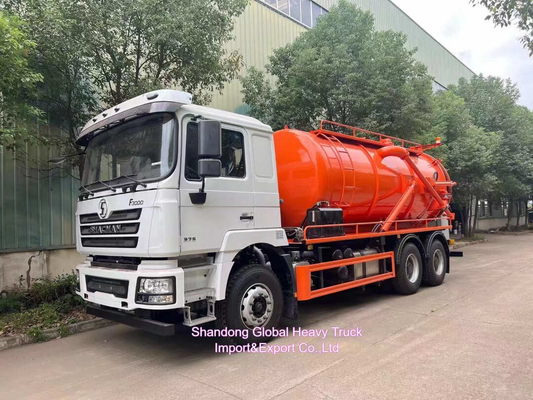

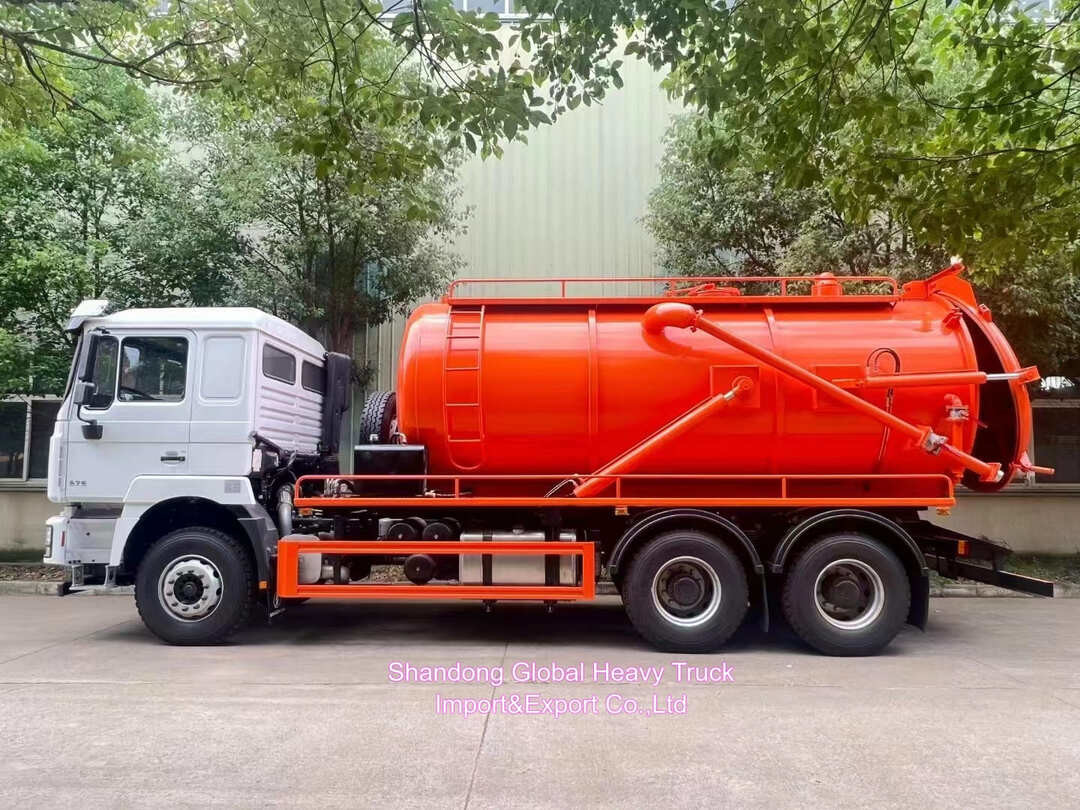

Rhd Shacman F3000 Hydro Excavators Combined Sewer Vacuum Suction Sewage+4000L Clean Water

Rhd Shacman F3000 Hydro Excavators Combined Sewer Vacuum Suction Sewage+4000L Clean Water

  • Rhd Shacman F3000 Hydro Excavators Combined Sewer Vacuum Suction Sewage+4000L Clean Water
  • Rhd Shacman F3000 Hydro Excavators Combined Sewer Vacuum Suction Sewage+4000L Clean Water
  • Rhd Shacman F3000 Hydro Excavators Combined Sewer Vacuum Suction Sewage+4000L Clean Water
  • Rhd Shacman F3000 Hydro Excavators Combined Sewer Vacuum Suction Sewage+4000L Clean Water
Rhd Shacman F3000 Hydro Excavators Combined Sewer Vacuum Suction Sewage+4000L Clean Water
Product Details:
Place of Origin: CHINA
Brand Name: shacman
Certification: ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Model Number: shacman f3000
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: nude
Delivery Time: 40 worker days
Payment Terms: L/C,T/T
Supply Ability: 300 units/mouth
Contact Now
Detailed Product Description
Certification: ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE Emission Standard: Euro 3
Payload: 20T Transmission Type: Manual
Fuel: Diesel Tank Volume: 9000L
Drive Wheel: 6×4 Hoesrpower: 150-250hp
Highlight:

Combined Sewer Vacuum Hydro Excavators

,

4000L Clean Water Hydro Excavators

,

Rhd Shacman F3000 Hydro Excavators

Rhd Shacman F3000 Hydro Excavators Combined Sewer Vacuum Suction Sewage+4000L Clean Water


The Vacuum Jetting Tank SKD, also known as the Vacuum Jet Body Superstructure or Combined Vacuum Jetting Tank Body, is a versatile and powerful piece of equipment designed for efficient sewer and septic system maintenance. Here's a detailed look at its features and applications in a slightly different tone:
  • Hydraulic-Lift Cylinder Tank: The cylinder vacuum tank can be hydraulically lifted to an angle of 40-45 degrees, and its rear door can be opened and shut using hydraulic power. This makes for easy and convenient operation.
  • High-Performance Vacuum Pump: We use EU vacuum pumps (Italy brand) or top-tier Chinese double vacuum pumps of similar quality. These pumps are super powerful and highly efficient. They can be operated either by a hydraulic motor or an auxiliary engine, offering flexibility in operation.
  • Advanced High-Pressure Pump: The equipment is fitted with imported high-pressure pumps or top Chinese pumps of equal quality. These pumps deliver strong water jets to clear blockages.
  • Overfill Protection System: An overfill system with a music horn is installed. When the tank is full, this system prevents sewage water from entering and damaging the vacuum pump.
  • Excellent Design: The Vacuum Jetting Tank has an attractive shape, a rational structure, and is built to last. It's durable and has a long service life.
This combined vacuum jetting tank body (also referred to as vacuum jetting tank superstructure, jet vacuum cleaner body, combined vacuum jetting tanker, vacuum jetting tank body, sewage suction jet tank, sewage vacuum jet superstructure, etc.) is designed to be mounted onto a chassis. It can collect and clean various liquids like dirty water, sludge, septic waste, and crude oil, as well as solid materials such as small stones and bricks. It's perfect for cleaning sewers, cesspits, cesspools, and gullies, making it a valuable tool in the environmental and sanitation sectors.
The equipment consists of two primary components. One is the high-pressure jetting part, which is used to clear blocked sewage. The other is the vacuum suction part, which collects the sewage. Together, these two components make the Vacuum Jetting Tank a powerful solution for maintaining sewage and septic systems.
Product Technical Specifications
Item Descriptions Spesifications and Types
Vehicle Brand Dong Runze
Overall Dimensions L*W*H   8670*2500*3690mm
Weights  GVW. 25000kgs
Kurb Weight 10520kgs
Rated Payload 15350kgs
Chassis Chassis Brand Shacman
Drive Type 6x4
Steering LHD or RHD
Engine Brand Weichai  engine
Power 190-385HP
Emmission Level EURO 2 or Euro 3 or EURO 5-6
Performance Max. Speed 76km/h
Wheel base  4500 +1300 mm
Tyre Specifications 11.00-20 18PR,11.00R20 18PR,12.00-20
No. of Tyre 6 pcs (1 spare tyre included)
Cab Cab Capacity 2 persons allowed
Body/Superstructure Tank Capacity water tanker 6m3 sewer tanker 10m3
Material 5mm or  6mm high quality carbon steel
Vacuum pump  China famous vacuum pump and high pressure pump
Vacuum rate 99% thorically
Suction head 6m
Rotation speed 500 rpm,low noise,high efficiency
Basic
Equipments		 Install vacuum pumps and hydraulic systems driven by engine through PTO. One multi-way valve, pressure gauges, water-gas separator, oil-gas separator, hydraulic oil tank, a level inspection window, hand washing tank and a piece of 6m suction hose
Paint
Tank color is according to client's requirements.
Optional Equipments Italy or Spain vacuum pumps
Stainless steel
Anti-rust coating inside tank

Rhd Shacman F3000 Hydro Excavators Combined Sewer Vacuum Suction Sewage+4000L Clean Water 0
