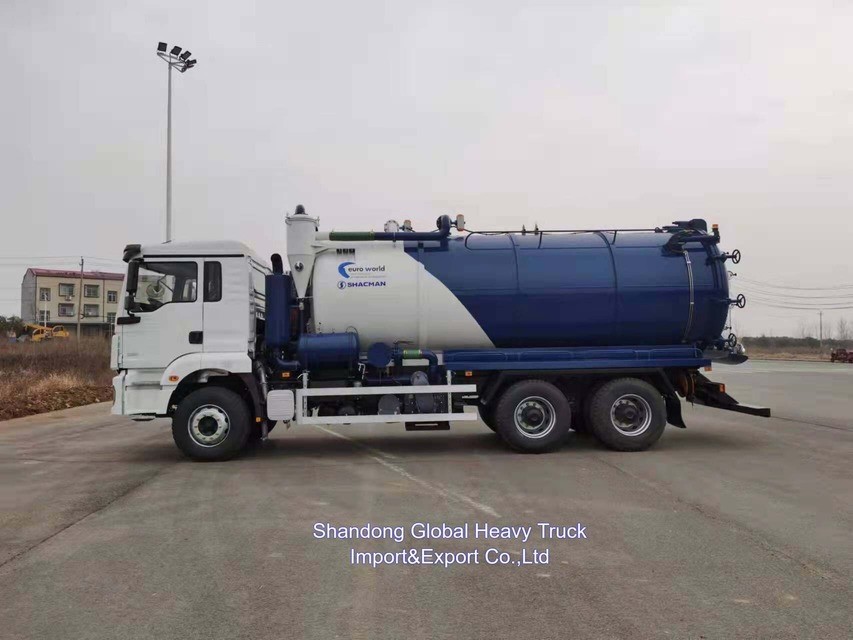

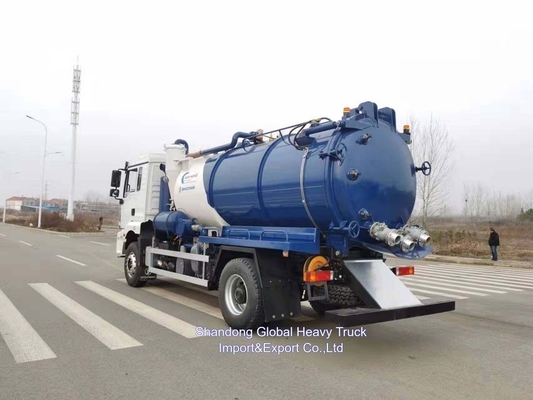

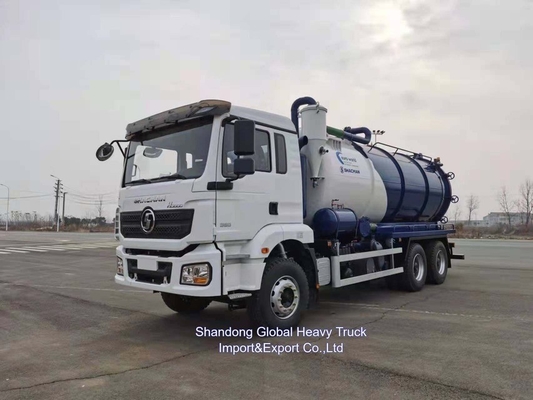

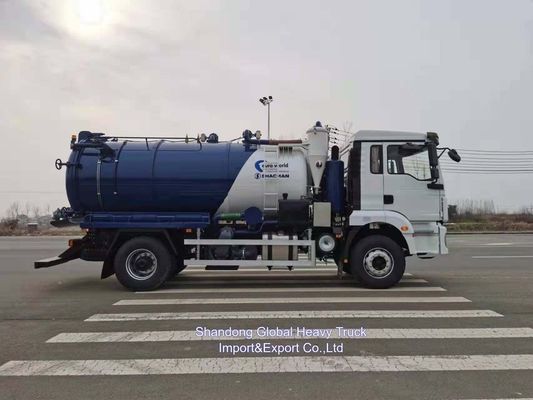

Shacman 6X4 F3000 16000-22000 Liters New Vacuum Sewage Suction Truck

Shacman 6X4 F3000 16000-22000 Liters New Vacuum Sewage Suction Truck

  • Shacman 6X4 F3000 16000-22000 Liters New Vacuum Sewage Suction Truck
  • Shacman 6X4 F3000 16000-22000 Liters New Vacuum Sewage Suction Truck
  • Shacman 6X4 F3000 16000-22000 Liters New Vacuum Sewage Suction Truck
  • Shacman 6X4 F3000 16000-22000 Liters New Vacuum Sewage Suction Truck
Shacman 6X4 F3000 16000-22000 Liters New Vacuum Sewage Suction Truck
Product Details:
Place of Origin: CHINA
Brand Name: shacman
Certification: ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Model Number: shacman f3000
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: nude
Delivery Time: 40 worker days
Payment Terms: L/C,T/T
Supply Ability: 300 units/mouth
Contact Now
Detailed Product Description
Certification: ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE Emission Standard: Euro 3
Payload: 20T Transmission Type: Manual
Fuel: Diesel Tank Volume: 9000L
Drive Wheel: 6×4 Hoesrpower: 150-250hp
Highlight:

22000 Liters Vacuum Sewage Suction Truck

,

Shacman Vacuum Sewage Suction Truck

,

6X4 Vacuum Sewage Suction Truck

Shacman  6X4 F3000 16000-22000 Liters New  Vacuum Sewage Suction Truck


Function:

(1) Vacuum sewage suction truck (also called truck mounted sewage cleaner,vacuum cleaner truck ,vacuum suction truck ,vacuum suction tanker ,vacuum waste collection truck ,sewage suction truck,sewage vacuum truck ,waste vacuum truck ,sewer truck ,cesspit emptier ,gully emptier,etc.) is used to collect, transport and discharge liquid such as dirty water,sludge,septic,crude oil and solid stuff such as small stones,bricks as well.It is suitable for cleaning the sewer,cesspit,gully ,etc. It is widely used in environment and sanitation field.

(2)Accessory of sewage suction function :Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.

(3) Vacuum tank capacity ranges from 3,000 Liters to 20,000 liters

Features:
a.Cylinder vacuum tank can be lifted hydraulically to 40-45 degree.Rear door can be opened and closed hydraulically.

b.Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps,super powerful,highly efficient.

c.Pump can be operated by a hydraulic motor or by an auxiliary engine.

d.Overfill system with music horn is equipped ,preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.

e.Nice shape ,rational structure,durable and long service life.
Sewage Suction Vacuum Truck Technical Specification
Product Name Sino howo
SEWAGE SUCTION TRUCK
Chassis Model ZZ1250
Fuel type Diesel
Emission Standard Euro 2
Cabin  HW16
Whole Vehicle
main dimensions (mm)		 Overall dimensions (LxWxH) 9500*2400*3300
Wheel base optional
Min. ground clearance  480
Weight data (kg) G.V.W 25000
Curb weight 1200
Max payload 16000
Whole vehicle
main performance		 Max. speed (km/h) 95
Max. slope of climb (%) 30
Engine


 		 Model WD615 47
Maximum power 336HP
Number of cylinders 6
Displacement (ml) 9.726
Gear box Model 9
Number of gears 9 forward gears &1 reverse
Axle  Front Load capacity (ton) 7
Rear Load capacity (ton) 18
Steering Wheel left/right hand drive LHD,RHD
Brake system Service brake  Air braking
Electric device Rated voltage 24V
Tyres&Quantity   10.00-20& 6+1
Sewage Suction Vacuum Truck Special Tank Description
Tank

 		 Material:high quality carbon steel
Structure:welding,vacuum tank,Cylindrical
capacity(L) 16000
thickness of material 6mm
pump





 		 type vacuum pump
model 65QZ-40/45N
flux(L/S) 65
rating speed(r/min) 500
shaft power(kw) 4
features Low speed,low fuel consumption,low noise,high vacuum,high efficiency
manufacture Hangzhou Weilong Pump Co.,Ltd,(Famous in China)
pipe 65-100mm suction and discharge pipe
special function suction time ≤ 5min,
effective suction range ≥ 8,
 max vacuum degree ≤ 15 Kpa,
dump angle ≥ 45
equipment Equipped with power take off,transmission shaft,fecal tank, pipe network,fecal pipe for observing and cleanout equipment
Time for full suction less than 5min
hydraulic lift and lock discharge cover. sewage tube,vacuum pump,recovery,etc

Shacman 6X4 F3000 16000-22000 Liters New Vacuum Sewage Suction Truck 0
