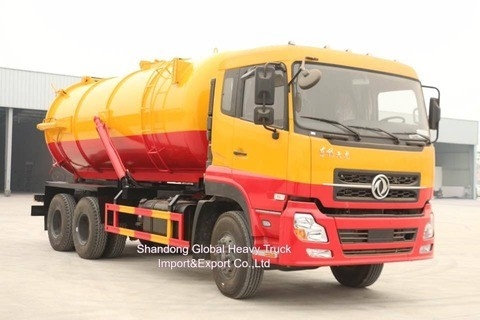

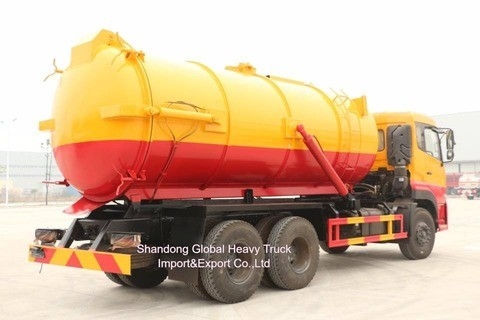

Dongfeng 6*4 High Condition 290HP Vacuum Sewage Suction Tanker Truck Sewage Suction Truck

Dongfeng 6*4 High Condition 290HP Vacuum Sewage Suction Tanker Truck Sewage Suction Truck

  • Dongfeng 6*4 High Condition 290HP Vacuum Sewage Suction Tanker Truck Sewage Suction Truck
  • Dongfeng 6*4 High Condition 290HP Vacuum Sewage Suction Tanker Truck Sewage Suction Truck
  • Dongfeng 6*4 High Condition 290HP Vacuum Sewage Suction Tanker Truck Sewage Suction Truck
  • Dongfeng 6*4 High Condition 290HP Vacuum Sewage Suction Tanker Truck Sewage Suction Truck
Dongfeng 6*4 High Condition 290HP Vacuum Sewage Suction Tanker Truck Sewage Suction Truck
Product Details:
Place of Origin: CHINA
Brand Name: Dongfeng
Certification: ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Model Number: Dongfeng
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: nude
Delivery Time: 40 worker days
Payment Terms: L/C,T/T
Supply Ability: 300 units/mouth
Contact Now
Detailed Product Description
Certification: ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE Emission Standard: Euro 3
Payload: 20T Transmission Type: Manual
Fuel: Diesel Tank Volume: 9000L
Drive Wheel: 6×4 Hoesrpower: 150-250hp
Highlight:

290HP Vacuum Sewage Suction Tanker Truck

,

6*4 Vacuum Sewage Suction Tanker Truck

Dongfeng 6*4 High Condition 290HP  Vacuum Sewage Suction Tanker Truck  Sewage Suction Truck


Function:

(1) Vacuum sewage suction truck (also called truck mounted sewage cleaner,vacuum cleaner truck ,vacuum suction truck ,vacuum suction tanker ,vacuum waste collection truck ,sewage suction truck,sewage vacuum truck ,waste vacuum truck ,sewer truck ,cesspit emptier ,gully emptier,etc.) is used to collect, transport and discharge liquid such as dirty water,sludge,septic,crude oil and solid stuff such as small stones,bricks as well.It is suitable for cleaning the sewer,cesspit,gully ,etc. It is widely used in environment and sanitation field.

(2)Accessory of sewage suction function :Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.

(3) Vacuum tank capacity ranges from 3,000 Liters to 20,000 liters

Features:
a.Cylinder vacuum tank can be lifted hydraulically to 40-45 degree.Rear door can be opened and closed hydraulically.

b.Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps,super powerful,highly efficient.

c.Pump can be operated by a hydraulic motor or by an auxiliary engine.

d.Overfill system with music horn is equipped ,preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.

e.Nice shape ,rational structure,durable and long service life.
Name Sewage Suction Truck
Dimension(LxWxH) 10150x2550x3550
Total Mass 25000kg
Rated Payload 5270kg
Curb Weight 7370kg
Passenger  3
Approach/Departure Angle 20/12
The Parameters of Chassis
Model DFH1250
Driving Type 6X4 left/right hand drive
Wheelbase 5350+1350mm
Gearbox nine speed forward and one reverse, manual
Tire 11.00R20 18PR
The Number of Tires 9+1(spare tire)
Front/Rear Suspension 1400/3050
The Parameters of Engine
Manufacturer/Model DDi75E300-60
Rated Power 290Hp,300Hp,340Hp
Fuel Type Diesel oil
Displacement/Capacity 7500ml
Emission Standard Euro3
Cylinder Straight/6/intercooling
The Parameters of Equipment
Tank Capacity 22m3
Vacuum Pump Rotation Speed Speed 800r/m-1400r/m
Max. Suction Lift >7m
Vacuum >500mmHg
Time for full suction <5min
Common Accessories Vacuum pump, ball valve, oil cylinder for rear cap, oil cylinder for dumping, pressure meter, window for showing liquid level, lock system for rear cap, four-way valve, moisture separator, sprinkler (optional), alarm for full suction (optional).

Dongfeng 6*4 High Condition 290HP Vacuum Sewage Suction Tanker Truck Sewage Suction Truck 0
