Product Description

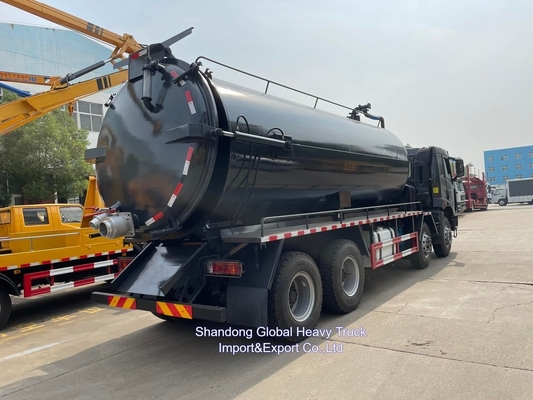

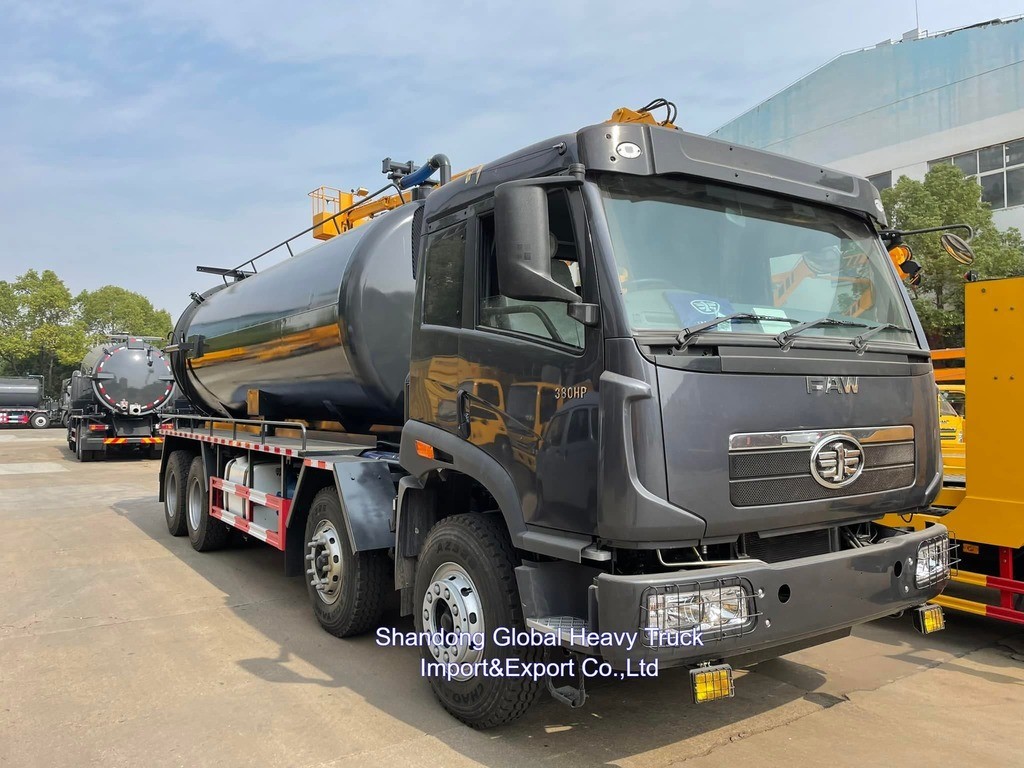

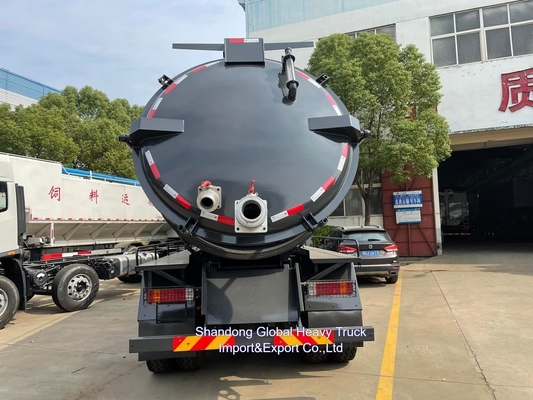

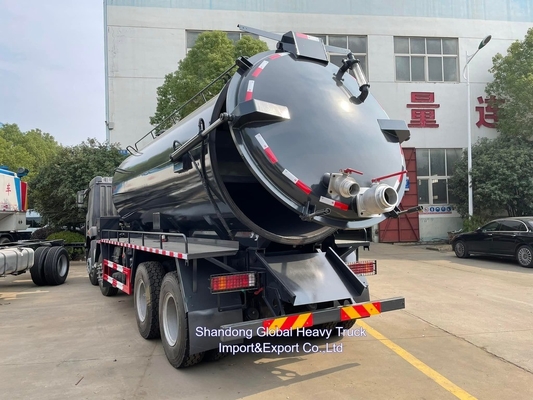

This Sewage Suction Truck represents heavy-duty municipal maintenance equipment combining high-pressure cleaning and vacuum suction capabilities:

Core Features

• Dual-Tank System:
  • 3.5m clean water tank + 4.3m sewage tank (Independent operation)
  • 25-bar high-pressure jetting system
  • 540m³/h vacuum capacity

• Structural Design:
  • Q235 steel protection (80×120mm rear guard, 500mm clearance)
  • 11/11/12 multi-leaf spring suspension
  • 315/80R22.5 X-terrain tires

• Smart Control:
  • ISO 15118-3 compliant control interface
  • Optional telematics integration

• Safety Compliance:
  • CE certified rotating beacon lights
  • SAE J994 audible backup alarms
  • EN 13000-class stability monitoring

Operational Advantages

• Efficient Cleaning: 1.2km range jetting hose with auto-reel

• Zero Contamination: Closed-loop drainage system prevents spillage

• Customization:
  • 4 cab configurations
  • 6 nozzle types (10-45mm)
  • Hydraulic tool power pack options

• Maintenance Ready:
  • SS304 corrosion-resistant piping
  • 10,000hr service intervals
  • SAE J1939 diagnostic interface

Certified to China's strictest emission standards, this truck supports 24V/220V dual-power systems for auxiliary equipment. The optimized 17° approach angle enables operation in complex urban environments while maintaining 31T GVW capacity.
