16cbm Shacman Fecal Suction Vehicle Sewage Tanker Truck Sewage Suction Truck

Product Details:

Place of Origin:	CHINA
Brand Name:	SHACMAN
Certification:	ISO
Model Number:	SHACMAN

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiate
Packaging Details:	nude
Delivery Time:	40 worker days
Payment Terms:	L/C,T/T
Supply Ability:	300 units/mouth

Contact Now

Detailed Product Description

Product Name:	SHACMAN 6*4 5cbm Sewage Suction Vacuum Tank Truck	Tank Volume:	5000L
Drive Wheel:	6*4	Hoesrpower:	251-350hp
Tank Material:	Q235 Carbon Steel/Head 5.0mm, Q235 Carbon Steel/5.	Front Axle:	Hf9
Capacity:	12m3	Emission:	Euro 2
Highlight:	16cbm Sewage Tanker Truck , 16cbm Sewage Suction Truck , Shacman Sewage Suction Truck

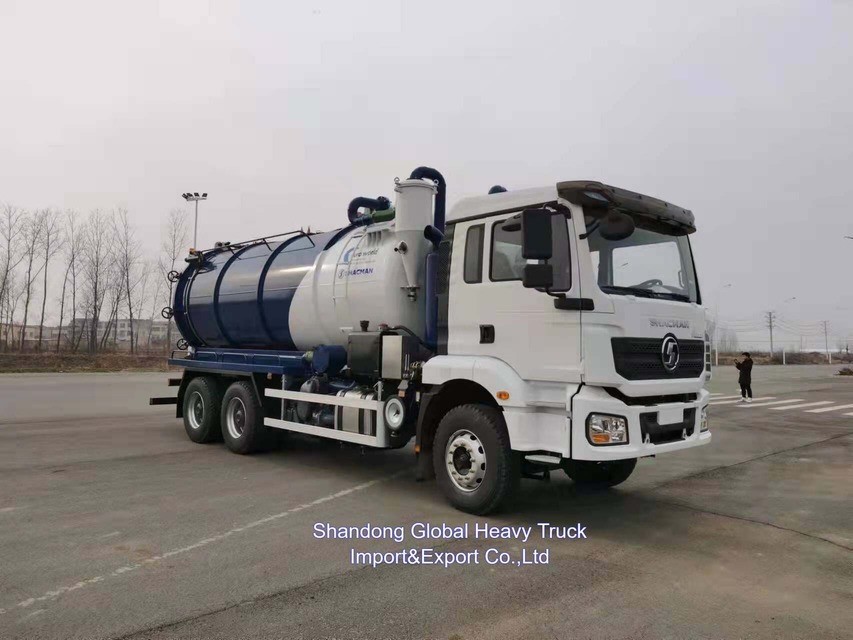

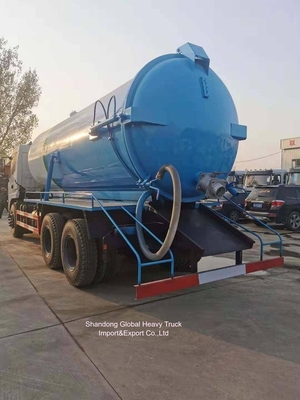

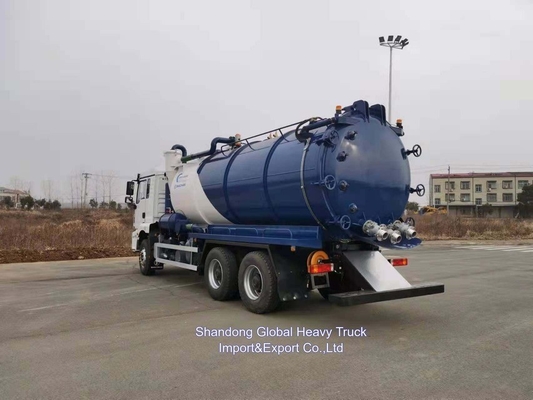

16cbm Shacman Fecal Suction Vehicle Sewage Tanker Truck Sewage Suction Truck

Name: 16cbm Shacman Fecal Suction Vehicle Sewage Tanker Truck Sewage Suction Truck
Brand: Shandong Global Heavy Truck Import&Export Co.,Ltd
SKU: SHACMAN
Price: 125,150.00 USD
Availability: InStock

Function:(1)Vacuum sewage suction truck (also called truck mounted sewage cleaner,vacuum cleaner truck ,vacuum suction truck ,vacuum suction tanker ,vacuum waste collection truck ,sewage suction truck,sewage vacuum truck ,waste vacuum truck ,sewer truck ,cesspit emptier ,gully emptier,etc.) is used to collect, transport and discharge liquid such as dirty water,sludge,septic,crude oil and solid stuff such as small stones,bricks as well.It is suitable for cleaning the sewer,cesspit,gully ,etc. It is widely used in environment and sanitation field.

(2)Accessory of sewage suction function :Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.

(3)vacuum tank capacity ranges from 3,000 Liters to 25,000 liters

Features:

a.Cylinder vacuum tank can be lifted hydraulically to 40-45 degree.Rear door can be opened and closed hydraulically.

b.Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps,super powerful,highly efficient.

c.Pump can be operated by a hydraulic motor or by an auxiliary engine.

d.Overfill system with music horn is equipped ,preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.

e.Nice shape ,rational structure,durable and long service life

Cabin	Driving type 6x4, single row10
		10500×2300×3500
	Wheel base (mm)	4600+1350
	Wheel track (front/rear) (mm)	1960/1860
	Approach/Departure angle(°)	28/32
Weight in KGS	Tare Weight	5340
	payload	6025
	Front axles loading capacity	2700
	Rear axles loading capacity	5000
Max. driving speed(km/h)		95
Engine	Brand	Cummins
	Horse Power(HP)	210HP
	Emission standard	Euro V
Gearbox	6 forwards & 1 reverse
Steering	Left hand drive
Tire	11.00R20, 6 tires with one spare
Sewage Tank
Tank volume	20000Liters
Tank material	6mm carbon steel Q235
Tank size	4900x1600mm
Vacuum Pump	Chinese Vacuum Pump or Italy Vacuum Pump
Sewage suction pipe	8M
Main Performance	Suction time ≤ 5min,
	effective suction range ≥ 8m
Other equipment	Oil-gas separator, water-gas separator, four-way valve, anti-flow valve, washing device, pressure gauge, ball valve
Painting	Customized painting color and logo as required.
