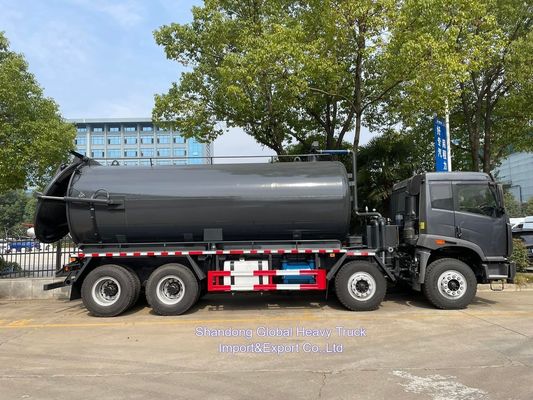

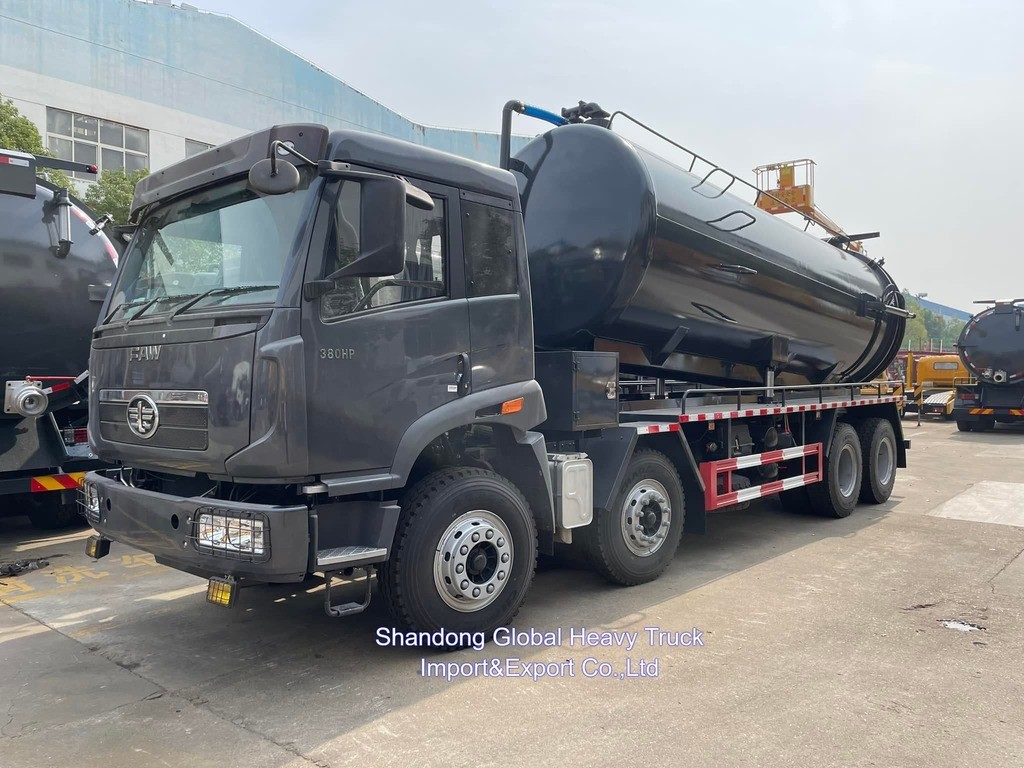

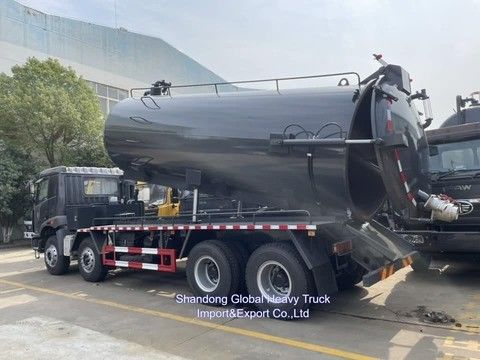

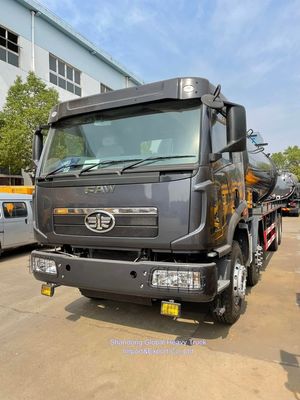

Name: FAW 6X4 Drive High Pressure Pump 20000L Capacity Sewage Suction Truck for Efficient Sewer Cleaning
Brand: Shandong Global Heavy Truck Import&Export Co.,Ltd
SKU: FAW
Price: 125,150.00 USD
Availability: InStock

Home Products Road Maintenance Equipment

FAW 6X4 Drive High Pressure Pump 20000L Capacity Sewage Suction Truck for Efficient Sewer Cleaning

Product Details:

Place of Origin:	CHINA
Brand Name:	FAW
Certification:	ISO
Model Number:	FAW

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiate
Packaging Details:	nude
Delivery Time:	40 worker days
Payment Terms:	L/C,T/T
Supply Ability:	300 units/mouth

Contact Now

Detailed Product Description

Product Name:	FAW 6*4 5cbm Sewage Suction Vacuum Tank Truck	Tank Volume:	5000L
Drive Wheel:	6*4	Hoesrpower:	251-350hp
Tank Material:	Q235 Carbon Steel/Head 5.0mm, Q235 Carbon Steel/5.	Front Axle:	Hf9
Capacity:	12m3	Emission:	Euro 2
Highlight:	20ton Sewer Cleaning Suction Truck , 20000L Sewer Cleaning Suction Truck , FAW Sewer Cleaning Suction Truck

FAW 6X4 High Pressure Pump 20000L 20ton Sewer Cleaning Suction Truck

A high-performance industrial vehicle designed for efficient sewage collection and transportation with robust chassis construction and advanced vacuum technology.

Chassis Specifications

The FAW JH6 6×4 chassis delivers exceptional performance with fuel efficiency, lightweight design, and minimal maintenance requirements.

Chassis Model	SX1250MB4
Wheelbase	4375+1350 mm
Gross Weight	25000 kg
Curb Weight	12400 kg

Engine System

Engine Brand	WeiChai
Type	Multi cylinder, 4-stroke, 6 cylinder water cooled, direct fuel injection, turbo-diesel engine
Displacement Volume	9726 ml
Net Power	Min 249 KW at rated RPM
Fuel Type	Diesel
Emission Standard	Euro 3~5

Upper Structure

The specialized superstructure is engineered for maximum efficiency and durability in sewage handling applications.

Sewage Tank: High-capacity tank (10-20 m³) constructed from 8mm carbon steel or optional stainless steel with anti-corrosion coatings and liquid level monitoring
Vacuum Pump: High-efficiency system with 99% vacuum rate, 8m suction head, and 500rpm operation for efficient waste collection
Hydraulic System: Advanced hydraulic drive for tank lifting and unloading operations with integrated safety features

Working Principle

The vacuum pump generates negative pressure to draw sewage into the tank while hydraulic agitators prevent solid particle settlement. Multiple filtration systems protect the pump and enhance operational efficiency.

Key Features

High Efficiency: Rapid sewage suction and unloading capabilities for large-scale treatment projects
Strong Adaptability: Handles various sewage types including solid particles, sludge, and silt from multiple distances
Reliable Performance: Rigorous quality testing ensures durable operation with reduced maintenance requirements
Convenient Operation: User-friendly control system with real-time monitoring and precise process control

Applications

Ideal for urban sanitation, industrial waste treatment, sewage treatment plants, and municipal engineering. Used for septic tank cleaning, pipeline dredging, and transporting sewage to treatment facilities.

Additional Specifications

Clutch System	Single Plate, dry friction
Steering System	Power Steering (Left hand driving, RHD available)
Transmission System	9-speed Manual
Brake System	Hydraulic disk brakes (Service) & Air Brake (Park)
Suspension System	Semi-elliptical leaf spring with telescopic shock absorber
Tire Specification	12.00R20 16PR/12.00R20 18PR (10 pcs)

Standard Equipment

Vacuum pumps and hydraulic systems driven by PTO, multi-way valve, pressure gauges, water-gas separator, oil-gas separator, hydraulic oil tank, level inspection window, hand washing tank, and 6m suction hose.

Optional Equipment

Italy or Spain vacuum pumps, stainless steel tank body, anti-rust coating inside tank. Tank color customized to client requirements.
