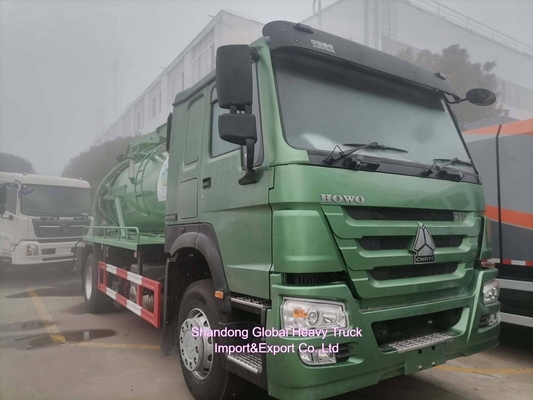

HOWO 20cbm 4*2 Right Hand Drive 266HP Sewage Suction Truck

HOWO 20cbm 4*2 Right Hand Drive 266HP Sewage Suction Truck

  • HOWO 20cbm 4*2 Right Hand Drive 266HP Sewage Suction Truck
  • HOWO 20cbm 4*2 Right Hand Drive 266HP Sewage Suction Truck
  • HOWO 20cbm 4*2 Right Hand Drive 266HP Sewage Suction Truck
  • HOWO 20cbm 4*2 Right Hand Drive 266HP Sewage Suction Truck
HOWO 20cbm 4*2 Right Hand Drive 266HP Sewage Suction Truck
Product Details:
Place of Origin: CHINA
Brand Name: SINOTRUK
Certification: ISO
Model Number: HOWO
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: nude
Delivery Time: 40 worker days
Payment Terms: L/C,T/T
Supply Ability: 300 units/mouth
Contact Now
Detailed Product Description
Model NO.: Sewage Suction Truck Certification: ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Emission Standard: Euro 2 Payload: 20T
Driver Seat: Air Suspension Seat Transport Package: Nude Packing After Painted Wax
Trademark: SINOTRUK HS Code: 8705909990
Highlight:

266HP Sewage Suction Truck

,

4*2 Sewage Suction Truck

,

Right Hand Drive Sewage Suction Truck

HOWO 20cbm 4*2 Right Hand Drive 266HP Sewage Suction Truck

Product Description

HOWO 20cbm 4*2 Right Hand Drive 266HP Sewage Suction Truck


1. Fecal Suction Truck Vacuum Tank Truck
1.1 vacuum tank sewage suction truck is loading and discharging quickly.
1.2. Fecal suction truck with 16cbm tank volume.
1.3. Sewage suction truck is discharged clearly.

2. Fecal Suction Truck Vacuum Tank Truck main equipment:
sewage suction tank truck cab - single and half row, optional: A/C
vacuum sewage truck Engine - sino howo, 6 cylinders
vacuum truck manual gearbox -9-speed
sewage truck drive axle loading capacity- 20T
vacuum suction truck tire - 10.00-R20
vacuum sewage sucking truck tank capacity - 16cbm

3. Fecal Suction Truck Vacuum Tank Truck main specification:
Sewage Suction Vacuum Truck Technical Specification
Product Name Sino howo
SEWAGE SUCTION TRUCK
Chassis Model ZZ1250
Fuel type Diesel
Emission Standard Euro 2
Cabin  HW16
Whole Vehicle
main dimensions (mm)		 Overall dimensions (LxWxH) 9500*2400*3300
Wheel base optional
Min. ground clearance  480
Weight data (kg) G.V.W 25000
Curb weight 1200
Max payload 16000
Whole vehicle
main performance		 Max. speed (km/h) 95
Max. slope of climb (%) 30
Engine


 		 Model WD615 47
Maximum power 336HP
Number of cylinders 6
Displacement (ml) 9.726
Gear box Model 9
Number of gears 9 forward gears &1 reverse
Axle  Front Load capacity (ton) 7
Rear Load capacity (ton) 18
Steering Wheel left/right hand drive LHD,RHD
Brake system Service brake  Air braking
Electric device Rated voltage 24V
Tyres&Quantity
10.00-20& 6+1
Sewage Suction Vacuum Truck Special Tank Description
Tank

 		 Material:high quality carbon steel
Structure:welding,vacuum tank,Cylindrical
capacity(L) 16000
thickness of material 6mm
pump





 		 type vacuum pump
model 65QZ-40/45N
flux(L/S) 65
rating speed(r/min) 500
shaft power(kw) 4
features Low speed,low fuel consumption,low noise,high vacuum,high efficiency
manufacture Hangzhou Weilong Pump Co.,Ltd,(Famous in China)
pipe 65-100mm suction and discharge pipe
special function suction time ≤ 5min,
effective suction range ≥ 8,
 max vacuum degree ≤ 15 Kpa,
dump angle ≥ 45
equipment Equipped with power take off,transmission shaft,fecal tank, pipe network,fecal pipe for observing and cleanout equipment
Time for full suction less than 5min
hydraulic lift and lock discharge cover. sewage tube,vacuum pump,recovery,etc

HOWO 20cbm 4*2 Right Hand Drive 266HP Sewage Suction Truck 0
