Place of Origin: | China |
Brand Name: | sinotruk |
Certification: | iso/ccc |
Model Number: | howo |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | Negotiation |
Packaging Details: | Nude |
Delivery Time: | 30-45 work days |
Payment Terms: | L/C,T/T |
Supply Ability: | 400 Unit/Units per month |
Product Name: | Boom Truck Crane | Certification: | GS, RoHS, CE |
---|---|---|---|
Maximum Lifting Height: | 15-20m | Shaft Number: | 3 |
Max. Driving Speed: | 90km/H | K Forward Shift Number: | 10 |
Crane Jib: | Five-Arm | Wheel Base: | 4350+1350mm |
Highlight: | 6X4 Boom Truck Crane,Telescopic Boom Truck Crane,Brand New Boom Truck Crane |

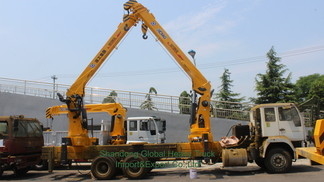

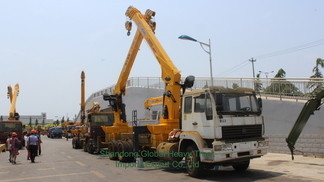

Brand New 6X4 HOWO Flatbed Truck Mounted Crane Telescopic Boom Truck
Product Description
Our Truck Crane—also called a hydraulic truck crane, mobile crane, truck‐mounted crane, or lorry crane—is a versatile lifting solution engineered for demanding industrial and commercial jobs. Whether you call it a truck with loading crane or a truck cargo crane, it delivers reliable performance in tight spaces and harsh outdoor environments.
Key Features
Lifting Capacity
Ranges from 2 t to 200 t to cover everything from light‐duty tasks to the heaviest loads.
Arm Configurations
Straight Boom: Exceptional stability for standard lifts.
Folding Boom: Added reach and flexibility for complex jobs in confined areas.
Remote Control Option
Enables safe, precise operation from up to 50 m away.
Chassis Compatibility
Easily mounts on major brands—Dongfeng, FAW, Foton, Sinotruk, Shaanxi (Shacman), T-King, Dayun, Yuejin, JMC, JAC, and more.
Premium Hydraulic System
High-flow pumps, reinforced hoses, and precision valves ensure smooth, dependable lifting under continuous use.
Customizable Layouts
Choose boom type, lifting capacity, outriggers, and chassis to suit your exact needs.
Applications
Construction: Transport and place steel beams, concrete forms, and materials.
Warehousing & Logistics: Load/unload pallets, crates, and bulky cargo in tight aisles.
Ports & Terminals: Handle containers, engines, and bulk goods with ease.
Salvage & Recovery: Rescue vehicles and lift heavy debris in challenging terrains.
Mining & Manufacturing: Install machinery, move heavy components, and support assembly lines.
Why Choose Our Truck Crane?
Factory-Direct Pricing: Competitive rates without middle-man markups.
Superior Build Quality: Durable steel structures and top-grade components for long life.
Full After-Sales Support: On-site training, preventive maintenance, and genuine spare parts.
Tailored Solutions: Configure specifications to match your budget and workflow.
Name
|
HOWO CARGO TRUCK WITH CRANE
|
|
Drive type
|
6×4
|
|
Kerb mass (kg)
|
12500
|
|
Rated loading capacity(kg)
|
---
|
|
Total mass(kg)
|
25000
|
|
Max. speed (km/h)
|
75
|
|
Min. turning circle (m)
|
18
|
|
Approach/Departure(°)
|
16/70
|
|
Max. gradeability (%)
|
60
|
|
Appearance dimensions (mm)
|
12000×2500×3450
|
|
Wheel base (mm)
|
4600+1350
|
|
Overhang(front/rear)
|
1500/725
|
|
Track width (mm) (front/rear)
|
2022/2041
|
|
Engine
|
CNHTC Engine,1WD615.47,371hp E-II
|
|
Rated output power
|
309kw
|
|
Torque(N.m r. p. m)
|
1820/1100-1500
|
|
Displacement(L)
|
9.726
|
|
Fuel tank capacity (L)
|
400L
|
|
Tyre:
|
315/80R22.5 10+1pc
|
|
Clutch
|
φ430 diaphragm spring
|
|
Gearbox
|
Transmission
|
HW19710, 10 forward&2 reverse Manual
|
Front axle
|
HF9
|
|
Drive axle
|
HC16 ratio 4.8
|
|
Steering
|
ZF8118 (left-hand drive)
|
|
Brake
|
Service brake
|
With dual-circuit compressed air brake
|
Park brake
|
Power spring brake acting on front & rear wheel
|
|
Auxiliary brake
|
Engine exhaust valve brake
|
|
Cab
|
HW76 Cab with Single sleeper A/C
|
|
With Wind scooper and air guide sleeve
|
||
Battery
|
165AH
|
|

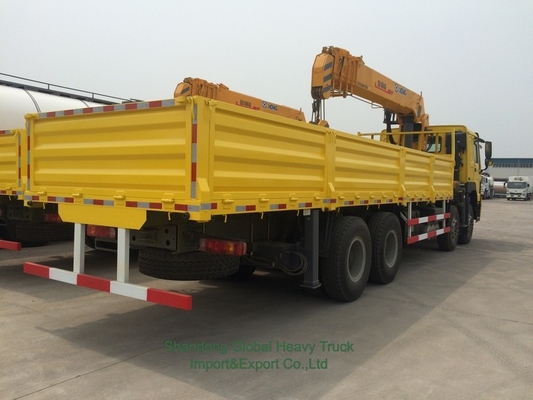

Cargo Carriage Internal Dimensions
|
7200x2400x600(LxWxH)mm
|
|
Steel thickness of Carriage:
|
Floor: 3mm, Side:1.5mm
|
|
Crane
|
12tons straight arm crane
|
|
Delivery date
|
40 working days after receiving the down payment.
|
