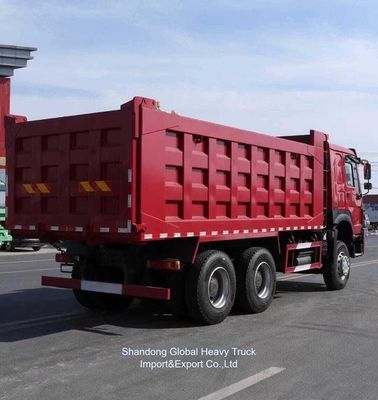

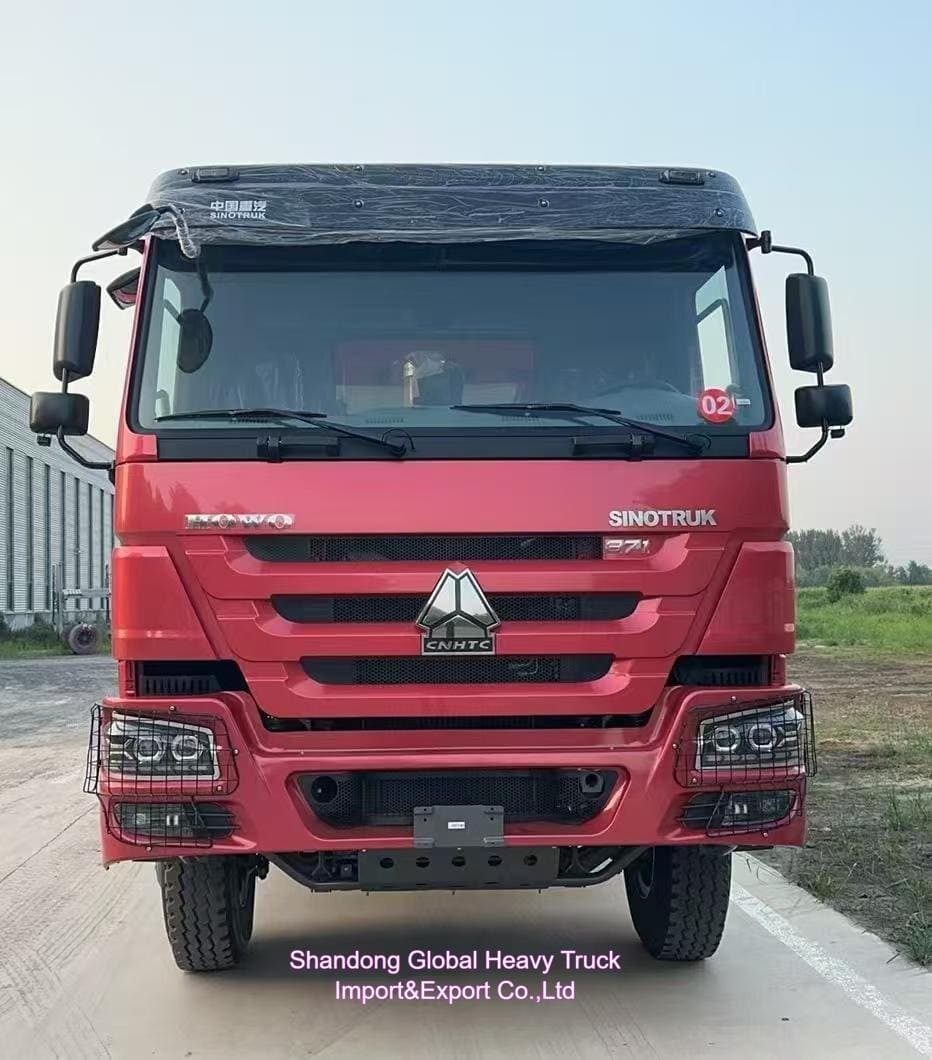

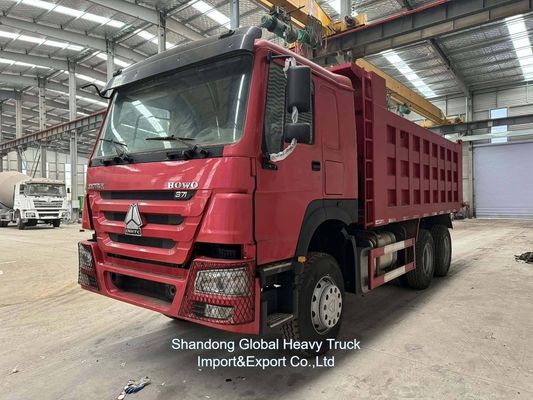

Name: Sinotruk HOWO 380 HP 6X4 Heavy Duty Dump Truck with 40t Load Capacity and Manual Transmission
Brand: Shandong Global Heavy Truck Import&Export Co.,Ltd
SKU: howo-7
Price: 37,000.00 USD
Availability: InStock

Home Products Heavy Duty Dump Truck

Sinotruk HOWO 380 HP 6X4 Heavy Duty Dump Truck with 40t Load Capacity and Manual Transmission

Product Details:

Place of Origin:	China
Brand Name:	howo
Certification:	iso,ce
Model Number:	howo-7

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	NEGOTIABLE
Packaging Details:	nude
Delivery Time:	40 worker days
Payment Terms:	L/C,T/T
Supply Ability:	500 units/month

Contact Now

Detailed Product Description

Model NO.:	Howo 6*4 Dump Truck	Transmission Type:	Manual
Load Capacity:	40t	Drive Wheel:	6×4
Horsepower:	371hp	Tire Certification:	ECE, GCC, ISO, DOT
Condition:	New	Drive Seat:	Air Suspension Seat
Highlight:	HOWO 6*4 Tipper Dump Truck , 6X4 Tipper Dump Truck , 380 HP Tipper Dump Truck

Manual Transmission Sinotruk HOWO 380 HP 6X4 Tipper / Dumper / Dump Truck

The HOWO-7 380HP dump truck is a powerful and reliable heavy-duty vehicle engineered for efficient transportation of construction materials and mining loads. Built by SINOTRUK with advanced German MAN technology, this truck delivers robust performance, exceptional durability, and low operating costs, making it the ideal choice for demanding work environments.

Key Features

Model: HOWO-7 6×4 Dump Truck

Engine: WP10.380E22, Euro II emission standard, 380 horsepower

Cab: HW76 new front face cab with single sleeper and A/C

Gearbox: HW19710 manual transmission, 10 forward & 2 reverse gears

Drive Axle: MCY16 double rear axle, final drive ratio 5.451

Front Axle: VGD95 axle

Tires: 12.00R20 radial tires (18PR), suitable for mixed terrain

Fuel Tank: 300L capacity for extended operation

Dump Body Size: Customizable, typically 5600-5800mm length

Hydraulic System: Front hydraulic lifting system for fast unloading

Max Speed: Up to 75-82 km/h

Operational Advantages

High-powered engine for heavy load operations

Durable chassis and axles designed for long service life

Efficient fuel consumption and easy maintenance

Comfortable and safe driving experience

Ideal for construction, mining, and earthwork projects

Technical Specifications

Truck Model	ZZ3257N3847B1 (Left Hand Drive)
Truck Brand	SINOTRUK-HOWO
Dimension (LxWxH) (unloaded)	8645×2550×3450 mm
Body Specifications	Carriage Internal Dimension: 5600x2300x1500 mm Steel thickness: Floor: 8mm / Side: 6mm Hydraulic Lift: Middle Lift Steel: Q235
Approaching/Departure Angle	19°/23°
Overhang (front/rear)	1500/1870 mm
Wheel Base	3825+1350 mm
Max Driving Speed	75 km/h
Front Axle Loading Capacity	9500 kg
Rear Axle Loading Capacity	2×16000 kg
Curb Weight	12750 kg
Gross Vehicle Weight	30000 kg
Cab Model	SINOTRUK HW76 Lengthen cab, single bunk, all steel forward control, 55° hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner
Engine Model	WP10.340E22 (EURO II), 340hp, 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection Rated Power: 249/2200 kw/rpm Make: WEICHAI, Euro II emission standard Thermostat with 80ºC opening begin, Rigid fan
Clutch	SINOTRUK Φ430 diaphragm-spring clutch, hydraulically operating with air assistance
Transmission	SINOTRUK HW19710 transmission, 10 forward and 2 reverse
Brake System	Service Brake: Dual circuit compressed air brake Parking Brake: Spring energy, compressed
Steering System	Gear Box, hydraulic steering with power assistance (Left hand driving)
Front Axle	SINOTRUK VGD95 Front Axle, new 9.5-ton front axles equipped with drum brakes
Rear Axle	SINOTRUK MCX16ZG Heavy reduction drive axle, STR hub-reduction with differential locks between wheels and axles, enforced STR axle, ratio: 5.29
Wheels & Tire	Rims: 8.5-20 10 hole-steel Tyres: 12.00R20 radial tyre with 1 Spare tire
Electrical System	Operating voltage: 24V, negative grounded Starter: 24V, 7.5 Kw Alternator: 3-phase, 28V, 1500 W Batteries: 2x12 V, 165 Ah Horn, headlamps, fog lights, brake lights, indicators and reverse light
Oil Tank	300L fuel tank
Packing	Nude Pack. The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, suitable for long distance transportation of ocean and inland. The Seller shall take measures against moisture, shocks and rust according to the special needs of the commodity.
