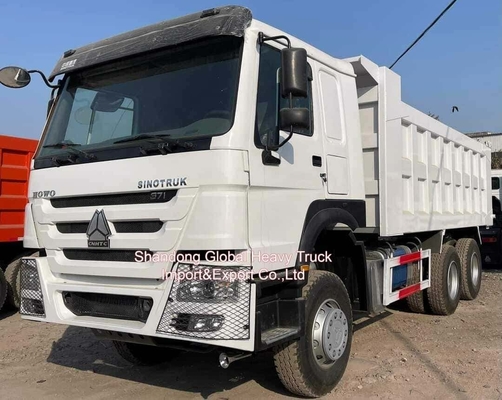

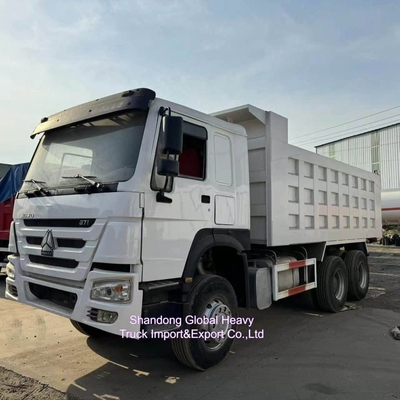

| Model |
ZZ3257N3447A1 Driving type: 6*4 left hand driving |
| Engine |
Make: SINOTRUK |
| Diesel 4-stroke direct injection diesel engine |
| Engine model: WD615.69,/WD615.47 Euro II emission standard |
| 6-cylinder in-line with water cooling, turbo-charging and intercooling |
| Maximum output: 336 hp (247 Kw) at 2200 rpm /371hp |
| Maximum torque: 1350 Nm at 1300-1600 rpm |
| Number of cylinder: 6 |
| Displacement: 9.726 L |
| Bore: 126 mm |
| Stroke: 130 mm |
| Specific fuel consumption: 195 g/kWh |
| Engine oil filling quantity: 19 l |
| Cooling system filling quantity (long-term filling): 40 l |
| Thermostat with 71ºC opening begin |
| Twin cylinder air compressor |
| Rigid fan |
| Transmission |
HW19710, 10 forwards and 2 reverse |
| Ratio: 14.28 10.62 7.87 5.87 4.375 3.26 2.43 1.8 1.34 1 13.91(R1) 3(R2) |
| Propeller Shaft |
Double universal joint propeller shaft with gear-shaped coupling flange |
| Front Axle |
HF9, Steering with doubleT-cross section beam |
| Rear Axle |
HC16, Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles . |
| Ratio:5.73 Option: 6.72 |
| Chassis |
Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members |
| Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer |
| Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
| Aluminium fuel tank: 300 L capacity with locking fuel cap, fitted to the off side of the chassis |
| Steering |
Germany technology power steering, modol 8118, hydraulic steering with power assitance |
| Brakes |
Service brake: dual circuit compressed air brake |
| Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels |
| Auxiliary brake: engine exhaust brake |
| ABS control system: for option |
| Wheels & Tyres |
Rims: 8.5-20, 10 hole-steel |
| Tyres: 12.00R20, option: 12.00R22.5 Nos: 10+1(spare) |
| Driver's Cab |
HW76, HOWO long cab, with two seats, one bed, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn,air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber |
| Electrics |
Operating voltage: 24 V, negative grounded |
| Starter: 24 V, 5.4 Kw |
| Alternator: 3-phase, 28 V, 1500 W |
| Batteries: 2 x 12 V, 165 Ah |
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Instrument Panel |
Active check central controllor with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators |
| of compressed air pressure, coolant temperature, engine oil pressure and battery charging |
| Dimensions mm |
Wheel base |
3625+1350 |
| Front wheel track |
2022 |
| Rear wheel track |
1830 |
| Front overhang |
1500 |
| Rear overhang |
1670 |
| Approach angle (0) |
19 |
| Departure angle (0) |
26 |
| Overall length |
8145 |
| Overall width |
2496 |
| Overall height |
3386 |

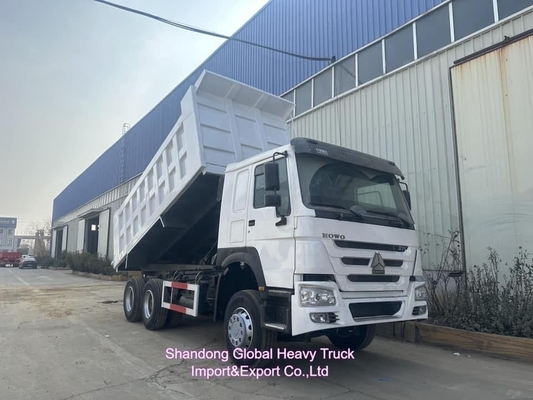

| Dimension of the rear dump body |
5400*2300*1400 |

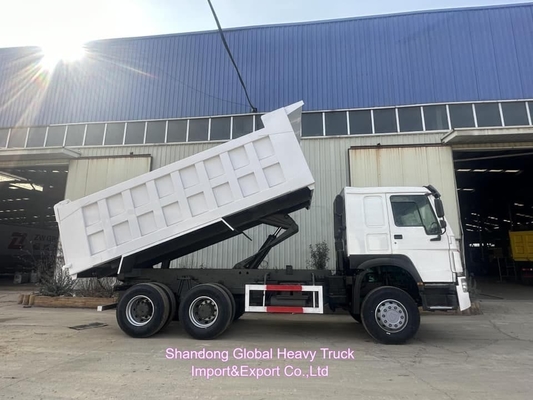

| Type of hoist system |
Underbody "T" shape |
| Weight kg |
Dead weight |
12420 |
| Gross vehicle weight |
41000 |
| Front axle loading capacity |
9000 |
| Rear axle loading capacity |
2*16000 |
| Performance |
Maximum driving speed (km/h) |
75 |
| Maximum gradeability (%) |
32 |
| Minimum ground clearance (mm) |
298 |
| Fuel consumption (l/100 km) |
3 |
|
