| Place of Origin: | China |
| Brand Name: | howo |
| Certification: | iso,ce |
| Model Number: | howo-7 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | nude |
| Delivery Time: | 40 worker days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 500 units/month |
| Model NO.: | Howo 6*4 Dump Truck | Transmission Type: | Manual |
|---|---|---|---|
| Load Capacity: | 40t | Drive Wheel: | 6×4 |
| Clutch: | SinotrukΦ430mm Diaphragm Spring Clutch | Specification: | 8.245x2.2.496x3.45 |
| Condition: | New | Drive Seat: | Air Suspension Seat |
| Highlight: | Sinotruck HOWO Dump Truck,HOWO Dump Truck 6*4 |
||

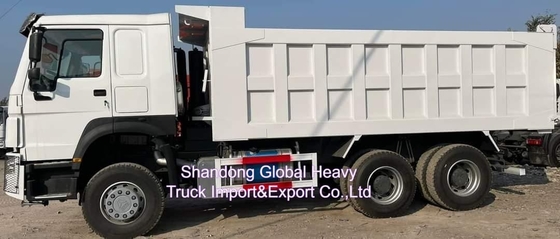

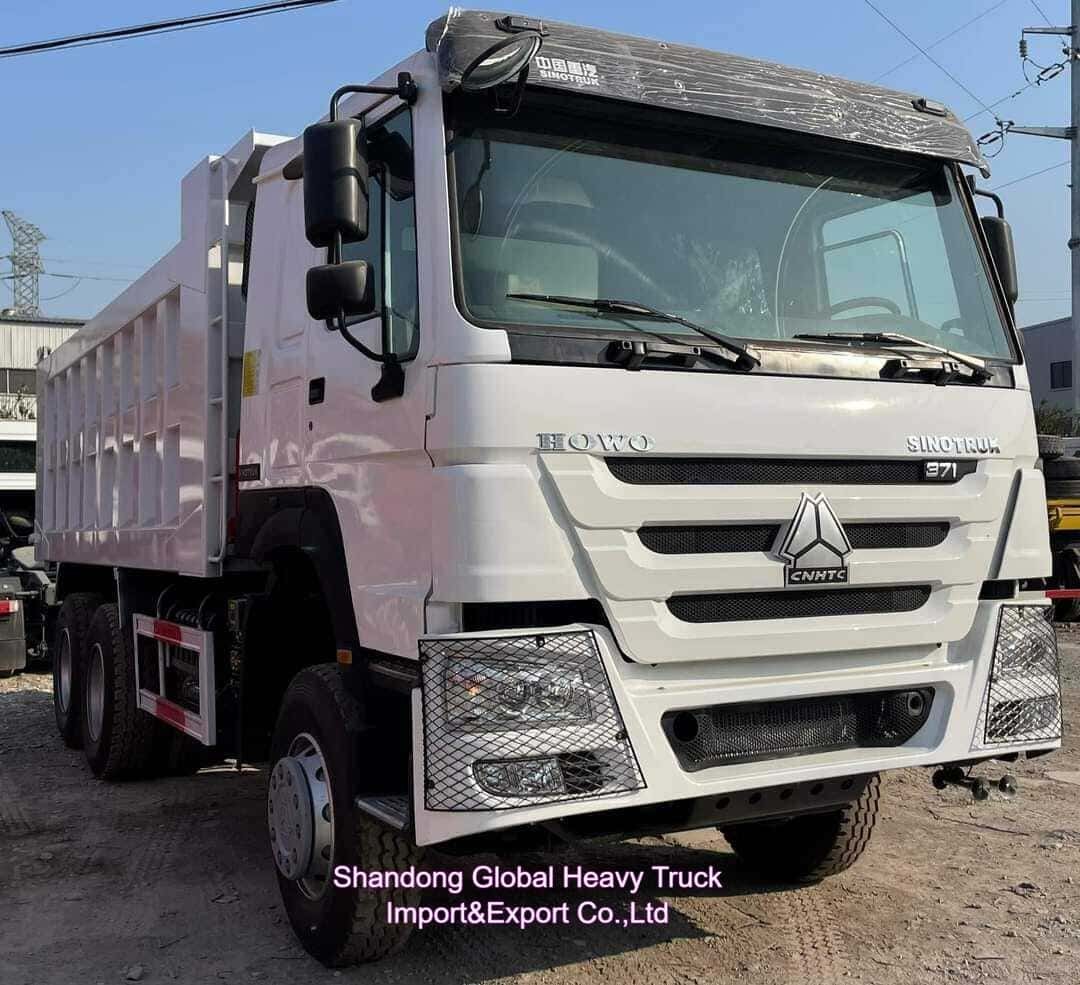

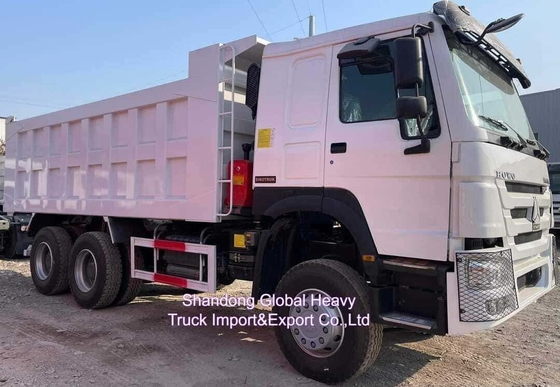

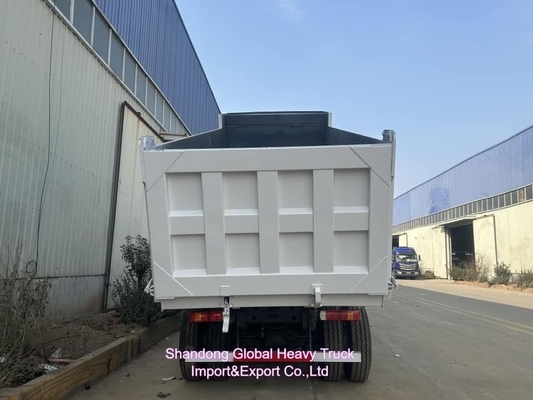

Chinese Brand Sinotruck HOWO Dump Truck 6*4 Euro 3 Heavy Truck Tipper in Good Condition in Stock
|
VEHICLE SPECIFICATION
|
DESCRIPTION
|
|
Truck Model
|
ZZ3257S3647W
|
|
Driving Position
|
Left hand Driving
|
|
Fuel tanker capacity(L)
|
300 |
|
The Total Mass
|
35,000kg
|
|
Dead Weight
|
12,300kg
|
|
Max speed(km/h)(km/h)
|
102 |
|
Dimension(Lx W xH)(mm)
|
8685x2496x3850
|
|
Cargo box
|
5600x2300x1500 mm
|
|
Box thickness
|
Boot 8mm side 6mm
|
|
Frame Details
|
High-Strength U-profile ladder frame with section of 300*90*8mm and reinforced sudfram, all cold riveted cross members.
|
|
Overhang(front/rear) (mm)
|
1500/725
|
|
Wheel base (mm)
|
3625+1350
|
|
Engine Model
|
WP 12.400E201
|
|
Power
|
400hp/295kw.2000r/min
|
|
Emission
|
EURO II
|
|
Displacement(L)
|
11.896
|
|
Type
|
water-cooled,four strokes,6 cylinders in
line,turbocharged, directly injection
|
|
Fuel Consumption(L/100km)
|
25L/100km
|
|
Clutch
|
SINOTRUKΦ430mm diaphragm spring
clutch
|
|
Gear Box
|
HW19710
|
|
Front Axle Model
|
VGD95 axle. Capacity: 9000kg
|
|
Rear Axle
|
HC16 axle. Capacity:2X 16000kg
|
|
Ratio of rear axle
|
4.8/4.2
|
|
Battery
|
2X12V/165Ah
|
|
Alternator
|
28V-1500kw
|
|
Starter
|
7.5Kw/24V
|
| Tire Type |
1200R20/12R22.5
|
|
Quantity
|
10+1 spare |
|
Kin pin
|
50mm or 90mm
|
|
Cabin
|
HW76 Standard cabin
|
![]()
