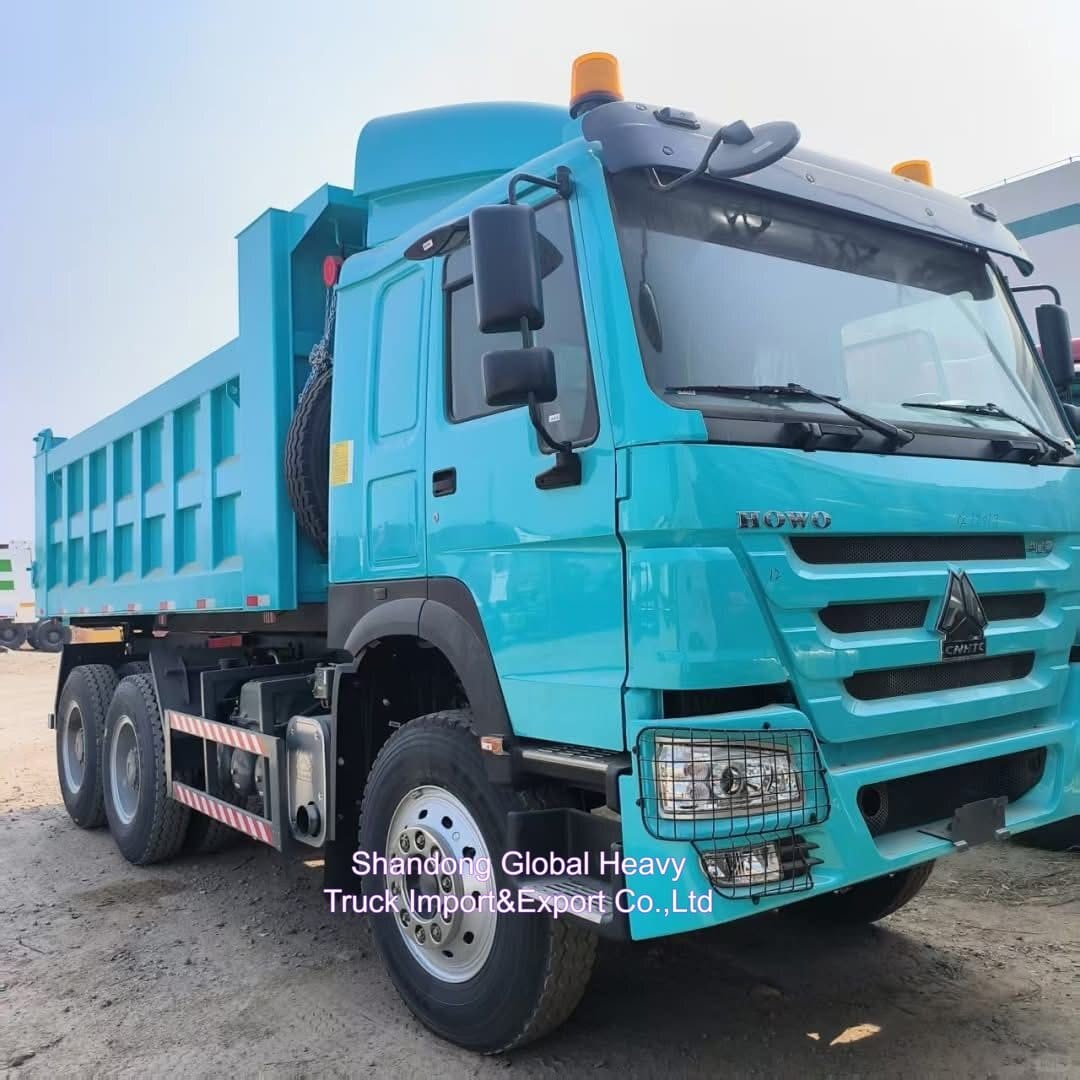

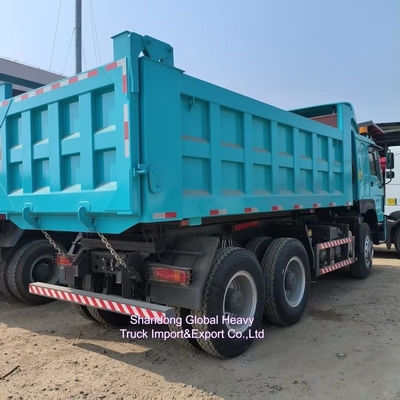

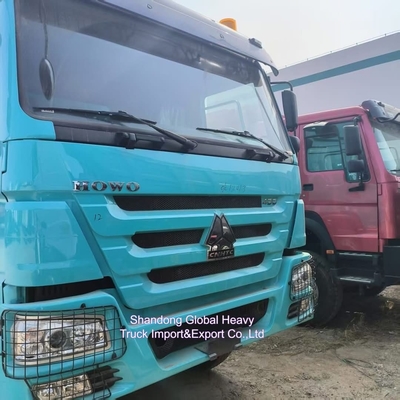

Sinotruck HOWO 60 Tons Camion Tip 6*4 Lorry Volquete 8*4 Dump Trucks Tipper Truck

Sinotruck HOWO 60 Tons Camion Tip 6*4 Lorry Volquete 8*4 Dump Trucks Tipper Truck

SINOTRUK HOWO Dump Truck – Technical Specifications

Chassis Configuration
Model: ZZ3257N3847B1 (Left-Hand / Right-Hand Drive optional)

Drive Types Available: 4×2, 6×4, 8×4, 4×4, 6×6, 8×8

Gross Vehicle Weight: 25,000 kg

Curb Weight: 8,630–12,020 kg

Payload Capacity: 12,640–12,850 kg

Engine
Model: WD615.47, Euro II Emission Standard

Type: 6-cylinder, in-line, water-cooled, turbocharged, intercooled

Displacement: 9.726 Liters

Power Output Options: 340 HP / 371 HP / 380 HP / 400 HP / 430 HP

Emission Standard: Euro II / Euro V

 Transmission & Clutch
Gearbox: SINOTRUK HW19710, Manual, 10 forward gears + 2 reverse gears, with PTO

Clutch: Single dry plate, diaphragm spring, 430 mm diameter, hydraulically assisted by air

 Axles
Front Axle: VGD95, 9,500 kg, equipped with drum brake

Rear Axles: HC16 double-stage reduction (central + hub), 2 × 16,000 kg, ratio: 5.73

 Suspension
Front Suspension: 10 leaf springs + hydraulic telescopic double-acting shock absorbers + stabilizer

Rear Suspension: 12 leaf springs + bogie spring + stabilizer

Steering System
Type: ZF8118 hydraulic power steering

 Braking System
Service Brake: Dual-circuit compressed air brake with front and rear drum brakes

Parking Brake: Spring energy, air-actuated, on rear wheels

Optional: Engine exhaust brake (EVB), ABS, automatic brake clearance adjuster

Fuel & Tires

Fuel Tank Capacity: 300 Liters

Tires: 12.00R20 (Options: 12.00-20, 315/80R22.5), with one spare

Dimensions
Overall Dimensions (L×W×H): 8,650 × 2,550 × 3,500 mm

Wheelbase: 3,800 + 1,350 mm

Min. Ground Clearance: 314 mm

Min. Turning Radius: 15 m

Approach / Departure Angles: 19° / 27–65°

Gradeability: ≥ 50%

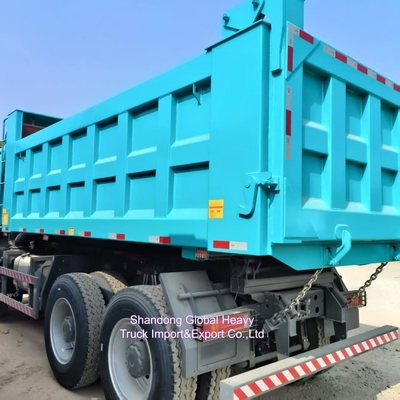

Cargo Body
Cargo Box Size (L×W×H): 5,600 × 2,300 × 1,500 mm (optional)

Volume: ~19 m³ (customizable based on requirements)

Lifting Mechanism: Front-mounted hydraulic lifting system
