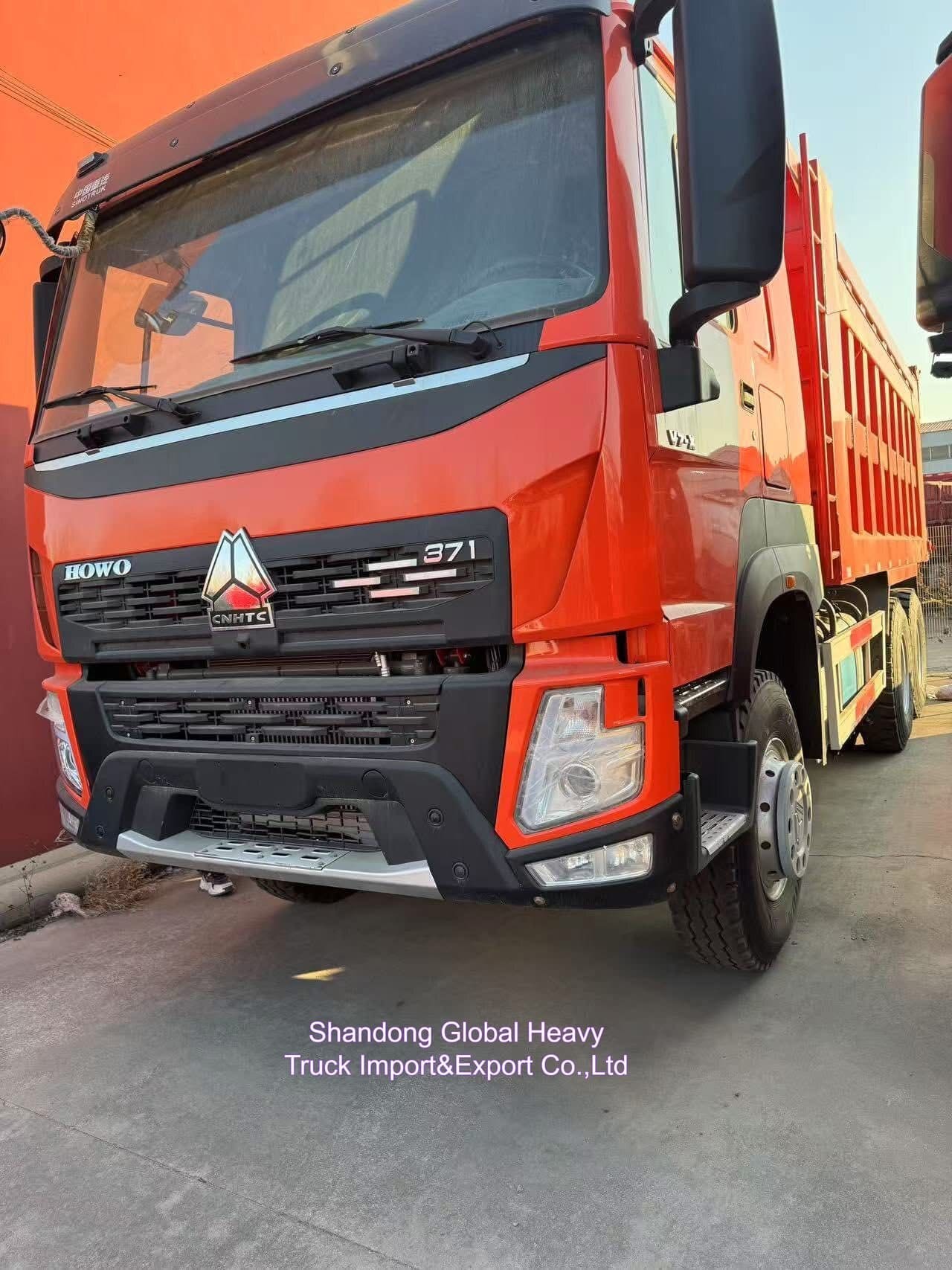

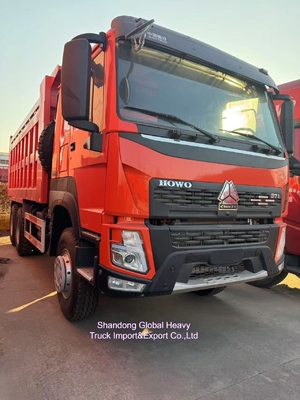

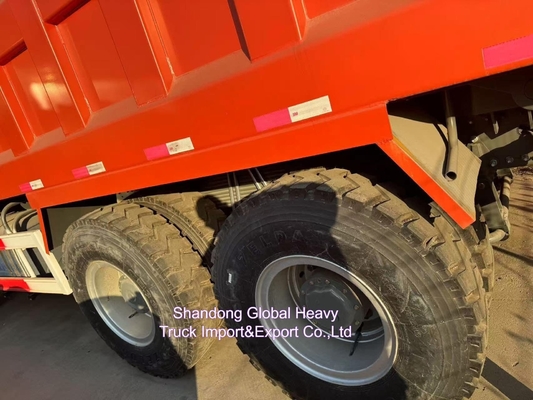

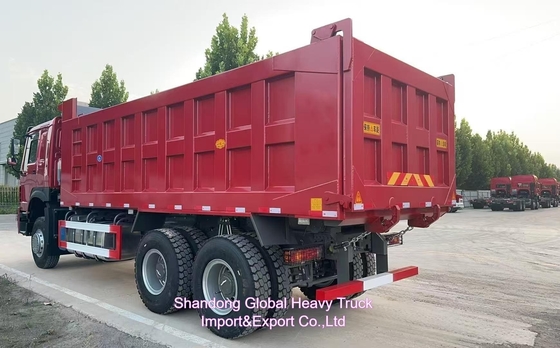

Name: V7 Dump Trucks Sinotruk HOWO 6 4 Tipper Truck 30 Ton Tipper Truck for Philippines Ready Shipment
Brand: Shandong Global Heavy Truck Import&Export Co.,Ltd
SKU: howo-v7
Price: 37,000.00 USD
Availability: InStock

Home Products Heavy Duty Dump Truck

V7 Dump Trucks Sinotruk HOWO 6 4 Tipper Truck 30 Ton Tipper Truck for Philippines Ready Shipment

Product Details:

Place of Origin:	China
Brand Name:	sinotruk
Certification:	iso,
Model Number:	howo-v7

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	NEGOTIABLE
Packaging Details:	nude
Delivery Time:	40 worker days
Payment Terms:	L/C,T/T
Supply Ability:	500 units/month

Contact Now

Detailed Product Description

Model NO.:	Howo-v7 6*4 Dump Truck	Wheelbase:	3175+1400
Load Capacity:	31-40t	Drive Wheel:	6×4
Horsepower:	380hp	Engine Brand:	Weichai
Condition:	New	Drive Seat:	Air Suspension Seat
Highlight:	30 Ton Tipper Truck , Sinotruk HOWO Dump Trucks

V7 Dump Trucks Sinotruk HOWO 6 4 Tipper Truck 30 Ton Tipper Truck for Philippines Ready for Shipment

Model		ZZ3257N3847B
Cabin		HW76, with two seats and one bed, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber + air roof spoiler
Engine	Model	WD615.47
	Horse Power (Hp/rpm)	371/2200
	Displacement (L)	9.726
	Type	DIESEL, EURO II emission, 6-cylinder in-line with water cooling, turbo-charging and intercooling, 4-stroke common rail electronic controlled diesel engine
Clutch		Φ430 Diaphragm spring clutch, hydraulic operating with air assistance
Transmission		HW19712, 12 speeds forward and 2 speeds reverse.
Front Axle		VGD95, Steering with double T-cross section beam, Rated loading capacity: 9,000kgs.
Driving Axle		MAT16Z, Pressed axle housing, central reduction with hub reduction and with differential locks between wheels and axles(Ratio: 4.42, 4.8)
Suspension		Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer
Steering System		ZF power steering, model ZF8118, hydraulic steering with power assistance
Brake System		Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake
Electrics		Single wire, 24 V, negative grounded; Alternator: 1540W; Start Motor:7.5kW;Battery:2*12V/165Ah
Tire		12.00R20
Fuel Tank(Gas Tank) Capacity (L)		400L Diesel Tank
Dead Weight (kg)		12530
Gross Vehicle Weight (kg)		33000
Gross Combination Weight (kg)		80000
Overall Dimension(LWH)(mm)		8345×2560×3450
Wheelbase(mm)		3825+1350
Front/Rear Overhang( mm)		1500/725
Wheel Track(Front/Rear)(mm)		2022/1850
Min. Ground Clearance(mm)		314
Approach/Departure Angle( °)		16/70
Max. Speed (km/h)		92
Max. Gradebility (%)		≥40
The Bucket Size		560023001500mm
