Place of Origin: | China |
Brand Name: | shacman |
Certification: | iso, |
Model Number: | f3000 |
Minimum Order Quantity: | 1 pc |
---|---|
Price: | NEGOTIABLE |
Packaging Details: | nude |
Delivery Time: | 40 worker days |
Payment Terms: | L/C,T/T |
Supply Ability: | 500 units/month |
Model NO.: | Shacman F3000 Dump Truck | Transmission Type: | Manual |
---|---|---|---|
Load Capacity: | 31-40t | Drive Wheel: | 8×4 |
Traction Type: | 8*4, Left/Right Hand Drive8 | Gear Box: | 9 Forward Gears& 1 Reverse |
Condition: | New | Drive Seat: | Air Suspension Seat |
Highlight: | Shacman Truck Price,Tipping Dumper Truck,Used Dump Trucks |

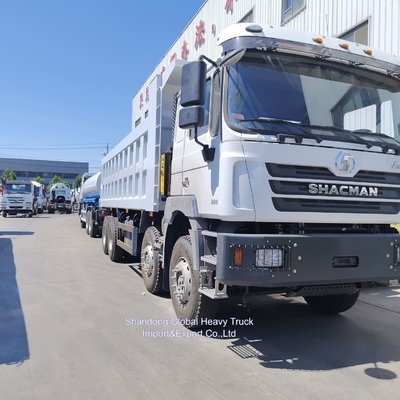

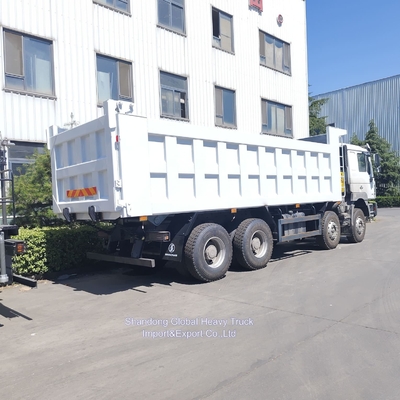

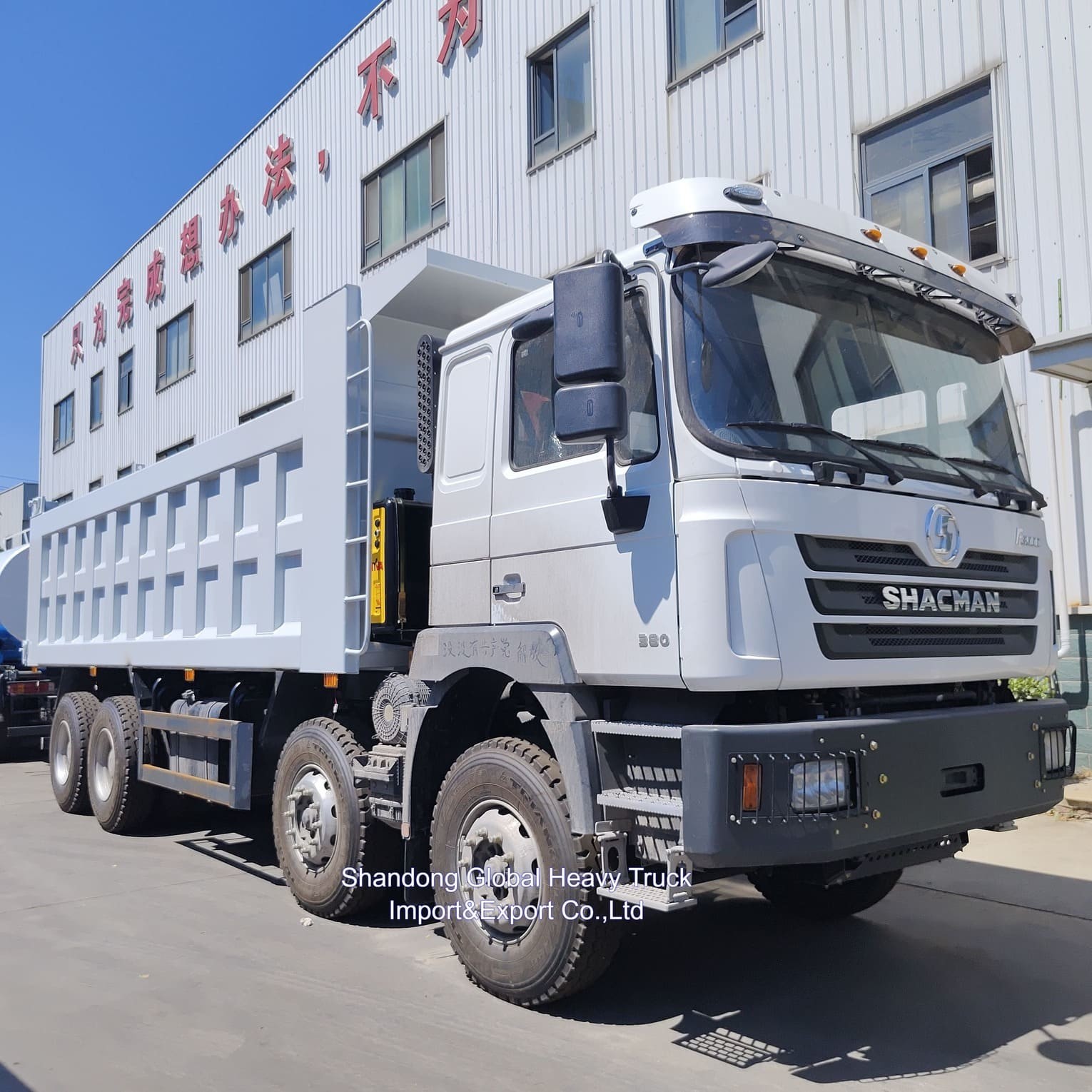

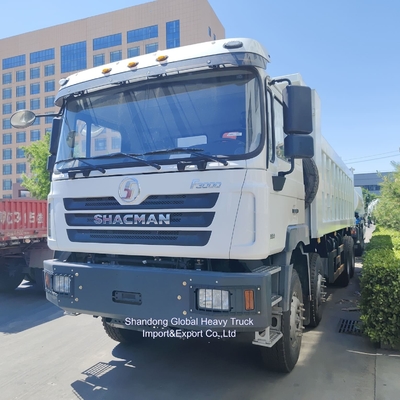

Shacman Truck Price New Tipper Tipping Dumper Truck Used Dump Trucks
Vehicle description | |||
Overall dimension | 9765*2500*3690mm | ||
GVW | 31000kg | ||
Curb weight | 14300kg | ||
Chassis brand | SHACMAN | ||
Traction type | 8*4, left/right hand drive | ||
Chassis description | |||
Chassis model | SX3314 | ||
Cab | F3000 with flat roof, AC | ||
Wheelbase | 1800+3000+1350mm | ||
Tire specification | 12.00R20 | ||
Tire quantity | 12+1 units | ||
Engine | Engine model | WP10.380E32 | |
Emission level | Euro 2 | ||
Displacement/output | 9726ml/280kw | ||
Horse power | 380hp | ||
Gear box | Model | RTD-11509C | |
Number of gears | 9 forward gears& 1 reverse | ||
Brake system | Type | Drum | |
Service brake | Dual-circuit compressed air brake | ||
Park brake | Power spring brake acting on rear wheel | ||
Auxiliary brake | Exhaust brake | ||
Axle | Front | 6.5T*2-MAN technology | |
Rear | 16T*2-MAN technology, hub reduction | ||
Suspension | Front | Leaf spring | |
Rear | Leaf spring | ||
Fuel tanker | Type | Steel fuel tank, with lockable cap | |
Capacity | 380L | ||
Up-parts description | |||
Cargo dimension | 6700*2300*1800mm | ||
Loading capacity | 25-30T | ||
Material | Carbon steel | ||
Thickness | Side | 8mm | |
Bottom | 10mm | ||
Hydraulic system | Chinese brand or imported brand | ||
Lifting style | Front lifting |
