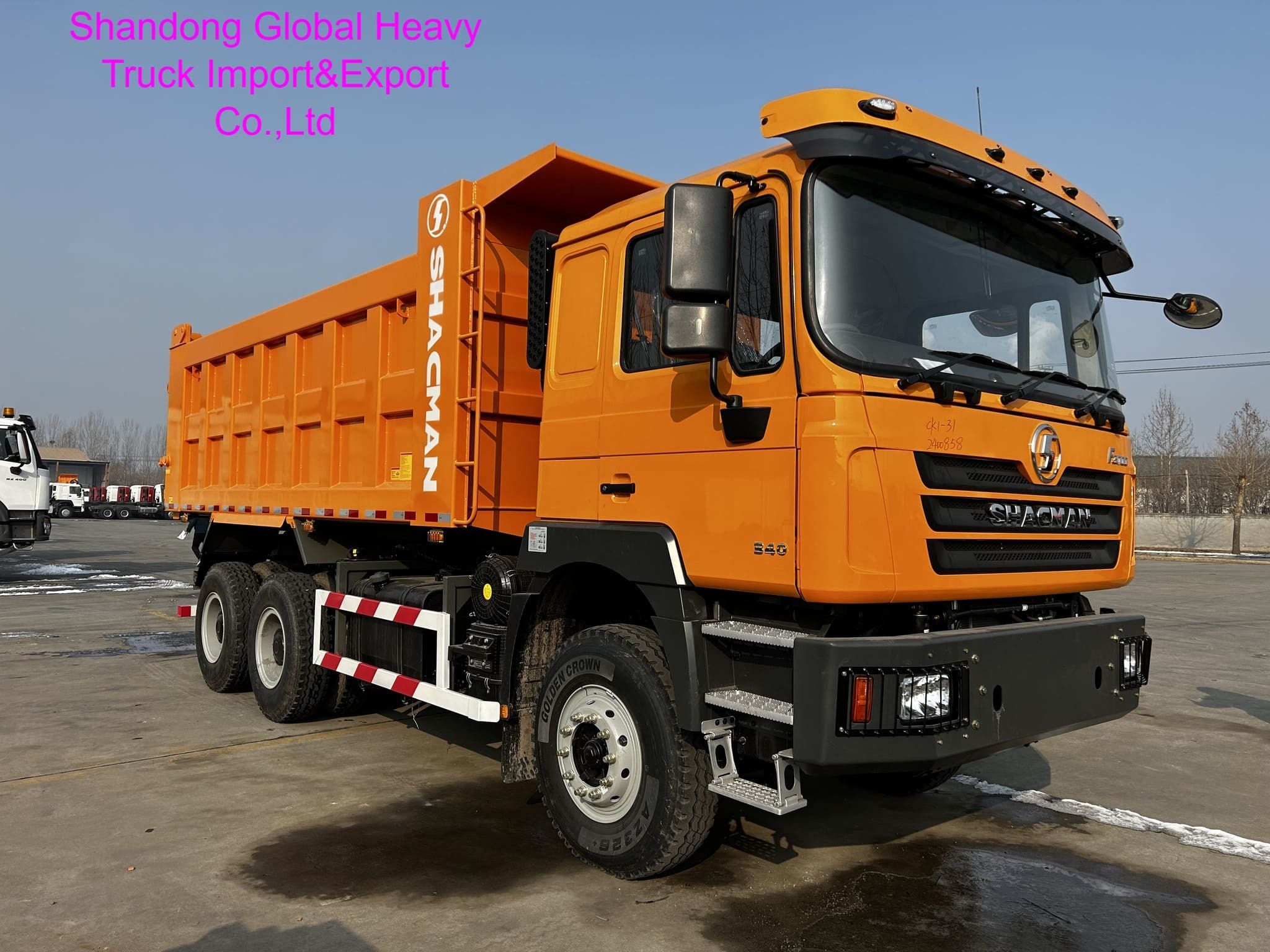

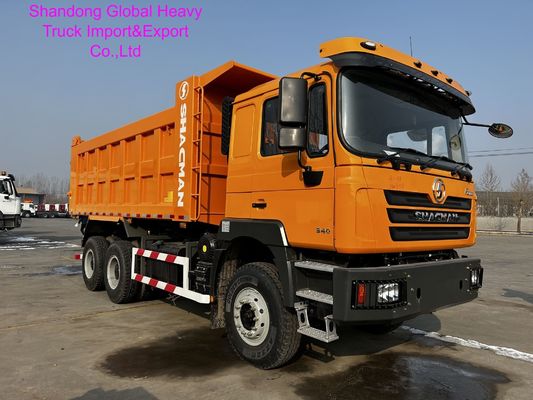

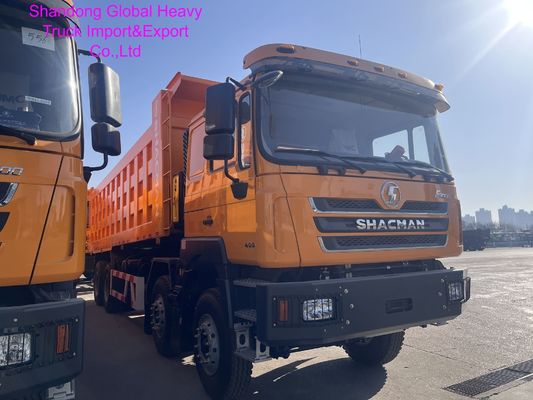

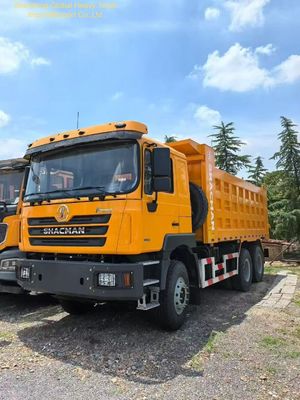

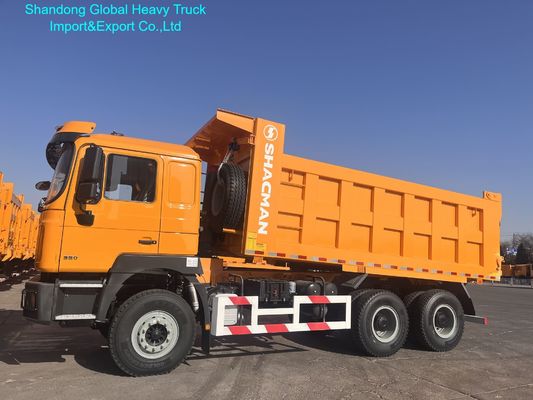

Shacman F3000 380HP 6X4 10 Wheels Heavy Duty Dump Truck for Mining and Construction

Shacman F3000 380HP 6X4 10 Wheels Heavy Duty Dump Truck for Mining and Construction

  • Shacman F3000 380HP 6X4 10 Wheels Heavy Duty Dump Truck for Mining and Construction
  • Shacman F3000 380HP 6X4 10 Wheels Heavy Duty Dump Truck for Mining and Construction
  • Shacman F3000 380HP 6X4 10 Wheels Heavy Duty Dump Truck for Mining and Construction
  • Shacman F3000 380HP 6X4 10 Wheels Heavy Duty Dump Truck for Mining and Construction
Shacman F3000 380HP 6X4 10 Wheels Heavy Duty Dump Truck for Mining and Construction
Product Details:
Place of Origin: China
Brand Name: shacman
Certification: iso,
Model Number: f3000
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: NEGOTIABLE
Packaging Details: nude
Delivery Time: 40 worker days
Payment Terms: L/C,T/T
Supply Ability: 500 units/month
Contact Now
Detailed Product Description
Model NO.: Shacman F3000 6*4 DUMP TRUCK Horsepower: 380hp
Steering: Left/Right Hand Driving Drive Wheel: 6*4
Traction Type: Zf Air Conditioner: With
Condition: New Drive Seat: Air Suspension Seat
Highlight:

380HP Heavy Duty Dump Truck

,

6X4 Heavy Duty Dump Truck

,

10 Wheels Dump Truck

Shacman F3000 RHD 6X4 380HP 8X4 420HP Cargo Tipper Diesel 10 Wheels Heavy Duty Dump Truck
Product Overview

The SHACMAN F3000 Dump Truck is engineered for demanding operations in construction, mining, and long-haul transport. Featuring a robust 400HP powertrain, reinforced structure, and adaptable loading capacity, this truck delivers exceptional performance for heavy-duty applications.

Technical Specifications
  • Brand: SHACMAN
  • Model: F3000 Dump Truck
  • Drive Type: 6×4
  • Engine: Weichai WP10 / 400 HP, Euro II/III standard
  • Transmission: Fast 10- or 12-speed manual gearbox
  • Clutch: Single dry plate, 430 mm
  • Axle: 7.5T front, 16T rear, hub reduction optional
  • Suspension: Reinforced multi-leaf spring system
  • Frame: Double-layer high-strength steel, 8+8+8 mm
  • Steering: Hydraulic power steering (ZF technology)
  • Brakes: Dual circuit air brake system, ABS optional
  • Fuel Tank: 400 L
Cargo Body
  • Body Type: U-shape or square box
  • Box Dimension: 5600-5800 × 2300 × 1500 mm (customizable)
  • Material: High-strength steel Q345 / NM450
  • Thickness: 8-10 mm bottom, 6-8 mm sides
  • Payload: 25-30 tons
  • Hydraulic System: HYVA lifting cylinder, fast unloading
Dimensions & Performance
  • Overall Dimension: 8614 × 2490 × 3450 mm
  • Wheelbase: 3775 + 1400 mm
  • Curb Weight: 12,500-13,000 kg
  • GVW: 25,000-30,000 kg
  • Top Speed: 80-90 km/h
Key Advantages
  • Robust chassis designed for both off-road and urban conditions
  • Exceptional payload capacity for bulk material transport
  • Reliable engine with superior climbing ability
  • Ideal for road construction, quarrying, and logistics operations
  • Global spare parts availability and comprehensive after-sales support
Frequently Asked Questions
What is the average fuel consumption?

Approximately 36-38 liters per 100 km depending on road conditions and load.

Can the truck body be customized?

Yes, cargo box size and thickness can be modified according to project requirements.

What warranty is provided?

Standard warranty: 1 year or 100,000 km.

Is it suitable for mining operations?

Yes, reinforced axles and durable box material make it suitable for heavy-duty mining tasks.

How long is the delivery time?

Typically 30-40 days after order confirmation.

Shacman F3000 380HP 6X4 10 Wheels Heavy Duty Dump Truck for Mining and Construction 0
