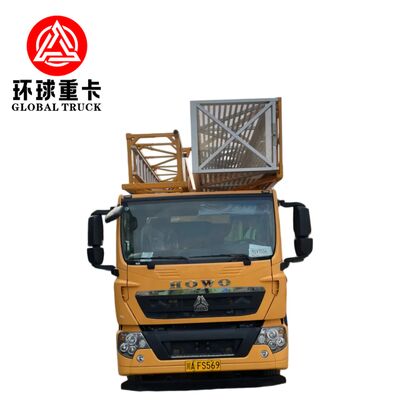

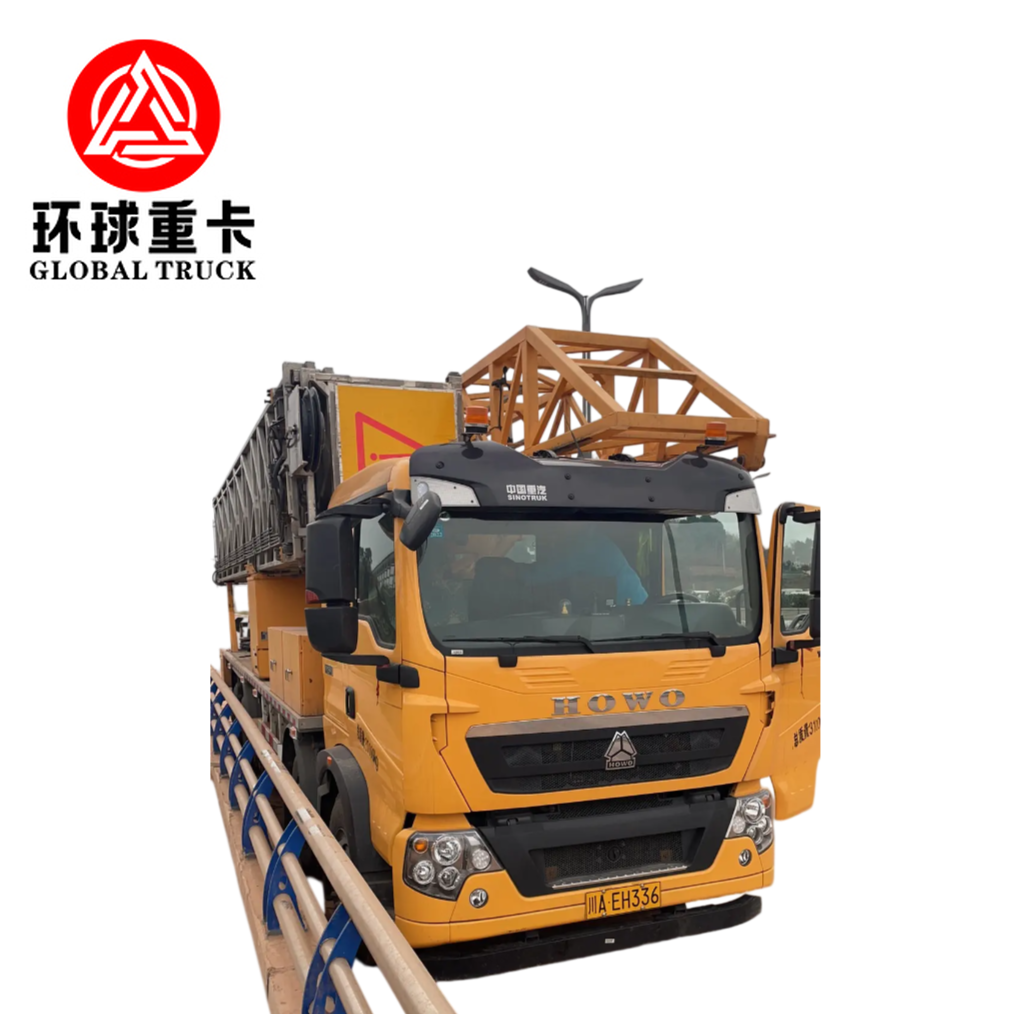

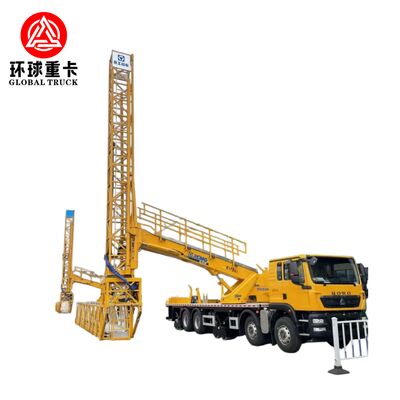

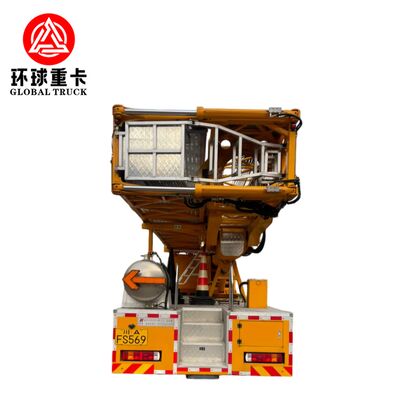

2026 Modern Bridge Inspection Truck with 14m-20m Working Height, Euro 3 Emission Standard, and Hydraulic Under-Bridge System for Precision Engineering

This 2026 under bridge access platform is engineered for construction and maintenance projects in Egypt. It combines a heavy-duty truck chassis with an advanced hydraulic under-bridge working system, delivering safe and efficient access to bridge structures for inspection, repair, and maintenance operations.

• Designed for large-scale construction and infrastructure projects
• Suitable for government and contractor applications
• Adapted to high temperature and dusty environments
• Ideal for bridge construction, inspection, and maintenance
• Cost-effective alternative to imported European equipment

• Type: Heavy-duty truck chassis (HOWO optional)
• Drive Type: 4x2 / 6x4 (6x4 recommended)
• Engine Power: 336-420 HP
• Transmission: 10-speed / 12-speed manual
• Fuel Type: Diesel
• Steering: Left-hand drive
• Suitable for long-distance and desert road operation

• Working Height: 14m - 20m
• Horizontal Reach: up to 12m
• Lowering Depth: up to 8-10m
• Platform Load Capacity: 250-400 kg
• Platform Type: Suspended working platform
• Boom Type: Telescopic or folding
• Rotation: Optional 180° / 360°

• Electro-hydraulic proportional control
• Smooth and stable operation
• Overload protection system
• Oil cooling system for continuous operation
• Designed for high-temperature environments

• Dual control (platform + ground)
• Optional wireless remote control
• Emergency stop function
• Safety interlock system
• Simple and user-friendly interface

• Suitable for desert and high-temperature conditions
• Strong chassis for long-distance and heavy-duty work
• Stable working platform for safe operation
• Easy maintenance with standard components
• Lower cost compared to European brands
• Proven performance in North Africa and Middle East

This equipment improves construction efficiency by:

• Providing fast access under bridge structures
• Reducing need for scaffolding
• Increasing work safety
• Reducing labor and time cost
• Supporting continuous construction operations

• Bridge construction projects
• Highway maintenance and inspection
• Urban infrastructure projects (Cairo, Alexandria)
• Railway bridge maintenance
• Government engineering projects

• Hydraulic outriggers with automatic leveling
• Anti-overturning protection system
• Emergency lowering system
• Load limit protection
• Anti-slip platform with guardrails
• Multi-level safety interlock system
